ZONCN 380v 110KW 160KW 200KW Variador De Frecuencia VFD Inverter For Fan And Pump
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
7-30 days
Brand:
ZONCN
Product Description
ZONCN Z2000 Series General Purpose Frequency Inverter
Company Introduction
ZONCN, established in 2006, which is Top 5 inverter manufacturer in China. ZONCN focus on producing inverter and servo products with 19 years of experience, we currently has 600+ employees, among them, technical personnel account for 20%.So we keep researching and developing different series to upgrading our inverter series, now our main series are NZ100, NZ200, Z2000, Z5000, T8000, T9000, etc., they are widely used in all kinds of industrial applications.
What's more, ZONCN is the most famous brand which used in air compressor in China.
ZONCN will always dedicate in the field of VFD and warmly welcome you to be our partner.
Specification
| Model | Rated Output Power(kW) | Rated Input Current(A) | Rated Output Current(A) | Motor Equipped(kW) |
| Input Voltage:3PH AC 380V±15% | ||||
| Z2400-0R75G | 0.75 | 3.8 | 2.5 | 0.75 |
| Z2400-1R5G | 1.5 | 5 | 3.7 | 1.5 |
| Z2400-2R2G | 2.2 | 5.8 | 5 | 2.2 |
| Z2400-3R7G/5R5P | 3.7/5.5 | 10/15.0 | 9/13 | 3.7/5.5 |
| Z2400-5R5G | 5.5 | 15 | 13 | 5.5 |
| Z2400-7R5G/11P | 7.5/11 | 20/26 | 17/25 | 7.5/11 |
| Z2400-11G/15P | 11/15 | 26/35 | 25/32 | 11/15 |
| Z2400-15G/18.5P | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| Z2400-18.5G/22P | 18.5/22 | 38/46 | 37/45 | 18.5/22 |
| Z2400-22G/30P | 22/30 | 46/62 | 45/60 | 22/30 |
| Z2400-30G/37P | 30/37 | 62/76 | 60/75 | 30/37 |
| Z2400-37G/45P | 37/45 | 76/90 | 75/90 | 37/45 |
| Z2400-45G/55P | 45/55 | 90/105 | 90/110 | 45/55 |
| Z2400-55G | 55 | 105 | 110 | 55 |
| Z2400-75G/90P | 75/90 | 140/160 | 150/176 | 75/90 |
| Z2400-90G/110P | 90/110 | 160/210 | 176/210 | 90/110 |
| Z2400-110G/132P | 110/132 | 210/240 | 210/253 | 110/132 |
| Z2400-132G/160P | 132/160 | 240/290 | 253/300 | 132/160 |
| Z2400-160G/185P | 160/185 | 290/330 | 300/340 | 160/185 |
| Z2400-185G/200P | 185/200 | 330/370 | 340/380 | 185/200 |
| Z2400-200G/220P | 200/220 | 370/410 | 380/420 | 200/220 |
| … | ||||
Packing

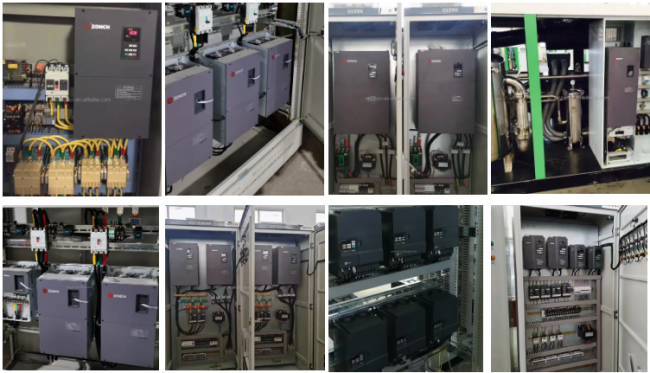

Application

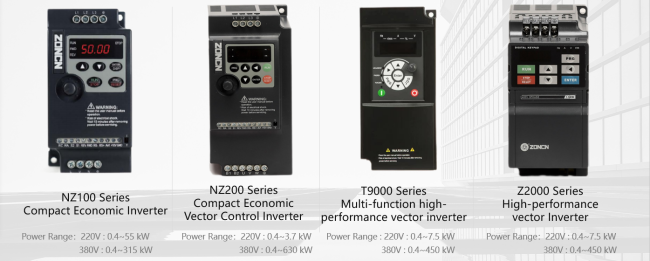

Inverter Recommendation
