ZONCN Inverter Low Frequency NZ100 Series 1.5KW 220v Vfd
NZ100-1R5G-2 1.5kw variable frequency inverters vfd
NZ100 inverter's Specification
| VFD Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||
In modern industrial production, speed control is the key to ensure production efficiency and product quality. The ZONCN drives are designed to meet this demand and are specifically tailored for factory users to provide unmatched speed control solutions.ZONCN inverter uses advanced vector control technology to ensure accurate motor speed regulation. No matter how complex your production needs are, our drives provide a stable, smooth speed output that guarantees the continuity of the production process and the high quality of the product.
VFD inverter's Dimension
VFD inverter's Wiring Diagram

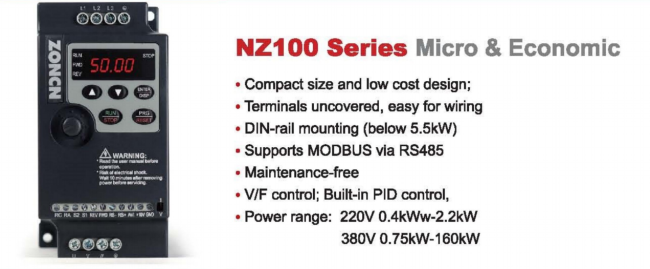

NZ100 VFD inverter Features
Micro drive ; Low cost
Adjustable V/f control, Built-in PID control, output frequency range 0.1-400Hz
Compact size, spave saving
DIN rail mounting and wall mounting
Easy wiring, terminals uncovered
Standard communication protocol, Modbus RTU , RS 485
