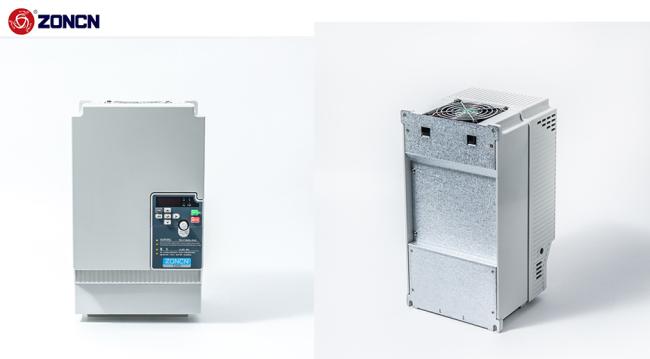

ZONCN 22KW 380V Low Voltage Frequency Drives Inverter Ac Converter
T200 Series VFD Frequency Inverter AC Drives 7.5KW
Basic product introduction:
· Economically affordable; Micro compact design
· Easy to use and install: DIN rail installation(below 3.7kW), keyboard cablewith RJ45,STo function (support 380V below15kW), built-in EMC filter, 24VDCpower supply, PlD adjustment.
· V/F control, open-loop vector control, closed-loop vector control mode
· Power range 0.4-55KW(above 75kW under developing)
· Supportingmultiple expansion cards: EtherCAT, Profibus-DP, ProfiNet,ModbusTCP, CAN open, Digital l/0, PG card
· External keyboard parameter copying function
Frequency inverter specifications:
| Model | Input voltage | Rated output power(kw) | Rated input current(A) | Rated output current(A) | Motor power(kw) |
| T200-0R4G-2 | AC 1PH 220V± 15% | 0.4 | 5.4 | 2.5 | 0.4 |
| T200-0R75G-2 | 0.75 | 7.2 | 5.0 | 0.75 | |
| T200-1R5G-2 | 1.5 | 10.0 | 7.0 | 1.5 | |
| T200-2R2G-2 | 2.2 | 16.0 | 11.0 | 2.2 | |
| T200-0R4G-4 | AC 3PH 380V±15% | 0.4 | 3.4 | 1.2 | 0.4 |
| T200-0R75G-4 | 0.75 | 3.8 | 2.5 | 0.75 | |
| T200-1R5G-4 | 1.5 | 5.0 | 3.7 | 1.5 | |
| T200-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| T200-3R0G-4 | 3.0 | 8.5 | 7.0 | 3.0 | |
| T200-3R7G/5R5P-4 | 3.7/5.5 | 10/15 | 9/13 | 3.7/5.5 | |
| T200-5R5G/7R5P-4 | 5.5/7.5 | 15/20 | 13/17 | 5.5/7.5 | |
| T200-7R5G/11P-4 | 7.5/11 | 20/26 | 17/25 | 7.5/11 | |
| T200-11G/15P-4 | 11/15 | 26/35 | 25/32 | 11/15 | |
| T200-15G/18.5P-4 | 15/18.5 | 35/38 | 32/37 | 15/18.5 | |
| T200-18.5G/22P-4 | 18.5/22 | 38/46 | 37/45 | 18.5/22 | |
| T200-22G/30P-4 | 22/30 | 46/62 | 45/60 | 22/30 | |
| T200-30G/37P-4 | 30/37 | 62/76 | 60/75 | 30/37 | |
| T200-37G/45P-4 | 37/45 | 76/90 | 75/90 | 37/45 | |
| T200-45G/55P-4 | 45/55 | 92/113 | 90/110 | 45/55 | |
| T200-55G/75P-4 | 55/75 | 113/157 | 110/152 | 55/75 |
T200 series expansion card selection:
| No. | Expansion card model | PCB internal model number | Function description | Applicable model |
| 1 | PG-T11-01 | T11PG01 | ABZ_ Differential input PG card _5V | T200-0.4-55 kw |
| 2 | PG-T11-02 | T11PG02 | ABZ_OC& Push-pull input PG card _24V | |
| 3 | ET-T11-01 | T11JK01 | 1 normally open normally closed relay 2 DL_1 FIV_1 FOC | |
| 4 | ET-T11-02 | T11JK02 | 1 high speed pulse output _2 DI_1 FIV_1 FOC | |
| 5 | CM-T11-01 | T11CM01 | ProfibusDP communication card | |
| 6 | CM-T11-02 | T11CM02 | Ethercat communication card | |
| 7 | CM-T11-03 | T11CM03 | CAN communication card | |
| 8 | CM-T11-04 | T11CM04 | Modbus TCP communication card | |
| 9 | CM-T11-05 | T11CM05 | Profinet communication card | |
| Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time. | ||||

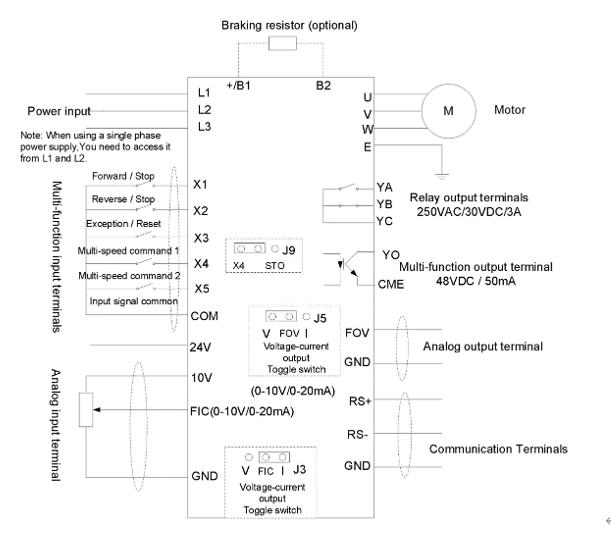

T200 series product circuit diagram:
FAQ:
Q1:What is your MOQ?
A: 1 pc
Q2:What's your terms of payment?
A:T/T 100% before delivery.
Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.
Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
