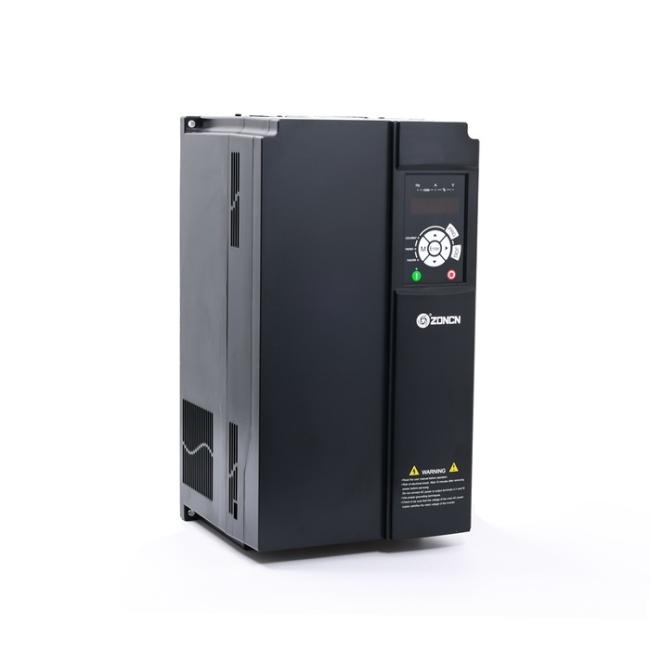

380V 3 Phase Variable Frequency Drive 37KW AC Drive Low Voltage Inverter Motor Special For Elevators & Lifts VFD
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
7-30 work days
Brand:
ZONCN INVERTER
Product Description
Variable Frequency Drive 37kw AC Drive Low Voltage Inverter

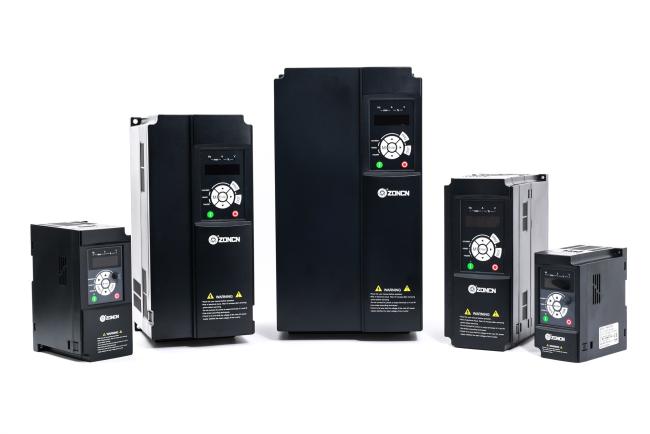

T9000 Series Advanced Vector Control Inverter Product Introduction
The T9000 Series Advanced Vector Control Inverter is a cutting-edge solution designed to meet diverse industrial motor control needs. It offers open loop/closed loop vector control and VF control with a built-in PID function, providing seamless operation for both synchronous and asynchronous motors.
With its remarkable ability to deliver large torque output, this inverter ensures motors can start smoothly even under heavy loads, minimizing startup stress and enhancing system reliability. Its powerful functionality and outstanding performance make it suitable for a wide range of general industrial applications, from manufacturing lines to conveyor systems.
The T9000 Series supports multiple types of PG cards, enabling flexible system configurations. It also features instant stop and instant start capabilities, improving operational efficiency and safety. Its compact structure simplifies installation, saving valuable space in control cabinets and reducing setup time.
Available in a broad power range, the inverter caters to various power requirements. For 220V systems, it covers 0.4 - 3.7KW, while for 380V systems, the range extends from 0.4 - 450kW. Whether you need to optimize motor performance, enhance system stability, or streamline installation, the T9000 Series Advanced Vector Control Inverter is your ideal choice for reliable and efficient operation.
T9000 Series VFD Technical specification:
| Item | Description | |||
| Basic function | Control Mode | VF control | ||
| Sensorless flux vector control(SVC) | ||||
| Close-loop vector control(FVC)(Above 3.7kW) | ||||
| Maximum frequency | 0~600Hz | |||
| Carrier frequency | 0.5kHZ——8kHz | |||
| The carrier frequency is automatically adjusted based on the load features | ||||
| Input frequency resolution | Digital setting:0.01Hz | |||
| Analog setting: Maximum frequency x 0.025% | ||||
| Start torque | G Type:0.5Hz/150%(SVC) | |||
| P Type:0.5Hz/100% | ||||
| Speed range | 1:100 (SVC) | |||
| Speed stability accuracy | ±0.5%(SVC) | |||
| Overload capacity | G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current. | |||
| Torque boost | Auto-boost ; | |||
| Customized boost: 0.1%~30.0% | ||||
| V/F Curve | Straight-line V/F curve | |||
| Multi-point V/F curve | ||||
| N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square) | ||||
| V/F separation | 2 types: complete separation; half separation | |||
| Ramp Mode | Straight-line ramp. | |||
| Four groups of acceleration/deceleration time with the range of 0.00`6500.0s | ||||
| DC braking | DC braking frequency:0.00Hz~Maximum frequency | |||
| Braking time:0.0s~36.0s | ||||
| Braking action current value:0.0%~100.0% | ||||
| JOG control | JOG frequency range:0.00Hz~50.00Hz | |||
| JOG acceleration/deceleration time: 0.0s~6500.0s. | ||||
| Simple PLC,Multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of terminal states | |||
| Onboard PID | It realizes process-controlled closed loop control system easily | |||
| Auto voltage regulation(AVR) | It can keep constant output voltage automatically when the mains voltage | |||
| Overvoltage/overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current | |||
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive. | |||
| Torque limit and control | It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be | |||
| implemented in the FVC mode. | ||||
| Support for multiple PG card | Support for differential input PG card, resolver PG card ,rotating transformer PG card | |||
