3.5-inch TFT LCD Display 320 * 240 High Brightness 1000nits 54pin for Outdoor Applications
Product Description:

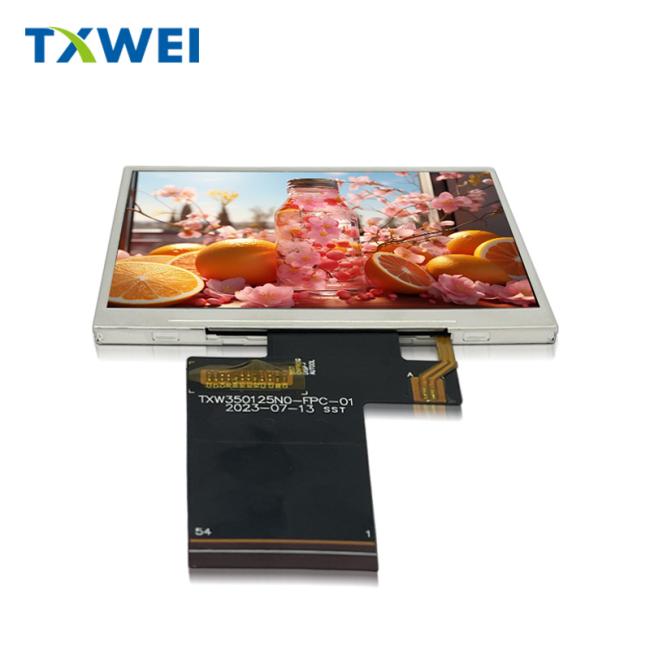

TXW350125N0 is a 3.5-inch 4:3 ratio full-color TFT LCD display with a resolution of up to 320 * 240, IPS full view high-definition high brightness car standard, working temperature: -30+85, storage temperature -40+90, display brightness of 1000cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in outdoor high brightness equipment display, engineering vehicle instrument display, lawn mower display, motorcycle instrument display, refrigeration monitoring equipment display, access control and security display, medical equipment display, etc.
The display size is 3.5 inches, making it a compact yet powerful addition to your project. The Mechanical Outline Size(W*H*T) measures 76.66*63.62*3.25mm, allowing for easy installation and integration with your existing setup. The Active Area measures 70.08*52.56, providing ample screen space for all your needs.
With its high brightness and excellent color reproduction, this TFT display is perfect for a variety of applications ranging from automotive displays to multimedia systems. Its small size and easy integration make it a versatile choice for any project requiring a high-quality display.
Features:
- Product Name: TFT LCD Display
- Viewing direction: ALL O’CLOCK
- Operating temperature: -30+85
- LCM Driver IC: ST7272A
- Backlight current: 60mA
- Size: 3.5 inches
- Used in Engineering vehicle instrument TFT LCD Monitor
- High Brightness TFT Display
- Used in lawn mower TFT LCD Display
Technical Parameters:
| Product Attribute | Value |
| Active area | 70.08*52.56 |
| Drive element | TFT Active Matrix |
| Mechanical OutlineSize(W*H*T) | 76.66*63.62*3.25mm |
| Operating temperature | -30+85 |
| Viewing direction | ALL O’CLOCK |
| Pixel Pitch (W*H) | 0.073*0.219 |
| LCM Driver IC | ST7272A |
| LCM pin n count | 54pin |
| Lumens degrees | 1000cd/m² |
| LCM interface | RGB Interface |
Applications:
This High Brightness TFT Display is ideal for use in various applications such as car TFT LCD monitors, HDMI TFT LCD Displays, and other similar devices. It has a minimum order quantity of 1 and comes packaged in cardboard, making it easy to transport and store. The delivery time for this product is 16 days, and with a supply ability of 10000pcs, you can be assured of a reliable and steady supply.
The TXW350125N0 model has a backlight current of 60mA, which ensures that it produces bright and clear images. It features a 54pin LCM pin n count and is powered by the ST7272A LCM Driver IC. Its Mechanical Outline Size(W*H*T) is 76.66*63.62*3.25mm, making it compact and easy to install. Moreover, its viewing direction is ALL O’CLOCK, making it highly versatile and flexible in terms of placement and viewing angles.
Support and Services:
Our TFT LCD Display product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians can assist with installation, configuration, and troubleshooting of the product. We also offer regular software and firmware updates to ensure compatibility with the latest technologies.
In addition, we provide a warranty for our TFT LCD Display product and offer repair and replacement services for any defects or damages. Our customer service team is available to answer any questions or concerns regarding the product and its usage.
Overall, we strive to provide high-quality technical support and services to ensure the best possible experience for our customers.
