40mm Thickness Polyurethane Foamed Wind-Resistant Sectional Garage Door with Pedestrian Access
Price:
500
MOQ:
1
Delivery Time:
Negotiable
Product Description
40mm Thickness Polyurethane Foamed Sectional Garage Doors with Pedestrian Door
Sectional door designed for factory and hangar applications, featuring easy operation, wind resistance, and thermal insulation properties.
What Are Sectional Rolling Shutter Doors?
Sectional roller shutter doors consist of wide panels that can be customized with windows or steel sections. When retracted, these doors roll up and lie flat against the ceiling, making them suitable for almost any installation condition.
Insulated Sectional Doors Construction
Our industrial sectional doors feature double-layer sandwich hot-dip galvanized steel panels with surface polyurethane processing. The core material is polyurethane insulation with a thickness of 40mm. The door body includes box-shaped edge banding with connecting hinges mounted on the edge banding for embedded track installation.
Sealing system includes top and bottom sealing strips and lateral sealing strips made of spherical vinyl resin along the width and height of the door to prevent wind, rain, and penetration. The balance system consists of torsion spring, reel, steel shaft, and locking flange with steel-wrapped wheels and steel cable breaking device.
Product Specifications
Motor Transmission System
- Industrial door specialized motor with reduction gear, three-phase asynchronous motor, brake system, and manual operation mechanism
- Axle drive system reduces secondary transmission for stable and reliable operation
- Manual chain mechanism for operation during power failure
Control System
- Digital signal processing chip with full isolation circuit standard
- Advanced phase sequence protection and overcurrent protection
- Blue screen LCD display showing default, running, and status codes
- Fourth generation whole-course absolute value limit technology
- Vector frequency conversion for constant torque output and mechanical protection
- Multiple reserved ports for interlock, remote control, infrared security, and radar induction
Door Plate Specifications
- Double-layer hot dip galvanized embossed anticorrosive coated steel plate
- Polyurethane density: 46kg/m³, thickness: 40mm
- Sealing strips at each joint for optimal sealing
- Single layer steel sheet thickness: 0.4mm
- Anti-flaming polyurethane material without Freon
| Parameter | Value |
|---|---|
| Thermal conductivity | 0.38 W/m·c |
| Acoustic insulation | 24dB (DIN52210) |
| Fire resistance | B2 (DIN4102) |
| Wind resistance coefficient | Standard wind load 450N/m² |
Rail System
High-quality anticorrosive metal guide rail system with 2mm thickness rail and rail bracket. Multiple lifting options available including vertical lift standard hoist, high lintel lift, and bottom lintel lift to optimize building space.
Torsion Spring System
Balances door weight with spring force. System includes pivot, spring set, galvanized torsion spring (30,000+ life cycles), rope wheel, and coupling.
Safety Systems
- Torsion spring break-proof system: Locks axle immediately if spring breaks
- Wire rope anti-break device: Self-locks within 5cm if wire rope breaks
- Safety pressure switch: Door bounces up instantly if pressing on objects
- Safety infrared ray counter switch: Prevents closing if obstacles detected
Sealing System
Bottom sealing strip made of ethylene-polypropylene adhesive material with anti-low temperature and anti-fracture properties. Complete sealing assembly around door prevents rain, dust, sound, and heat penetration.
Operation Mode & Components
Obstacle Sensing Device
Torsion Spring
Spring Break Protection Device
Galvanized Steel Track
Top Seal
Bottom Sealing Strip

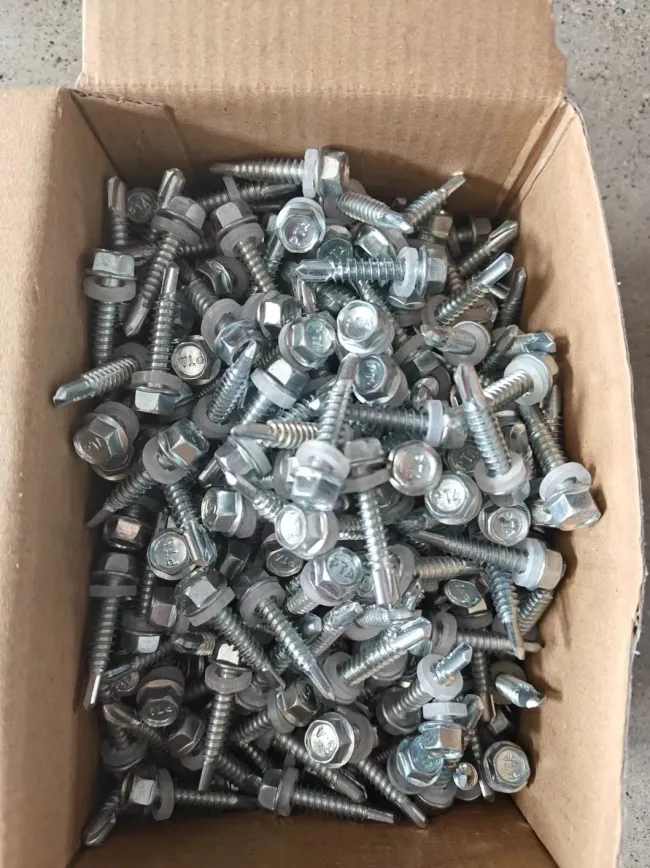

Hardware
Installation Overview
Mechanism Detail
Complete System
Frequently Asked Questions
What is the minimum order quantity for the product?
There is no minimum order quantity for our products. We recommend using wooden crates for protection during shipping.
What are the sizes and application scenarios of various products in your factory?
We provide professional suggestions and drawings based on customer needs to deliver the best solutions.
Can I get industrial door samples for quality checking?
Yes, samples are available.
How do I get a price for the product I need?
Please provide the exact size and quantity requirements. We will provide a detailed quotation plan according to your specifications.
What payment terms will you accept?
We typically accept T/T (Telegraphic Transfer).
We would like to be your agent in our area. How to apply for this?
We welcome agent partnerships. Please send your ideas, company or personal information via email to discuss collaboration opportunities.
Can you send me the price list?
Yes, since our products are custom-sized, we can provide quotations for regular sizes based on your requirements.
Is it convenient to visit your factory?
Yes, our factory is only 2.5 hours drive from Shanghai Airport. We welcome visitors to our facility and offer local hospitality.
