Type Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 Mining Power Cable
Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 Mining Power Cable
Mining environments demand highly durable and reliable power cables that can withstand extreme conditions while ensuring safety and uninterrupted operation. The Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 Mining Power Cable is designed to meet these demands.
It is a high-voltage, flame-resistant cable that excels in harsh mining environments, providing a robust solution for power distribution and transmission.
This article will explore the specifications, structure, and applications of the Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6, emphasizing its unique design elements that make it ideal for mining power distribution in both surface and underground operations.
Cable Structure and Composition
The Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 is built to handle harsh mining conditions, from extreme temperatures to high mechanical stress.
The core structure of this cable is what makes it a standout product for mining applications:
| Cable Component | Description |
|---|---|
| Main Conductors | 3 copper conductors, each with a cross-section of 150 mm². These conductors are designed to handle high power loads and are built according to GOST 22483 standards, ensuring superior electrical conductivity. |
| Additional Conductor | A 10 mm² copper conductor for auxiliary power transmission, providing flexibility in power distribution. |
| Ground Conductor | A 50 mm² copper conductor for grounding, essential for safety in electrical circuits, ensuring protection from electrical faults. |
| Thermal Barrier | A dual-layer of glass-mica tape, providing high-temperature resistance and fire protection. |
| Insulation Layer | The insulation is made from cold-resistant PVC polymer plasticate, which ensures that the cable can operate effectively in temperatures as low as -50°C. |
| Shielding | The main conductors are shielded by conductive non-woven fabric and copper tapes, protecting the cable from electromagnetic interference (EMI) and ensuring safe operation in electrically noisy environments. |
| Armoring | Two layers of galvanized steel tape provide mechanical protection from external impacts, ensuring durability in rugged environments like mines. |
| Outer Sheath | A flame-resistant PVC sheath, designed to withstand fire conditions for up to 180 minutes, ensuring continued operation during emergencies. |
Cable Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 6 kV (main conductors) |
| Auxiliary Voltage | 0.38 kV (auxiliary conductor) |
| Operating Temperature | -50°C to +60°C |
| Humidity Resistance | Up to 98% at +35°C |
| Fire Resistance | 180 minutes |
| Bend Radius | Minimum of 12 cable diameters |
| Lifespan | 25 years |
These specifications highlight the cable's capacity to perform under extreme conditions, including high voltage, temperature fluctuations, and mechanical stress, making it ideal for mining applications.
Key Features of the Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6
High Voltage Capacity
The КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 is designed to carry high voltages, up to 6 kV, through its main conductors. This makes it suitable for large-scale mining operations where substantial power is needed to operate heavy machinery and equipment.
Its auxiliary conductor, rated for 0.38 kV, provides additional flexibility for controlling auxiliary systems.
Cold Resistance and Durability
Built with a cold-resistant PVC outer sheath, this cable can function in temperatures as low as -50°C, making it particularly suitable for Russian mines and other cold environments.
The steel armoring ensures that it can handle mechanical impacts, such as crushing and bending, which are common in underground mines.
Flame Resistance
Safety is paramount in mining operations, especially in underground environments where fires can have catastrophic consequences. The КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 is equipped with a flame-resistant outer sheath that allows the cable to remain operational for up to 180 minutes in fire conditions.
This gives operators crucial time to address emergencies and ensures that critical systems remain functional during a crisis.
Long Service Life
With a lifespan of at least 25 years, this cable provides long-term reliability and reduces the need for frequent replacements.
Its robust construction ensures that it can withstand the wear and tear of daily mining operations, offering a dependable solution for power distribution.
Applications of the Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6
This mining power cable is designed for use in a variety of challenging environments:
| Application | Description |
|---|---|

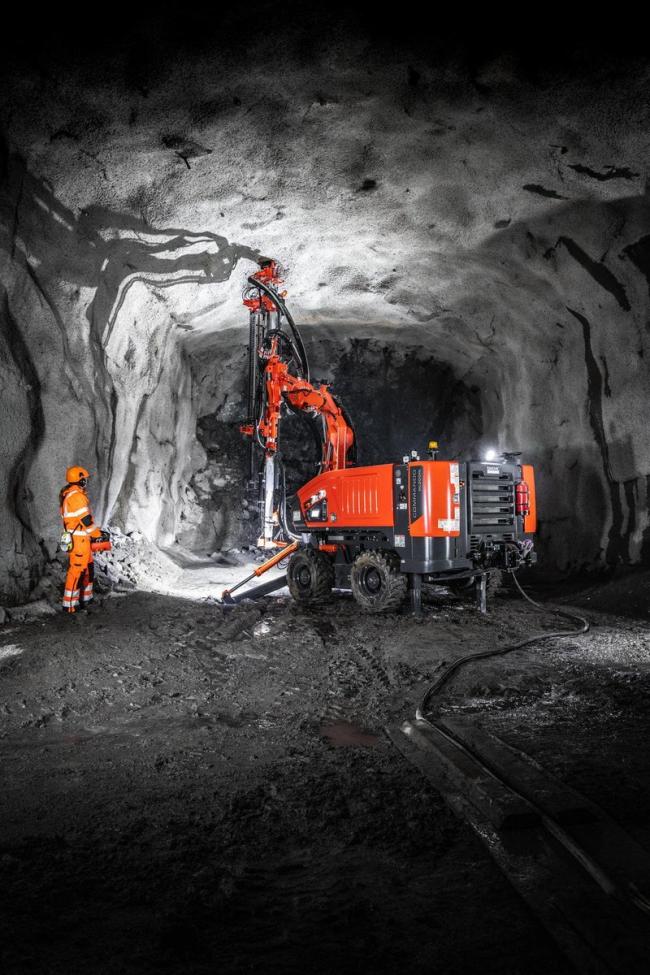

| Underground Mining | The КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 is ideal for underground mining operations, where harsh conditions demand cables with high durability and resistance to mechanical stress. The flame-resistant sheath is essential for ensuring safety in enclosed spaces. |
| Surface Mining | In surface mining, this cable's ability to withstand temperature extremes and its heavy-duty armoring make it suitable for powering large-scale mining equipment. |
| Power Distribution in Mines | This cable is designed to distribute power to critical equipment, ensuring the continuous operation of machinery like crushers, conveyors, and drilling equipment. |
| Outdoor Use | The cable's durability and resistance to weather conditions, including extreme cold, make it suitable for outdoor use in mining operations and other industrial applications. |
Compliance with Standards
This cable meets several important standards for safety and performance, making it a trusted choice for mining operators:
GOST-R standard for Russian markets, ensuring compliance with local regulations and safety requirements.
Flame resistance according to GOST 31565, offering 180 minutes of fire protection.
Cold resistance, allowing operation in temperatures as low as -50°C, ideal for cold regions like Siberia.
High voltage operation, rated for 6 kV, suitable for large power transmission needs.
Customization Options
At Feichun Cable, we understand that mining operations vary greatly in different regions and environments. That’s why we offer custom cable manufacturing to meet the specific needs of our clients.
The КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 can be customized in terms of:
Cable length to suit specific installations.
Conductor sizes for unique power transmission requirements.
Outer sheath materials, depending on environmental conditions and safety requirements.
Why Choose Feichun Cable?
Feichun Cable has a strong reputation in the mining industry for providing durable, reliable, and safe cable solutions.
We combine cutting-edge technology with an understanding of local environmental and regulatory needs, especially in regions like Russia, Australia, and South America. Our cables are designed not only to meet international standards but to excel in the harshest conditions.
The Кабель КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 Mining Power Cable is a powerful and reliable solution for mining operations in demanding environments.
With its high voltage capacity, flame resistance, and durability, this cable provides peace of mind for mining operators who require consistent, safe, and long-lasting power distribution.
If you are looking for a robust and adaptable power cable for your mining operations, the КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 is the ideal choice. Contact us today to learn more about customization options and how Feichun Cable can meet your specific needs.
Frequently Asked Questions (FAQ)
What is the operating temperature range for the КВЭБШв(у)нг(A)-FRЛx 3х150+1х10+1х50-6 cable?
The cable can operate in temperatures ranging from -50°C to +60°C, making it suitable for extreme environments.
How flame-resistant is this cable?
The cable offers flame resistance for up to 180 minutes, ensuring continued operation during fire emergencies.
Can this cable be customized for specific applications?
Yes, Feichun Cable offers custom cable solutions tailored to specific mining and industrial needs, including conductor sizes and outer sheath materials.
What voltage is this cable rated for?
The main conductors are rated for 6 kV, while the auxiliary conductor is rated for 0.38 kV.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
