Type 241 Mining Cable: A Powerhouse for Underground and Surface Mining

In the demanding world of mining, reliability and safety are paramount. When it comes to providing power in the harsh environments of underground and surface mining, the Type 241 Mining Cable stands out as a robust solution.

Specifically designed to handle voltage levels from 1.1kV to 11kV, this cable is a workhorse, ensuring that power is delivered efficiently and safely across a wide range of mining applications.

Overview of Type 241 Mining Cable

The Type 241 Mining Cable is available in various specifications tailored to meet the unique needs of different mining operations.

The primary variations of this cable are:

Type 241.1: Rated for 1.1kV.

Type 241.3: Rated for 3.3kV.

Type 241.6: Rated for 6.6kV.

Type 241.11: Rated for 11kV.

Each type is engineered to provide optimal performance within its designated voltage range, ensuring that mining operations remain uninterrupted, even in the most challenging conditions.

Key Features and Benefits

High Voltage Capacity:

The Type 241 cable's versatility across multiple voltage ratings makes it a flexible choice for mining operations. Whether you need to power equipment at 1.1kV or require the higher voltage of 11kV, this cable series has you covered.

The ability to handle such a broad range of voltages makes it suitable for both low and high-power applications.

Durability and Strength:

Mining environments are notorious for their harsh conditions, including extreme temperatures, abrasion, and mechanical stress.

The Type 241 Mining Cable is designed to withstand these challenges. Its rugged construction includes a tough outer sheath that provides excellent resistance to wear and tear, ensuring a long service life even under continuous use in the field.

Safety First:

Safety is a top priority in mining, and the Type 241 Mining Cable is built with this in mind. The cable's design incorporates multiple layers of insulation and robust shielding, reducing the risk of electrical faults that could lead to dangerous situations.

Additionally, the cable's construction helps prevent accidental crushing or damage, which is critical in the often chaotic environment of a mine.

Flexibility and Handling:

Despite its strength and durability, the Type 241 cable remains flexible enough to be easily handled during installation and maintenance.

This flexibility reduces the time and labor required to deploy the cable, making it a cost-effective choice for mining operations.

Application Scenarios

The Type 241 Mining Cable is suitable for a wide range of applications in both underground and surface mining. Its adaptability across different voltage levels makes it ideal for:

Powering Drills and Excavators: These machines require reliable power to operate efficiently, and the Type 241.1 or Type 241.3 cables can provide the necessary voltage.

Feeding Power to Conveyor Systems: Conveyor belts are the lifeblood of mining operations, transporting materials over long distances. The Type 241.6 cable, with its higher voltage rating, is perfect for ensuring these systems run smoothly.

Supplying Power to Substations: In larger mining operations, substations are crucial for managing power distribution. The Type 241.11 cable is ideal for delivering high voltage to these critical points.

Why Choose Type 241 Mining Cable?

Reliability in Harsh Conditions: The mining environment is one of the toughest on earth, with cables often subjected to extreme conditions.

The Type 241 Mining Cable is designed to perform reliably in these environments, offering peace of mind that your operation will not be disrupted by cable failure.

Versatility Across Applications: With its range of voltage ratings, the Type 241 cable can be used in a variety of applications, from powering small equipment to providing the main power supply in large mining operations.

This versatility reduces the need for multiple types of cables, simplifying inventory and reducing costs.

Compliance with Standards: The Type 241 Mining Cable complies with stringent industry standards, ensuring it meets the safety and performance requirements necessary for mining operations.

This compliance is critical for ensuring that the cable can be used in various jurisdictions without the need for additional certifications or approvals.

Applications



Type 241 1.1 to 11kV Mining Cable is suitable for a wide range of mining applications, including conveyor systems, crushers, drills, pumps, and ventilation fans. It is commonly used in both underground and surface mining operations for powering equipment and transmitting control signals.



These Type 241 1.1 to 11kV Mining cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.



Standards:

AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

SPECIFICATIONS

Low Voltage

Medium Voltage

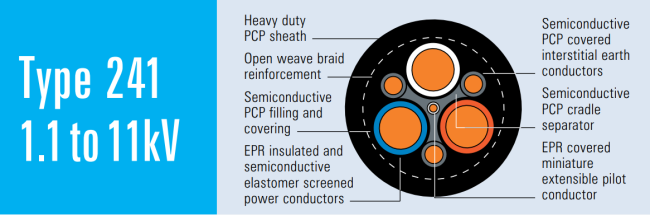

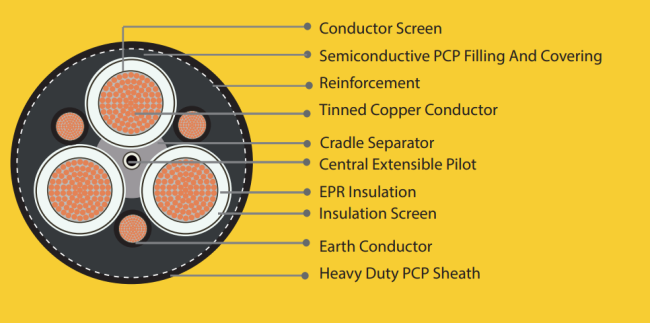

CONSTRUCTION

3×Conductors:

Flexible stranded tinned annealed copper conductor.

Conductor Screen:

1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

Insulation:

EPR.

Insulation Screen:

Semiconductive tape.

Cradle Separator:

Semiconductive PCP.

Overall Core Screen:

Semiconductive PCP filling and covering.

3×Interstitial Earth Conductor:

Semiconductive PCP insulated flexible stranded tinned copper conductor.

1×Central Extensible Pilot:

EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement:

Open-weave braid reinforcement.

Sheath:

Heavy duty PCP sheath.

Conclusion

When it comes to powering mining operations, the Type 241 Mining Cable is a top choice. Its ability to handle a wide range of voltages, coupled with its durability and safety features, makes it an essential component in both underground and surface mining.

Whether you're operating at 1.1kV or 11kV, the Type 241 cable provides the reliability and performance needed to keep your mining operations running smoothly.

Investing in the Type 241 Mining Cable means investing in a cable that is meticulously engineered to meet the demands of modern mining. With its superior construction and versatile applications, it's a cable that you can rely on, no matter the challenge.

If you're looking for a cable that offers high performance, durability, and safety, the Type 241 Mining Cable is the perfect solution. Contact us today to learn more about how this cable can benefit your mining operation and ensure a reliable power supply in even the most demanding environments.
