Comprehensive Analysis of TROMMELFLEX PUR-HF Type D12Y11YU11Y-J/O Reeling Cable

Introduction

TROMMELFLEX PUR-HF Type D12Y11YU11Y-J/O reeling cable is designed to withstand high mechanical stresses while offering flexibility and reliability.

This cable, featuring plain copper conductors, halogen-free insulation, and polyurethane sheathing, is engineered to meet the demands of dynamic applications.

This analysis provides a detailed examination of its design features, technical specifications, and applications.

Application

The TROMMELFLEX PUR-HF Type D12Y11YU11Y-J/O reeling cable is ideal for use in applications requiring flexibility and durability under high mechanical stresses.

It is well-suited for various industrial settings where continuous movement and frequent bending are common, such as in machinery and equipment used in manufacturing, logistics, and material handling.

Design Features

1. **Conductor**:

- Made of plain copper, ensuring conductivity and flexibility.

- Conforms to flexible Class 5 standards according to DIN EN 60228 / DIN VDE 0295.

2. **Insulation**:

- Halogen-free compound based on polyester provides insulation, reducing the risk of toxic gas emission in case of fire.

3. **Core Identification**:

- Up to 5 cores are colored according to DIN VDE 0293-308 for easy identification.

- Beyond 6 cores, cores are natural-colored with black numbers for identification.

4. **Core Arrangement**:

- Cores are arranged around a central textile carrier unit, twisted with a short length of lay to enhance flexibility.

5. **Inner Sheath**:

- Polyurethane inner sheath, halogen-free and flame-retardant, provides additional protection to the cores.

6. **Reinforcement**:

- Open braiding of support reinforces the cable, enhancing its mechanical strength and durability.

7. **Outer Sheath**:

- Polyurethane outer sheath, halogen-free, flame-retardant, and opaque, provides robust protection against external factors and environmental hazards.

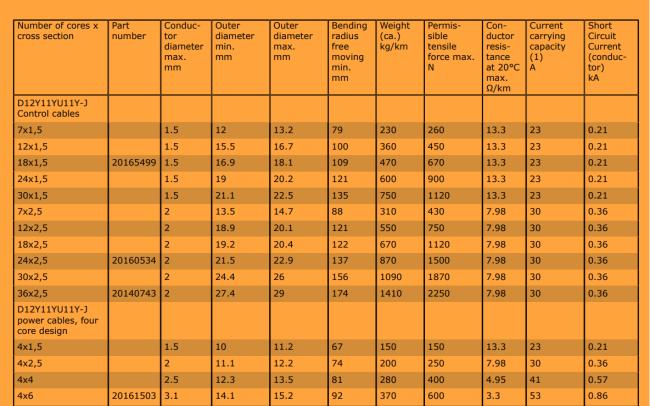

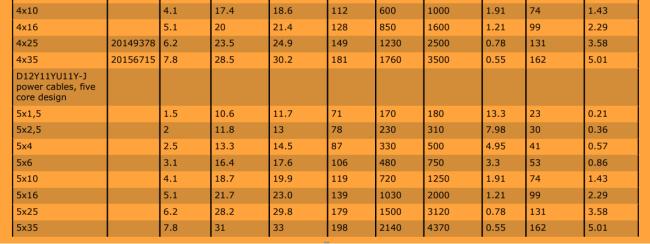

Technical Specifications

- **Voltage Rating**: Low voltage

- **Temperature Range**: Suitable for operation in a wide temperature range, ensuring performance in various environments.

- **Mechanical Stress Handling**: Designed to withstand high mechanical stresses, including bending, twisting, and pulling.

- **Flexibility**: Maintains flexibility under dynamic conditions, allowing for smooth movement without compromising performance.

- **Flame Retardancy**: Halogen-free compounds in both insulation and sheathing provide flame-retardant properties, enhancing safety in case of fire.

The TROMMELFLEX PUR-HF Type D12Y11YU11Y-J/O reeling cable is particularly suited for:

- **Industrial Machinery**: Suitable for use in machinery and equipment where continuous movement and flexibility are required, such as conveyors, cranes, and automated systems.

- **Material Handling Equipment**: Ideal for applications involving material handling and transportation, including conveyor systems, sorting machines, and packaging equipment.

- **Logistics and Warehousing**: Well-suited for use in logistics and warehousing operations, where flexibility and durability are essential for smooth and efficient operations.

- **Manufacturing Processes**: Suitable for use in various manufacturing processes, including automotive, aerospace, and food processing, where reliability and performance are critical.

The TROMMELFLEX PUR-HF Type D12Y11YU11Y-J/O reeling cable offers a reliable and flexible solution for applications requiring durability and flexibility under high mechanical stresses.

Its design features, including plain copper conductors, halogen-free insulation and sheathing, and reinforcement, ensure optimal performance in dynamic environments. Whether in industrial machinery, material handling equipment, or manufacturing processes, this cable provides the necessary reliability and performance to support efficient operations.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
