Type D12YST11YU11Y-JZ SPREADER REEL PUR-HF Reeling Crane Cable

Application

The Type D12YST11YU11Y-JZ SPREADER REEL cable is a flexible low voltage reeling cable designed for high mechanical stress applications. It is particularly suited for vertical reeling operations, commonly used in spreader reeling applications on cranes.

Global Data

- **Brand**: SPREADER REEL

- **Type Designation**: D12YST11YU11Y-JZ

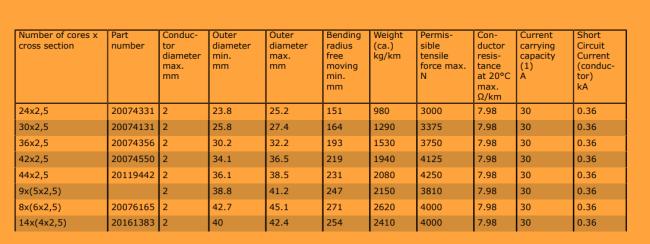

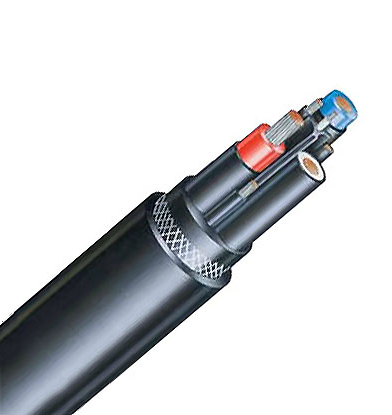

Design Features

- **Conductor**: Plain copper, flexible class 5 according to DIN EN 60228 / DIN VDE 0295.

- **Insulation**: Halogen-free compound, based on polyester.

- **Core Identification**: White with black numbers, similar to HD 308.

- **Core Arrangement**: Central aramid strain element with cores twisted in layers with a short length of lay.

- **Inner Sheath**: Polyurethane, halogen-free, flame retardant.

- **Reinforcement**: Open braid, reinforced.

- **Outer Sheath**: Polyurethane, halogen-free, flame retardant, opaque.

Electrical Parameters

- **Rated Voltage**: 0.6/1 kV (600/1000V).

- **Max. Permissible Operating Voltage AC**: 0.7/1.2 kV.

- **Max. Permissible Operating Voltage DC**: 0.9/1.8 kV.

- **AC Test Voltage**: 4 kV (5 Min).

- **Current Carrying Capacity**: According to DIN VDE 0298-4.

#### Chemical Parameters

- **Resistance to Fire**: Similar to IEC 60332-1.

- **Resistance to Oil**: According to EN 60811-404.

- **Water Resistance**: Suitable for permanent use in water (non-drinking) up to 50 meters diving depth.

#### Thermal Parameters

- **Max. Permissible Temperature at Conductor**: 90°C.

- **Max. Short Circuit Temperature of the Conductor**: 250°C.

- **Ambient Temperature for Fixed Installation**: Minimum -50°C; Maximum +80°C.

- **Ambient Temperature in Fully Flexible Operation**: Minimum -40°C; Maximum +80°C.

#### Mechanical Parameters

- **Max. Tensile Load**: Increased tensile load through additional support elements.

- **Torsional Stress**: ± 50°/m.

- **Min. Bending Radius**: 6 x D (Proved by flexing tests according to HD 22.2 part 3.1).

- **Min. Distance with S-type Directional Changes**: 20 x D.

- **Travel Speed - Vertical Reeling**: Up to 180 m/min.

The Type D12YST11YU11Y-JZ SPREADER REEL cable's robust design makes it ideal for demanding vertical reeling applications in crane operations, offering high flexibility, durability, and resistance to mechanical stress. This ensures reliable performance under challenging operational conditions.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
