Type NSHTÖU 4C16 (6 KN) Underground Mine Scoop Cable for LHDs (Load-Haul-Dump)

Applications

The NSHTÖU 4C16 (6 KN) cable is specially designed for use in underground mining environments, specifically for Load-Haul-Dump (LHD) machines.

These cables are built to handle the demanding conditions of underground mining, providing reliable power to ensure the efficient and safe operation of heavy machinery.

Standards

- **Voltage Rating**: 0.6/1 kV

- **Compliance**: Conforms to international mining cable standards, including VDE (Verband der Elektrotechnik).

4C16(6KN)-NSHTOEU-Underground-Mine-Scoops-LHD-(Loa...

Construction Details

- **Conductor**:
- Flexible stranded tinned copper conductor ensures excellent flexibility and resistance to mechanical stress.

- **Insulation**:
- EPR (Ethylene Propylene Rubber) type 3GI3, known for its superior thermal and electrical properties.

- **Support Element**:
- Central support element designed to enhance the structural integrity of the cable, providing a tensile strength of 6 kN.

- **Inner Sheath**:
- Made of PCP (Polychloroprene) type 5GM5, providing robust mechanical protection.

- **Twist Braid**:
- Polyester wire reinforcement braid, vulcanized and bonded between the inner and outer sheath, increasing the cable's durability.

- **Outer Sheath**:
- Also made of PCP type 5GM5, ensuring excellent resistance to abrasion, impact, oils, and chemicals.

Electrical and Mechanical Characteristics

- **Rated Voltage**: 0.6/1 kV

- **Maximum Operating Voltage (AC)**: 0.7/1.2 kV

- **Maximum Operating Voltage (DC)**: 0.9/1.8 kV

- **Temperature Range**:

- Fixed installation: -30°C to +80°C

- Flexible operation: -25°C to +80°C

- **Minimum Bending Radius**:

- Designed for high flexibility with a small bending radius, essential for constrained spaces in underground mining.

- **Tensile Strength**:

- The central support element provides a tensile strength of 6 kN, enhancing durability under mechanical stresses.

Key Benefits

- **Enhanced Flexibility**:

- The finely stranded tinned copper conductors and the specialized rubber sheaths maintain high flexibility, vital for dynamic operations of LHD machines.

- **High Durability**:
- Engineered to endure mechanical stresses and the tough conditions of underground mining, ensuring a long service life with minimal maintenance.

- **Operational Safety**:
- Features such as semiconductive screens and robust outer sheaths improve the cable’s safety, protecting equipment and personnel from electrical hazards.

- **Reliable Performance**:
- Consistent power delivery in challenging environments supports continuous and efficient mining operations, crucial for productivity.

Summary

The Type NSHTÖU 4C16 (6 KN) Underground Mine Scoop Cable is essential for underground mining applications, offering the necessary flexibility, durability, and safety required for Load-Haul-Dump machines.

Its advanced construction and compliance with strict standards ensure reliable power transmission, contributing to efficient and safe mining operations.

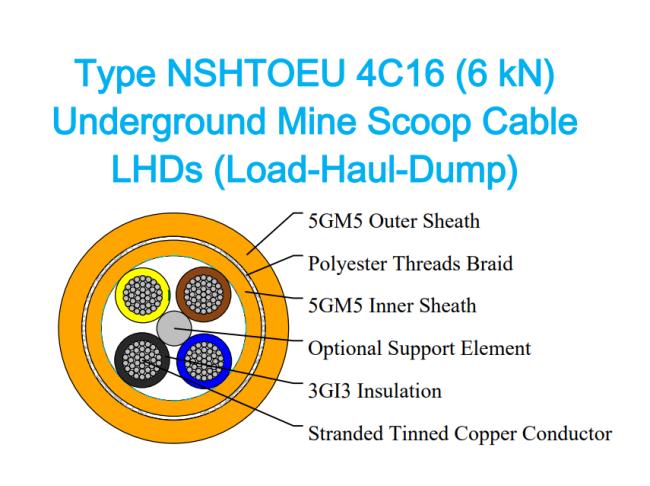

Cable Construction

- **Conductor**: Flexible stranded tinned copper conductor.

- **Insulation**: EPR type 3GI3.

- **Support Element**: Central support element with a tensile strength of 6 kN.

- **Inner Sheath**: PCP type 5GM5.

- **Twist Braid**: Polyester wire reinforcement braid, vulcanized bonded between inner and outer sheath.

- **Outer Sheath**: PCP type 5GM5.
