Type КГпЭ-ХЛ 3х35+1х10+1х6 Trailing Mining Power Cable Compliant with ГОСТ 22483 & ГОСТ 15150 Standards, Suitable for Mines and Power Plants

The Type КГпЭ-ХЛ 3х35+1х10+1х6 Trailing Mining Power Cable is designed to meet the rigorous demands of mining operations and power plants in Russia and other CIS countries.

This flexible, cold-resistant cable is built to withstand harsh environmental conditions, making it ideal for use with excavators and other mobile equipment.

Key Characteristics of КГпЭ-ХЛ 3х35+1х10+1х6

К - Кабель (Cable):

Flexible mining cable (гибкий горный кабель) designed for ease of use and installation in dynamic and demanding environments.

Г - Гибкий (Flexible):

Ensures ease of handling and installation, suitable for flexible trailing mining cables (гибкие горные кабели).

п - Полипропилен (Polypropylene Insulation):

Insulation of auxiliary conductors made from a block copolymer of propylene with ethylene, ensuring durability and resistance to wear.

Э - Экскаваторы (Excavators):

Designed specifically for connecting excavators and other mobile machines, providing reliable power in mining cable for mobile equipment (кабели для мобильного оборудования).

ХЛ - Холодостойкий (Cold-Resistant):

Cold-resistant construction makes it suitable for use in environments with extreme temperatures, crucial for cold-resistant mining cables (морозостойкие горные кабели).

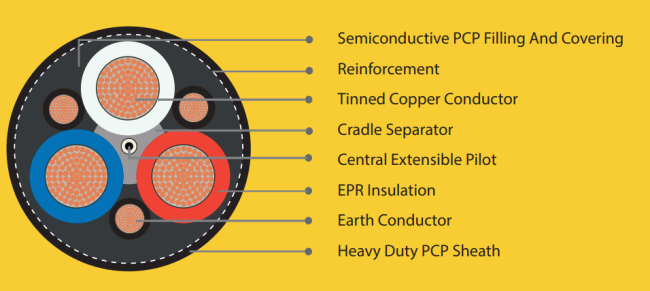

Construction Elements

Conductors (Токопроводящие жилы):

Copper conductors (or tinned copper) with Class 5 flexibility according to ГОСТ 22483-2012, ensuring excellent conductivity and flexibility.

Semi-Conductive Screens (Полупроводящие экраны):

Electrically conductive rubber screens (type РЭ-2) for enhanced shielding and protection against electrical interference.

Main Conductor Insulation (Изоляция основных жил):

Rubber insulation (type РТИ-1) based on natural and butadiene rubber, providing robust and reliable insulation.

Auxiliary Conductor Insulation (Изоляция вспомогательных

жил):

Polypropylene block copolymer insulation for auxiliary conductors, ensuring high durability and performance.

Ground Conductor (Жила заземления):

Bare ground conductor providing a safe path to ground, enhancing the cable's safety.

Separator Layer (Разделительный слой):

Polyethylene terephthalate film (ПЭТ-Э) wrapping for improved insulation and mechanical protection.

Inner Sheath (Внутренняя оболочка):

Made from isoprene and butadiene rubber, offering durability and resistance to mechanical damage.

Outer Sheath (Наружная оболочка):

Cold-resistant rubber (type РШ-1), designed to withstand low temperatures and provide excellent protection against environmental hazards.

Application Areas

The Type КГпЭ-ХЛ 3х35+1х10+1х6 Mining Cable is ideal for:

Excavators and Mobile Machines: Connecting excavators and other mobile machinery in mining operations to power networks, ensuring reliable and efficient power supply.

Power Plants and Mining Operations: Suitable for use in power plants and mining sites, particularly in environments exposed to cold temperatures.

Technical Parameters

Nominal Voltage:

Main conductors: 6 kV

Auxiliary conductors: 380 V

Test Voltage:

Main conductors: 15 kV for 5 minutes

Auxiliary conductors: 2 kV for 5 minutes

Operating Temperature:

Maximum operating temperature: 70°C

Ambient temperature range: -60°C to +50°C

Bending Radius:

Minimum bending radius: 10 times the outer diameter

Insulation Resistance:

Main conductors: Not less than 50 MΩ·km at 20°C

Screens: Not less than 300 MΩ/km at 20°C

Durability:

The cable is designed to withstand the harsh conditions typical of mining environments, including exposure to oils and mechanical stress.

Key Features and Benefits

High Durability (Высокая прочность):

The reinforced construction ensures the cable can withstand mechanical stresses, abrasion, and impact, making it suitable for heavy-duty mining power cables (мощные горные силовые кабели).

Cold-Resistance (Морозостойкость):

Capable of operating in extremely low temperatures, ensuring reliable performance in cold climates, a crucial feature for cold-resistant mining cables (морозостойкие горные кабели).

Advanced Shielding (Продвинутое экранирование):

Electrically conductive rubber screen provides superior shielding, preventing electrical interference and ensuring the integrity of power transmission.

Safety and Reliability (Безопасность и надежность):

Designed to prevent electrical hazards by ensuring a reliable path to ground and providing excellent protection against electrical faults.

Flexibility (Гибкость):

The flexible design facilitates ease of installation and handling in confined spaces and dynamic environments, making it ideal for flexible trailing mining cables (гибкие горные кабели).

Oil and Chemical Resistance (Масло- и химическая стойкость):

The cable's oil-resistant design ensures it remains functional in environments where it may come into contact with oils and other lubricants commonly found in mining settings.

The Type КГпЭ-ХЛ 3х35+1х10+1х6 Mining Cable is an essential component for modern mining and power plant operations, offering high durability, advanced shielding, and reliable performance in harsh environments.

Its flexible and cold-resistant construction makes it a preferred choice for mining professionals in Russia, Belarus, and other CIS countries.
