Type (N)TSCGEWOEU Reeling Cable: For Stackers Reeling System, Reclaimers Reeling System, and Ship Unloaders Reeling System or Heavy Equipment in Mining

Application Scenarios

The Type (N)TSCGEWOEU Reeling Cable is engineered to deliver exceptional performance in demanding environments.

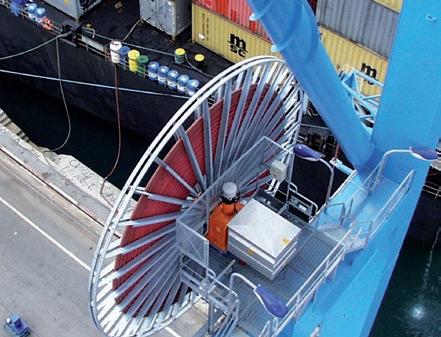

Its primary application is for motorized cable reels, making it an excellent choice for heavy equipment in mining, stackers, reclaimers, and ship unloaders.

The cable's high torsional rigidity and superior resilience make it suitable for continuous operation under high loads.

Typical applications include:

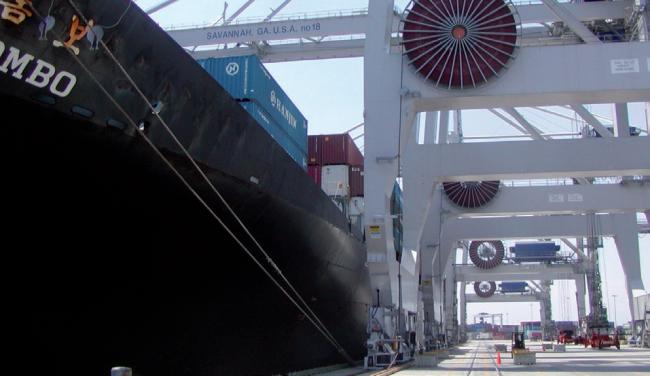

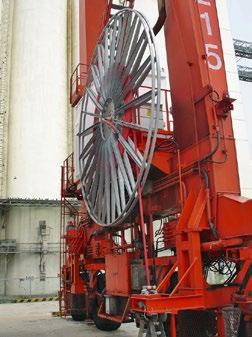

• Container cranes main power supply: High travel speeds, high mounting locations.

• Heavy equipment in mining: Ensuring reliable operation in harsh conditions.

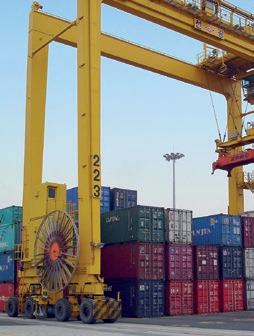

• Stackers & Reclaimers: For continuous heavy-duty use.

• Ship unloaders: Providing robust performance in maritime environments.

Key Features

This cable stands out for its robust design and high performance:

• High torsional rigidity and excellent overall resilience due to the special synthetic rubber compound used for the inner and outer sheath.

• Anti-twisting secured through an embedded braid between the inner and outer sheath made of synthetic yarns with very high tensile load.

• Excellent abrasion behavior because of the highly durable special heavy-duty rubber compound 5GM5.

• Reliable data transmission through integrated optical fiber elements with 12, 24 fibers in loose tubes.

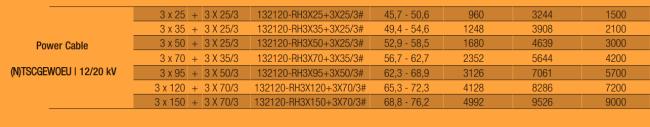

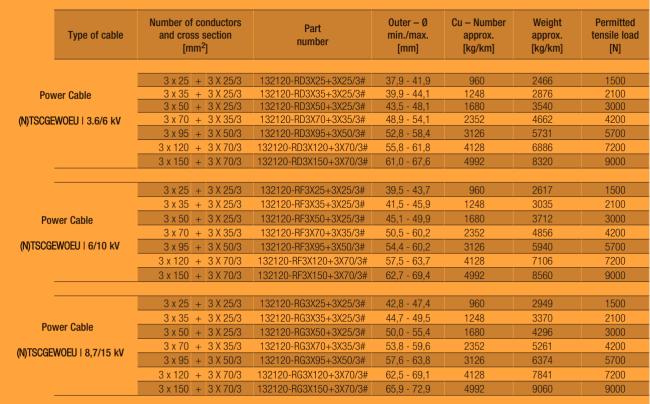

Electrical Parameters

The cable is versatile, offering various rated voltage options:

• Uo/U = 3.6 / 6.0 kV
• Uo/U = 6.0 / 10.0 kV
• Uo/U = 8.7 / 15.0 kV
• Uo/U = 12.0 / 20.0 kV

Mechanical Load-Bearing Capacity

Designed for high mechanical stress, this cable can handle:

• Travel speed: Up to 180 m/min (higher speeds available on request).

• Minimum bending radii: 12 x Ø on the reel, 15 x Ø at the deflection pulley.

Thermal Specifications

This cable can operate in a wide range of temperatures:

• Ambient temperature (flexing): -25°C to +80°C

• Ambient temperature (fixed): -40°C to +80°C

Chemical Specifications

The cable is designed to resist various environmental factors:

• Resistant to ozone
• Oil-resistant
• UV-resistant
• Flame-retardant according to IEC 60332-1

The outer sheath color is red.

Design Features

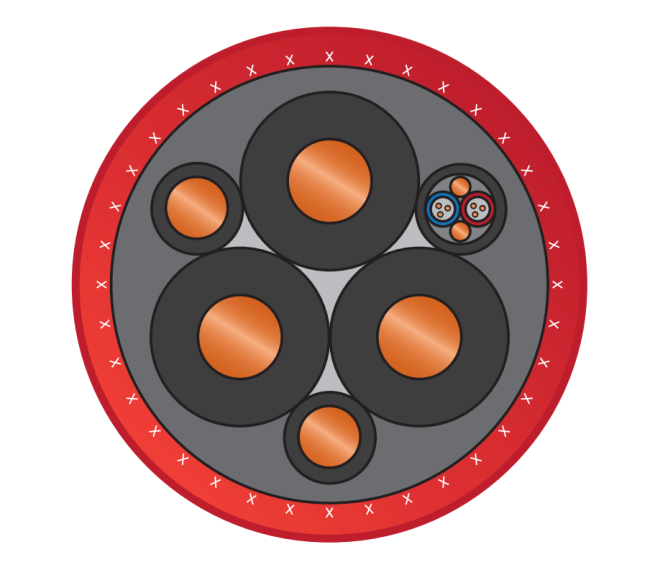

The Type (N)TSCGEWOEU Reeling Cable incorporates high-quality materials and advanced design features:

• Conductor: Very fine stranded tinned copper as class 5 according to IEC 60228.
• Stranding: Conductors in layers stranded, with the earth conductor split into interstices.
• Insulation: Rubber compound type 3GI3.
• Inner Sheath: Double layer, ERP compound type 5GM3.
• Anti-Torsion Braid: Braid of polyamide threads between inner and outer sheath.
• Outer Sheath: Double layer, rubber compound type 5GM5, in red.

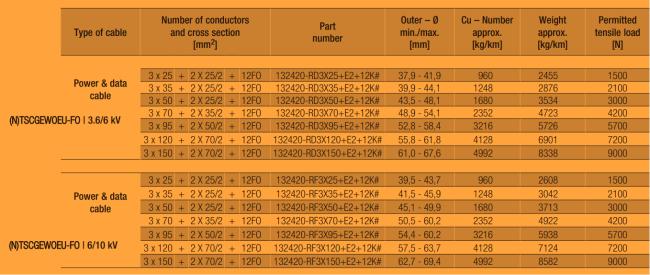

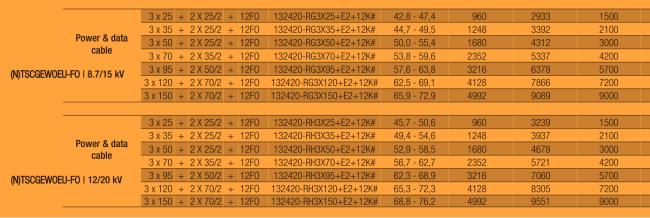

Fiber Optic Cable

The cable includes options for fiber optic integration, offering both mono-mode and multi-mode fibers for reliable data transmission.

FQA:

What are the rated voltage options for this cable?

The rated voltage options are Uo/U = 3.6 / 6.0 kV, 6.0 / 10.0 kV, 8.7 / 15.0 kV, and 12.0 / 20.0 kV.

What travel speed can this cable handle?

It can handle travel speeds up to 180 m/min, with higher speeds available on request.

Is this cable suitable for outdoor use?

Yes, it is resistant to ozone, oil, UV, and has flame-retardant properties, making it suitable for outdoor use.

What are the thermal specifications for this cable?

The ambient temperature range for flexing is -25°C to +80°C, and for fixed installations, it is -40°C to +80°C.

What color is the outer sheath of the cable?

The outer sheath is red.
