Type R-(N)TSCGEWOEU High Speed Reeling Cable — Upgraded Version of Type (N)TSCGEWOEU Stacker & Reclaimer Reeling Cable

Application Scenarios

The Type R-(N)TSCGEWOEU Reeling Cable is specifically designed for high-speed, high-torque environments. This cable is ideally suited for:

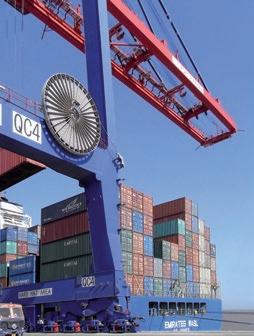

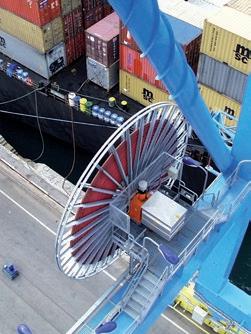

• Container Cranes: Serving as the main power supply with high travel speeds and elevated mounting locations.

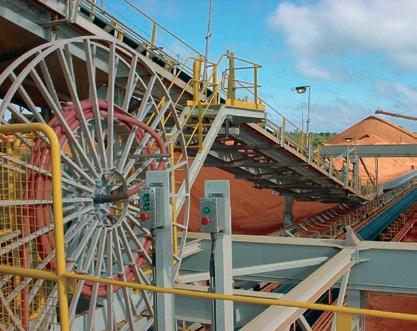

• Heavy Equipment in Mining: Built for continuous heavy-duty cycles in mining operations.

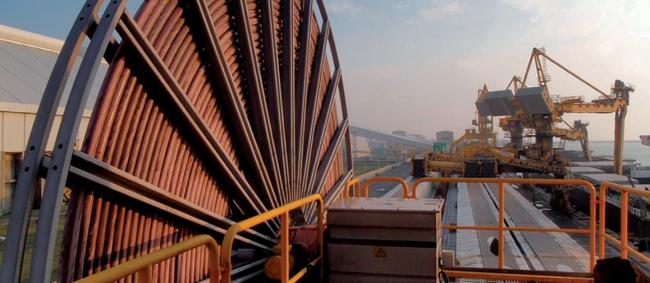

• Stackers & Reclaimers: Ensuring reliable power and data transmission in large-scale industrial operations.

• Ship Unloaders: Supporting robust and high-speed reeling operations essential for efficient unloading processes.

Its robust design makes it perfect for use on motorized cable reels, where it ensures excellent performance and reliability.

FQA:

What ensures the cable’s maximum torsional rigidity?

The cable achieves maximum torsional rigidity thanks to supporting polyester fibers vulcanized into the sheath.

How does the cable handle high electric strength?

The cable is designed with special insulation materials that provide high electric strength, making it suitable for high-voltage applications.

Is termination fast and easy with this cable?

Yes, the outer layer consists of semiconducting and cold-strip NBR, allowing for easy and fast termination.

What enhances the cable’s durability?

The stranded bond is stabilized with EPR core elements and reinforced in the center, ensuring long-lasting durability.

Can this cable support reliable data transmission?

Absolutely. Integrated fiber-optic cores available in 6, 12, 18, or more fibers ensure reliable data transmission.

What design features contribute to its resilience and resistance?

The cable’s unique 3-layer “sandwich” design combines resilience and resistance, making it very flexible and durable.

Key Features

• Maximum Torsional Rigidity: The inclusion of supporting polyester fibers vulcanized into the sheath ensures high torsional rigidity.
• High Electric Strength: Special insulation materials designed for high-voltage applications enhance the cable’s electric strength.
• Fast and Easy Termination: The outer layer, made of semiconducting and cold-strip NBR, allows for quick and easy termination.
• Durability: EPR core elements and reinforcement in the center stabilize the stranded bond for enhanced durability.
• Reliable Data Transmission: Integrated fiber-optic cores ensure dependable data transmission.
• 3-Layer “Sandwich” Design: This design offers a unique combination of resilience and resistance, using very flexible, extremely short lay cores.

Electrical Parameters

• Rated Voltage:
  • Uo/U = 6.0 / 6 kV
  • Uo/U = 8.7 / 15.0 kV
  • Uo/U = 12.0 / 20.0 kV
  • Higher voltage grades available on request

Mechanical Load-Bearing Capacity

• Travel Speed: Up to 240 m/min, with higher speeds available on request
• Minimum Bending Radii:
  • 12 x Ø on the reel
  • 15 x Ø at deflection pulley
  • 20 x Ø for S-type directional changes

Thermal and Chemical Specifications

• Ambient Temperature:
  • Flexing: -35°C to +80°C
  • Fixed: -50°C to +80°C

• Resistance:
  • Flame retardant
  • CFC-free
  • Oil-resistant
  • UV-resistant
  • Suitable for limited use in water
  • LBS-free and silicone-free

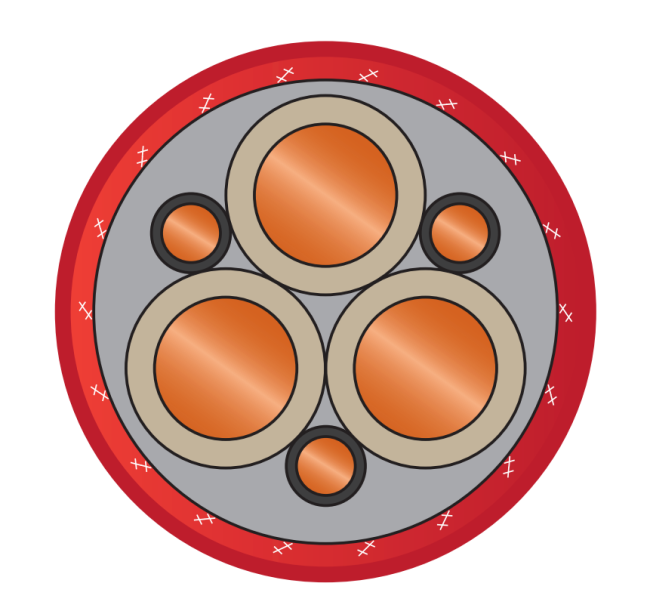

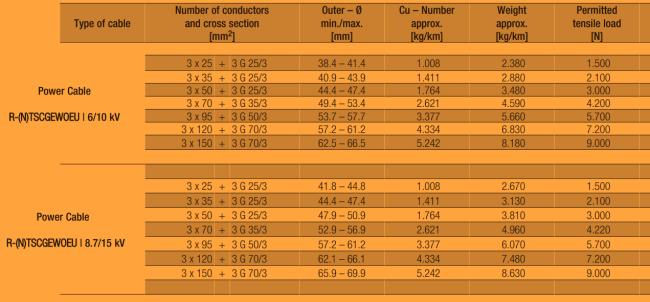

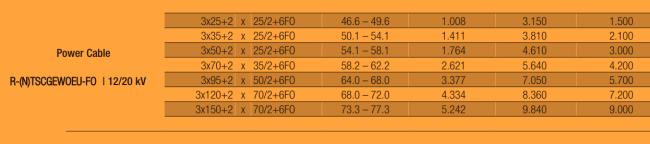

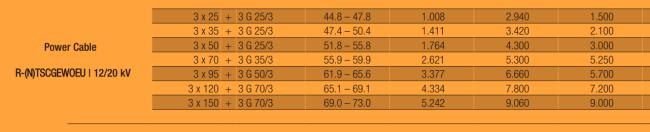

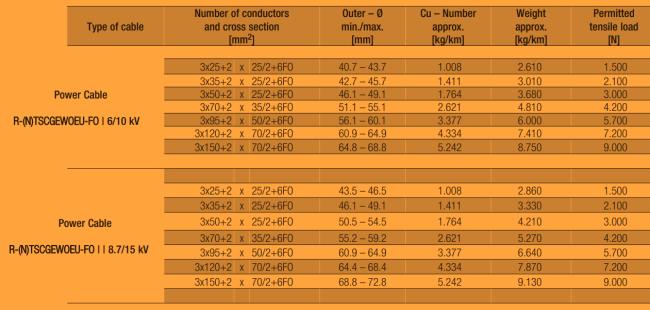

Design Features

• Conductor: Highly flexible, finely stranded tin-plated electrolytic copper, exceeding DIN VDE 0295 category 5.

• Sheath: High wear-resistant PCP compound (polychloroprene).

• Core Insulation: EPR in a sandwich process for high-voltage quality.

• Sheathing System: Double layer with inner and outer layers of abrasion-resistant PCP, color-coded in bright red.

Fiber Optic Options

• Fiber Types: Mono-Mode and Multi-Mode

• Attenuation:

850 nm: 2.8 dB/km (50/125), 3.3 dB/km (62.5/125)

1300 nm: 0.8 dB/km (50/125), 0.9 dB/km (62.5/125)

1550 nm: 0.4 dB/km (E9/125)

The Type R-(N)TSCGEWOEU Reeling Cable stands out with its maximum torsional rigidity, high electric strength, and durable design.

It is a robust and highly flexible solution for demanding industrial applications, especially in container cranes, mining equipment, stackers, reclaimers, and ship unloaders.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
