Premium FeiChun (N)SHTÖU-J 3.6/6kV 3x120mm²+3x60/3+24x1.5mm² Double-Shielded RTG Cable with 5 Million Flex Cycles

When it comes to heavy-duty industrial applications, particularly in environments with high mechanical stress, selecting the right RTG cable can significantly impact the efficiency, safety, and longevity of your equipment. The FeiChun (N)SHTÖU-J 3.6/6kV 3x120mm²+3x60/3+24x1.5mm² Double-Shielded RTG Cable stands out as a top-tier solution for demanding tasks.

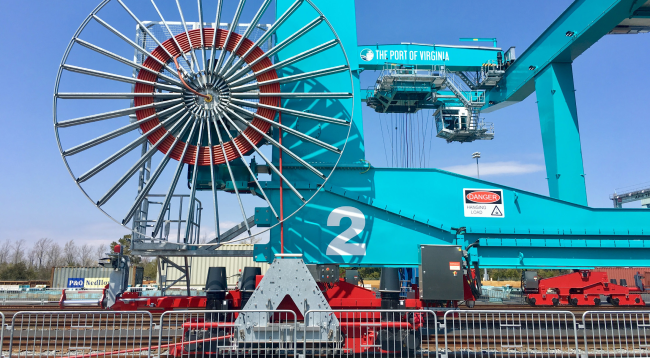

Designed for heavy-duty RTG cranes and other industrial machinery, this cable offers unmatched flexibility, durability, and resistance to harsh conditions, making it a reliable choice for any challenging environment.

This article will provide essential information about the FeiChun (N)SHTÖU-J 3.6/6kV RTG cable, focusing on its technical features, installation tips, and advantages. With over 5 million flex cycles, it is built to handle the most demanding operations with ease, ensuring long-term performance and reducing downtime.

Key Features of the FeiChun (N)SHTÖU-J 3.6/6kV Double-Shielded RTG Cable

1. High Voltage Rating

The FeiChun (N)SHTÖU-J cable is rated for 3.6/6kV, providing a reliable power supply even in environments with high electrical demands. This high voltage capacity is crucial for RTG cranes and other heavy-duty industrial machinery that require stable and consistent power delivery.

2. Conductor: Tinned Copper

The tinned copper conductor used in this cable offers excellent conductivity while also providing resistance to corrosion. The flexible cl.5 IEC 60228 conductor ensures that the cable can handle high mechanical stresses without breaking or fraying.

Tinning further protects the copper from the effects of moisture and other corrosive elements, ensuring longer life and reliability.

3. Insulation: Micro Filtered HEPR Rubber Compound

The micro-filtered HEPR rubber compound used for insulation is superior to standard compounds like 3GI3, offering better protection against wear and tear, chemicals, oils, and UV exposure.

This highly durable insulation prevents short circuits and power loss, keeping the electrical components safe and functioning optimally.

4. Double Shielding for Maximum Protection

The FeiChun (N)SHTÖU-J cable is equipped with double shielding, including an inner sheath of GM1b quality rubber and an outer sheath made from a special rubber compound.

This double shield offers superior protection against mechanical damage, water ingress, and environmental stress. It ensures the cable’s longevity even in the harshest conditions.

5. Flexibility: 5 Million Flex Cycles

One of the standout features of this cable is its ability to endure over 5 million flex cycles. Whether your application involves frequent bending, twisting, or flexing, this cable can handle the continuous motion without failure.

This high flex life significantly reduces the need for replacements and lowers operational costs over time.

6. Chemical, Oil, and UV Resistance

The outer sheath of the cable is made from a special rubber compound that surpasses industry standards (better than 5GM2).

It is designed to withstand exposure to oil, chemicals, and UV rays, making it ideal for use in outdoor and industrial environments where cables are frequently exposed to harsh chemicals, extreme temperatures, and direct sunlight.

7. Anti-Twisting Element for Improved Durability

An anti-twisting polyester braid is positioned between the inner and outer sheath, preventing twisting and further enhancing the flexibility and durability of the cable. This feature is especially important for applications where the cable undergoes constant bending and rotation.

How the FeiChun (N)SHTÖU-J RTG Cable Solves Industry Problems

In industries like port operations, material handling, and construction, the challenges faced by cables operating under high mechanical stress and extreme conditions are significant.

The FeiChun (N)SHTÖU-J cable is designed to address these challenges effectively. Here's how it solves several critical problems faced by businesses and operators:

Problem 1: Cable Failure Due to Frequent Flexing and Bending

Heavy-duty machinery like RTG cranes is subject to continuous movement, which places immense strain on cables. Cables that cannot withstand frequent flexing tend to break, wear out, or lose functionality over time, leading to costly downtime and equipment failure.

Solution: The FeiChun (N)SHTÖU-J RTG cable is designed for 5 million flex cycles, ensuring it can handle constant movement and bending without compromising performance. This dramatically reduces the likelihood of cable failure and minimizes maintenance costs.

Problem 2: Damage from Chemical Exposure

In many industrial applications, cables are exposed to harsh chemicals, oils, and other corrosive substances that degrade the material, leading to insulation breakdown, short circuits, and ultimately cable failure.

Solution: With its chemical-resistant outer sheath, the FeiChun (N)SHTÖU-J cable provides superior protection against oils, chemicals, and other industrial agents. This resistance ensures the longevity of the cable, even in harsh environments.

Problem 3: Cables Becoming Brittle and Cracking Due to UV Exposure

Outdoor operations often involve cables exposed to sunlight for extended periods, which can cause cables to become brittle, crack, or degrade, leading to electrical hazards and costly repairs.

Solution: The UV-resistant rubber compound in the outer sheath of the FeiChun (N)SHTÖU-J cable ensures that it remains flexible and durable despite prolonged exposure to sunlight. This UV resistance is crucial for outdoor machinery like RTG cranes, which are frequently exposed to direct sunlight.

Problem 4: Twisting and Bending Under Mechanical Stress

Industrial cables that twist or bend excessively can lose their structural integrity, leading to failure. This is a common issue for cables used in festoon systems, cranes, and RTG machinery.

Solution: The anti-twisting polyester braid embedded within the cable prevents twisting and further enhances its overall flexibility. This feature ensures that the cable remains intact and performs optimally under continuous mechanical stress.

Technical Features and Specifications

Installation Guidelines for FeiChun (N)SHTÖU-J RTG Cable

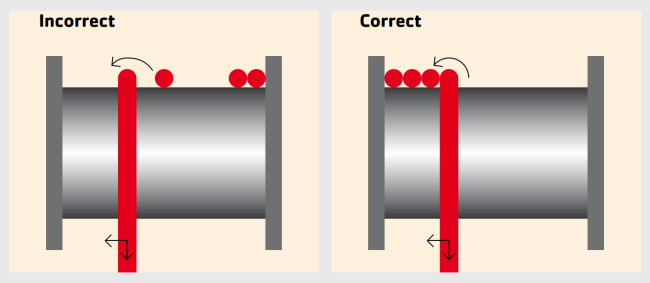

Proper installation of the FeiChun (N)SHTÖU-J RTG cable is crucial to ensure optimal performance and longevity. Below are key installation guidelines:

Benefits of Using the FeiChun (N)SHTÖU-J 3.6/6kV Double-Shielded RTG Cable

Reliability: With its 5 million flex cycles, this cable ensures reliable performance in high-demand industrial applications. Reduced maintenance and downtime translate to cost savings for your business.

Longevity: The combination of chemical resistance, UV protection, and flexibility means this cable will last for years, even under extreme conditions.

Efficiency: With its high voltage capacity and reliable electrical performance, this cable helps maintain operational efficiency and ensures that machinery performs at its best.

Conclusion

The FeiChun (N)SHTÖU-J 3.6/6kV 3x120mm²+3x60/3+24x1.5mm² Double-Shielded RTG Cable is an industrial-grade solution designed to meet the demanding needs of cranes, hoists, and other machinery exposed to high mechanical stress and environmental challenges.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
