Specialized Optical Fiber Winding Cables: Advanced FO-Suffix Electrical Connectivity Solutions for Complex Industrial Mobile Machinery Environments
The FO-suffix optical fiber integrated winding cable is a cutting-edge solution tailored for the dual demands of electrical power and optical fiber communication in complex mobile machinery environments.
Designed to withstand the harshest industrial conditions, these cables ensure uninterrupted performance, reduced downtime, and heightened safety.
This article explores the unique construction, performance benefits, and practical applications of FO-suffix cables, showcasing their value in industries like mining, construction, port operations, and offshore platforms.
Introduction
The Challenges of Complex Mobile Machinery
Industrial environments pose significant challenges for connectivity systems:
The Need for Robust Cable Solutions
Traditional cables often fall short in meeting the rigorous demands of complex industrial environments.
The FO-suffix optical fiber integrated winding cables address these challenges with a specialized design that combines durability, flexibility, and advanced connectivity for both power and data.
FO-Suffix Optical Fiber Integrated Winding Cable Technology
Key Features and Benefits
| Feature | Benefit |
|---|---|
| Exceptional Flexibility | Sustains continuous reeling and bending without damage. |
| Abrasion Resistance | Prolongs lifespan even in rough operational environments. |
| Dual Functionality | Combines power transmission and optical fiber communication. |
| Temperature Resilience | Operates seamlessly in extreme temperature ranges from -40°C to +85°C. |
| Enhanced Durability | Withstands vibration, tension, and mechanical stress. |
| Low Bending Radius | Ensures compact installation in machinery with tight space constraints. |
| Advanced Signal Integrity | Ensures reliable, high-speed data transmission through integrated fibers. |
| Long Service Life | Reduces replacement frequency and operational costs. |

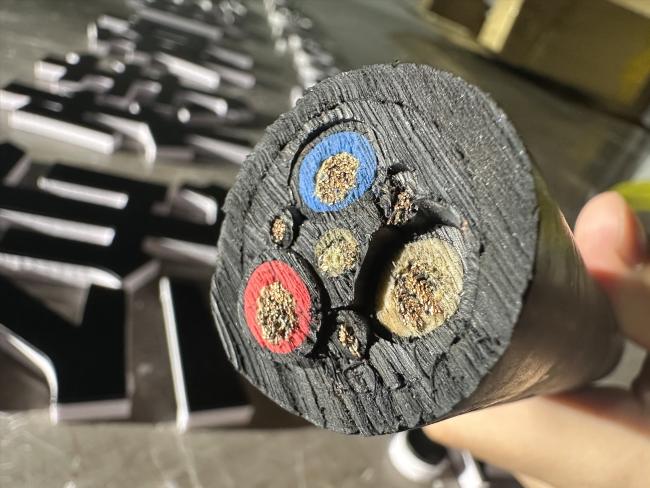

Construction and Materials
| Cable Component | Material | Purpose |
|---|---|---|
| Power Conductor | High-grade copper or aluminum | Efficient transmission of electrical power. |
| Optical Fiber Core | Single-mode or multi-mode fibers | High-speed communication for industrial automation. |
| Insulation Layer | Cross-linked polyethylene (XLPE) | Provides excellent electrical insulation and heat resistance. |
| Armor Layer | Steel wire or kevlar braiding | Protects against mechanical damage and tension. |
| Outer Jacket | Thermoplastic polyurethane (TPU) | Resistant to UV rays, chemicals, and abrasion. |
Applications in Complex Mobile Machinery
1. Mining Equipment
The FO-suffix cables provide robust solutions for demanding underground mining equipment, including:
- Powering excavators, conveyors, and drill rigs.
- Supporting real-time monitoring through integrated optical fiber connections for precise operations.
Key Benefit: Enhanced remote control capabilities reduce the need for human intervention in dangerous zones.
2. Port and Terminal Equipment
In ports, where cranes and container handlers require reliable connectivity, the FO-suffix cables:
- Handle heavy power and data transmission loads.
- Support real-time monitoring of crane operations and cargo tracking systems.
Key Benefit: Ensure operational efficiency in high-volume container terminals.
3. Construction Equipment
The rise of autonomous construction machinery depends on seamless power and data flow. The FO-suffix cables:
- Support advanced systems like GPS-enabled grading machines and automated cranes.
- Reduce downtime caused by frequent cable wear on active construction sites.
Key Benefit: Improve efficiency and safety through real-time communication.
4. Offshore Platforms and Vessels
These cables excel in offshore environments with corrosive saltwater and extreme conditions:
- Powering and communicating with robotic arms, cranes, and monitoring equipment.
- Meeting stringent industry standards for marine safety.
Key Benefit: Ensure reliability and compliance in critical offshore applications.
Performance in Demanding Industrial Environments
Case Studies
Application in a Mining Operation
A mining company deployed FO-suffix cables for its underground drill rigs:
- Challenge: Conventional cables suffered frequent failures due to abrasion and tension.
- Outcome: Increased uptime by 30%, and replacement costs reduced by 40%.
Port Crane Operations in Singapore
The integration of FO-suffix cables in automated cranes enabled precise cargo handling.
- Result: Improved efficiency, with a 25% reduction in container processing time.
Comparison with Traditional Cable Systems
| Parameter | FO-Suffix Cables | Traditional Cables |
|---|---|---|
| Durability | High resistance to wear | Frequent failure in harsh environments. |
| Signal Integrity | Dual optical/electrical support | Limited to power only. |
| Maintenance Costs | Low due to long service life | High with frequent replacements. |
| Operational Downtime | Minimal | Significant disruptions. |
Optimizing Operational Efficiency and Safety
Reduced Downtime
FO-suffix cables excel in preventing frequent operational delays caused by cable failures:
- Fewer replacements result in 40% cost savings annually.
- Higher productivity with uninterrupted operations.
Improved Safety
- Optical fiber integration allows remote monitoring, reducing operator risks.
- High-strength jackets prevent damage from accidental impacts.
Increased Efficiency
- Supports the shift toward industrial automation by enabling high-speed data transfer.
- Compact design ensures easy integration in modern machinery.
Environmental Considerations
Sustainability
- Long cable lifespan reduces environmental waste.
- Energy-efficient manufacturing processes lower the carbon footprint.
Compliance with Regulations
The FO-suffix cables meet international standards like:
- IEC 60794 for optical fibers.
- RoHS compliance for eco-friendly materials.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage Rating | Up to 1.5 kV |
| Optical Fiber Type | Multi-mode or single-mode |
| Temperature Range | -40°C to +85°C |
| Minimum Bending Radius | 8x cable diameter |
| Outer Jacket Material | Thermoplastic polyurethane (TPU) |
Installation and Maintenance
Installation Guidelines
- Use proper reeling mechanisms to prevent fiber stress.
- Maintain appropriate bending radius during installation.
Maintenance Tips
- Conduct bi-annual inspections for wear or damage.
- Clean the outer jacket regularly to prevent chemical buildup.
Cost-Benefit Analysis
| Metric | Traditional Cables | FO-Suffix Cables |
|---|---|---|
| Initial Investment | Low | Moderate |
| Lifespan | 2-3 years | 5-7 years |
| Maintenance Costs (Annual) | $30,000 | $12,000 |
| Total Cost Over 5 Years | $150,000 | $90,000 |
Summary of Key Findings
The FO-suffix optical fiber integrated winding cables provide unmatched performance for complex mobile machinery, offering durability, flexibility, and reliability in the harshest environments.
Future Trends
Advancements in smart cables with integrated monitoring and IoT capabilities are set to revolutionize industrial connectivity, further enhancing safety and efficiency.
By choosing FO-suffix cables, industries can embrace a future-proof solution for their critical operations.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
