Feichun SPREADERFLEX 3GSLTOE: Precision Engineering for Demanding Material Handling Systems
The Feichun SPREADERFLEX 3GSLTOE stands out as a high-performance cable tailored for demanding material handling applications. Designed specifically for load-lifting equipment and spreader basket operations, it offers exceptional durability, flexibility, and advanced capabilities for the most challenging industrial settings.
This cable is engineered to handle extreme temperatures, resist harsh environmental factors, and ensure seamless data and power transmission, making it an indispensable asset in modern industrial systems.
Product Overview
Core Application Domains
The Feichun SPREADERFLEX 3GSLTOE is versatile and reliable in multiple settings, including:
- Load-Lifting Equipment: Perfect for cranes, hoists, and spreaders.
- Spreader Basket Operations: Ensures smooth, reliable functionality.
- Industrial Material Handling Systems: Handles repetitive motion with ease.
- Extreme Environment Applications: Operates reliably in harsh weather conditions.
- Cold Weather Installations: Withstands freezing temperatures down to -40°C.
Key Design Differentiators
- Extreme Environment Resilience: Designed to operate in temperatures as low as -40°C and as high as 80°C.
- Advanced Electrical Characteristics: Rated for 0.6/1 kV, ensuring reliable power transmission.
- Specialized Transmission Capabilities: Includes options for integrated data and fiber optic transmission, making it ideal for automation and control systems.
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV (600/1000V) |
| Max Operating Voltage (AC) | 0.7/1.2 kV |
| Max Operating Voltage (DC) | 0.9/1.8 kV |
| AC Test Voltage | 3.5 kV (5 Minutes) |
Conductor Composition
- Material: High-purity, bare electrolytic copper for optimal conductivity.
- Stranding: Ultra-fine strands conforming to Class FS standards.
- Core Identification: Clear and durable black numerical marking on light-colored insulation.
- Earth Conductor: Distinctive green/yellow color, ensuring safety compliance.
Shielding and Signal Integrity
Shield Coverage and Optimization
| Type | Coverage (%) |
|---|---|
| Shielded Cores | Minimum 60% |
| Twisted Pairs | Minimum 80% |
- Transfer Impedance: Precisely optimized for 30 MHz to ensure minimal signal loss and interference.
Optical Fiber Specifications
Fiber Type Options
Multi-Mode (G62.5/125μm)
- Attenuation at 850nm: <3.3 dB/km
- Bandwidth at 850nm: >400 MHz
Multi-Mode (G50/125μm)
- Attenuation at 850nm: <2.8 dB/km
- Bandwidth at 850nm: >400 MHz
Single-Mode (E9/125μm)
- Attenuation at 1550nm: <0.3 dB/km
- Numerical Aperture: 0.14 ± 0.02
Mechanical and Environmental Performance
Structural Design
| Feature | Specification |
|---|---|
| Core Arrangement | Centrally laid bundles |
| Support Element | High-strength aramide threads |
| Outer Sheath | Specialized black PUR compound |
Operational Parameters
| Parameter | Fixed Installation | Flexible Operation |
|---|---|---|
| Ambient Temperature | -50°C to +80°C | -40°C to +80°C |
| Conductor Temperature | Max: 90°C | Short Circuit: 250°C |
Advanced Capabilities
Data Transmission Options
- ASI-Bus Compatibility: Perfect for industrial automation.
- Profibus Integration: Ensures seamless communication in control systems.
- Fiber Optic Data Transmission: Available in multiple configurations for precise data flow.
Environmental Resistance
| Resistance Type | Standard/Feature |
|---|---|
| Oil Resistance | DIN EN 60811-404 |
| UV and Ozone Resistance | Built-in protection |
| Moisture Resistance | Suitable for outdoor use |
Installation Considerations

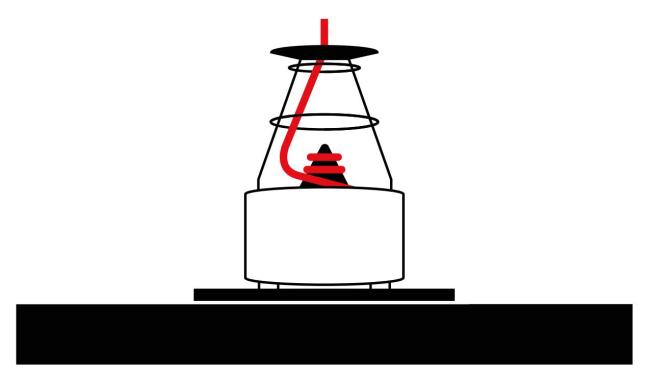

Basket Installation Guidelines
| Parameter | Recommendation |
|---|---|
| Minimum Diameter | 30 x Cable Diameter |
| Recommended Height | 45 x Cable Diameter |
- Installation Direction: Counter-clockwise laying is required to prevent stress on the cable.
Mechanical Limitations
| Parameter | Limit |
|---|---|
| Maximum Travel Speed | Up to 160 m/min |
| Bending Radius | As per DIN VDE 0298 Part 3 |
Configuration Flexibility
Core Configuration Options
- Core Count Variations: Available in multiple configurations to suit diverse applications.
- Cross-Section Ranges: From 1mm² to 3.5mm² for enhanced versatility.
- Integrated Bus Options: Allows for flexible system integration.
- Control Cable Variants: Includes specialized elements for greater control and precision.
Certification and Compliance
| Standard | Certification |
|---|---|
| DIN VDE 0250 | Core electrical safety |
| EAC Certificate | International compliance |
| DIN EN 60811-404 | Environmental standards |
Why Choose Feichun SPREADERFLEX 3GSLTOE?
Conclusion
The Feichun SPREADERFLEX 3GSLTOE is a cutting-edge solution for engineers and technical professionals needing a reliable, robust, and high-performance cable. Its innovative design combines exceptional durability with advanced data transmission capabilities, making it ideal for material handling systems and load-lifting equipment in demanding environments.
For specific application needs or technical consultations, contact Feichun technical support to explore how the SPREADERFLEX 3GSLTOE can elevate your industrial operations.
Note: All specifications are based on the latest manufacturer data. Always consult official datasheets for current information.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
