Feichun RONDOFLEX(C)-FC (N)GRDGCGOEU: Advanced Electromagnetic Compatibility Festoon Cables
The Feichun RONDOFLEX(C)-FC (N)GRDGCGOEU cable represents the cutting edge of innovation in low-voltage screened cables, specifically engineered to thrive in industrial environments with high electromagnetic interference (EMI).
This cable delivers superior electromagnetic compatibility (EMC), mechanical endurance, and environmental resistance, making it ideal for challenging conditions.
This guide explores its features, benefits, and practical applications, providing essential knowledge for engineers, procurement specialists, and maintenance teams.
Product Positioning
Primary Application Domains
The Feichun RONDOFLEX(C)-FC (N)GRDGCGOEU is a versatile cable, perfect for:

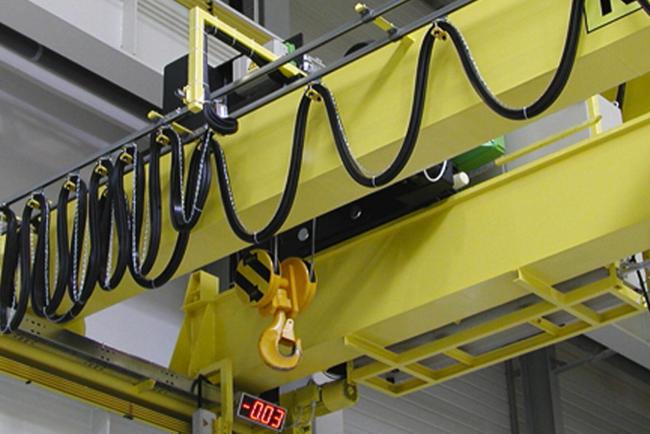

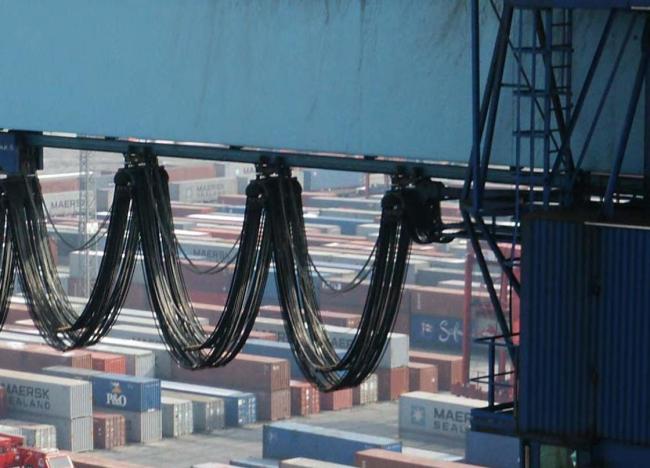

- Gantry crane systems
- Hall material handling equipment
- Transportation systems
- Machine tool interconnections
- High-interference industrial environments
Key Differentiators
- Advanced EMC Shielding: Reduces interference from external sources, ensuring stable power and data transmission.
- Frequency Converter Compatibility: Reliable performance in variable frequency drive (VFD) systems.
- Extreme Mechanical Resilience: Designed to handle frequent movement and harsh conditions without compromising integrity.
Technical Specification Highlights
Electromagnetic Compatibility (EMC)
| Feature | Specification |
|---|---|
| Peak Voltage | 2400V EMC Performance |
| Shielding Material | Braid screen of tinned copper wires |
| Surface Coverage | >80% |
| Transfer Impedance | <100 mΩ/m at ≤30 MHz |
This advanced shielding ensures minimal signal interference, making it a reliable choice for EMI-prone environments.
Conductor Engineering
| Conductor Type | Material | Flexibility Class |
|---|---|---|
| Main Conductor | Bare electrolytic copper | Class 5 (High Flex) |
| Earth Conductor | Tinned copper | Class FS (Superior) |
The finely stranded copper conductors provide exceptional electrical conductivity and durability.
Insulation Technology
| Characteristic | Details |
|---|---|
| Compound | PROTOLON MS |
| Base Material | High-quality EPR (Ethylene Propylene Rubber) |
| Performance Enhancements | Superior mechanical and electrical properties |
The insulation ensures safety and reliability in demanding environments.
Electrical Performance Parameters
Voltage Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 0.6/1 kV (600/1000V) |
| Max Permissible Voltage | AC: 0.7/1.2 kV; DC: 0.9/1.8 kV |
| AC Test Voltage (5 min) | 5 kV |
Current Characteristics
Designed for frequency converter applications, this cable delivers stable current handling even under high loads.
Thermal and Mechanical Resilience
| Characteristic | Fixed Installation | Flexible Operation |
|---|---|---|
| Temperature Range | -50°C to +80°C | -35°C to +80°C |
| Maximum Operating Temperature | 90°C | Short Circuit: 250°C |
This flexibility across temperatures ensures reliable performance in both extreme cold and heat.
Mechanical Endurance
| Feature | Value |
|---|---|
| Maximum Tensile Load | 15 N/mm² |
| Minimum Bending Radius | Per DIN VDE 0298 |
| Travel Speed | Up to 240 m/min |
The cable’s rugged construction allows it to endure repeated bending and mechanical stress, making it ideal for festoon systems and mobile applications.
Critical Installation Considerations
Short Circuit and Fault Management
The Feichun RONDOFLEX(C)-FC (N)GRDGCGOEU is designed with fault safety in mind.
However, external damage may impact short circuit currents. Proper grounding and adherence to recommended cross-sectional limits (≤3x50mm²) ensure safe and effective operation.
Chemical and Environmental Resistance
| Property | Specification |
|---|---|
| Oil Resistance | DIN EN 60811-404 Compliant |
| Weather Resistance | Ozone, UV, and moisture-proof |
These features make the cable highly durable for both indoor and outdoor use.
Unique Design Features
| Core Identification | Core Arrangement |
|---|---|
| Light-colored insulation with black printed numbers | 4-core for up to 10mm², 3 main conductors with split earth above 16mm² |
These thoughtful design choices simplify installation and maintenance.
Compliance and Certification
| Certification | Standard |
|---|---|
| VDE Registered | Reg. Nr. 7841 |
| EAC Certified | DIN VDE 0250-814 Compliant |
This comprehensive compliance guarantees quality and reliability in international markets.
Engineering Insights and Recommendations
Optimal Application Scenarios
This cable is perfect for:
- Environments with high electromagnetic interference
- Frequency converter systems
- Mobile industrial equipment requiring robust shielding
Potential Challenges and Mitigations
- Electromagnetic Interference: Ensure proper grounding and use the advanced shielding provided by the cable.
- Mechanical Stress: Follow bending radius recommendations and maintain proper cable support.
Comparative Advantages
| Feature | Advantage |
|---|---|
| EMC Performance | Advanced shielding ensures minimal interference. |
| Flexibility | Superior to standard cables, simplifying installations. |
| Environmental Resistance | Performs well in harsh weather and industrial conditions. |
Conclusion
The Feichun RONDOFLEX(C)-FC (N)GRDGCGOEU is more than just a cable. It’s a solution for industries facing challenges from electromagnetic interference, mechanical stress, and harsh environments.
By combining advanced materials and cutting-edge design, Feichun delivers unmatched reliability and performance.
Recommended Next Steps
- Contact Feichun for specific application requirements.
- Request detailed technical datasheets.
- Perform a site-specific compatibility assessment.
Embrace the superior technology of the Feichun RONDOFLEX(C)-FC and transform your industrial operations with confidence.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
