Feichun Advanced Screening Technology FESTOONFLEX C-PUR-HF D12YC11Y Screened Cable for Critical Industrial Applications
Feichun Advanced Screening Technology: FESTOONFLEX C-PUR-HF D12YC11Y Screened Cable for Critical Industrial Applications
The FESTOONFLEX C-PUR-HF D12YC11Y is a cutting-edge solution for industrial applications that demand robust performance, reliability, and advanced electromagnetic interference (EMI) protection.
Engineered for the toughest environments, this cable combines innovative materials, superior screening technology, and compliance with international standards to ensure uninterrupted operations in critical industrial systems.
1. Product Positioning
1.1 Unique Design Characteristics
The FESTOONFLEX C-PUR-HF D12YC11Y stands out as a specialized screened cable that excels in festoon systems and environments where EMI protection is essential. With its flexible core design and halogen-free polyurethane sheath, it offers:
- Enhanced durability for frequent movement in industrial operations.
- Resistance to extreme environmental conditions, including high temperatures and mechanical stress.
- Exceptional electromagnetic shielding to protect sensitive signals.
1.2 Core Technical Differentiators
This cable’s unique features include:
| Feature | Details |
|---|---|
| Voltage Rating | 0.6/1 kV (600/1000V) |
| Screening Material | Tinned copper wire braid |
| Core Configuration | Flexible, twisted arrangement |
| Environmental Compliance | Halogen-free, flame-retardant materials |
2. Technical Specifications
2.1 Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum AC Voltage | 0.7/1.2 kV |
| Maximum DC Voltage | 0.9/1.8 kV |
| AC Test Voltage | 2.5 kV (5 Minutes) |
The cable’s advanced screening technology reduces electrical noise, ensuring clean signal transmission and system stability.
2.2 Screening Performance
| Feature | Benefit |
|---|---|
| Tinned Copper Braid | EMI protection and signal integrity |
| High Coverage Percentage | Enhanced electrical noise immunity |
3. Mechanical and Environmental Specifications
3.1 Mechanical Resilience
| Parameter | Value |
|---|---|
| Maximum Conductor Tensile Load | 15 N/mm² |
| Minimum Bending Radius | 6x Cable Diameter |
| Travel Speeds | Festoon/Chain Systems: Up to 210 m/min |
3.2 Temperature Performance
| Condition | Temperature Range |
|---|---|
| Fixed Installation | -50°C to +80°C |
| Flexible Operation | -40°C to +80°C |
| Maximum Conductor Temp. | 90°C |
| Short Circuit Temp. | 250°C |
4. Detailed Configuration Options
4.1 Power Cable Variants
| Core Configuration | Range (mm²) |
|---|---|
| Single-Core | 1x25 to 1x240 |
| Four-Core | 4x1.5 to 4x50 |
| Five-Core | 5x1.5 to 5x2.5 |
4.2 Control Cable Options
| Variant | Configuration |
|---|---|
| Screened Control Cables | 7x1.5, 12x1.5, 18x1.5 |
| Screened Pair Options | Available |
5. Key Technical Advantages
5.1 Electromagnetic Protection
The tinned copper wire braid effectively reduces EMI, ensuring stable performance in environments with high electrical noise. This feature is especially critical for sensitive control and communication systems.
5.2 Material Innovation
- Halogen-Free Polyurethane Sheath: Environmentally friendly and flame retardant.
- Durability: Exceptional resistance to abrasion, oils, and chemicals.
| Material Property | Advantage |
|---|---|
| Halogen-Free | Low toxic emissions during fire |
| Flame Retardant | Improved safety |
6. Typical Application Domains
The FESTOONFLEX C-PUR-HF D12YC11Y excels in various industrial applications:
- Automated Manufacturing Systems: Reliable operation in high-precision environments.

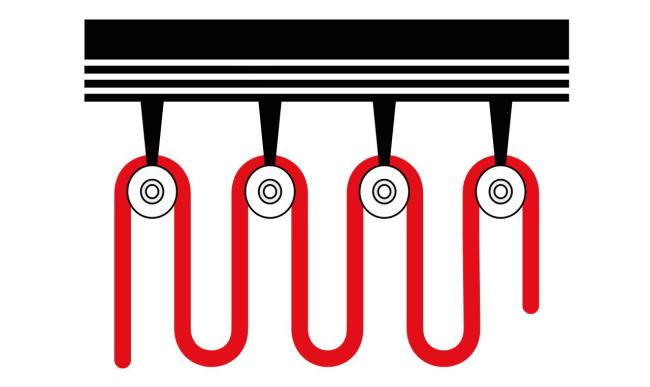

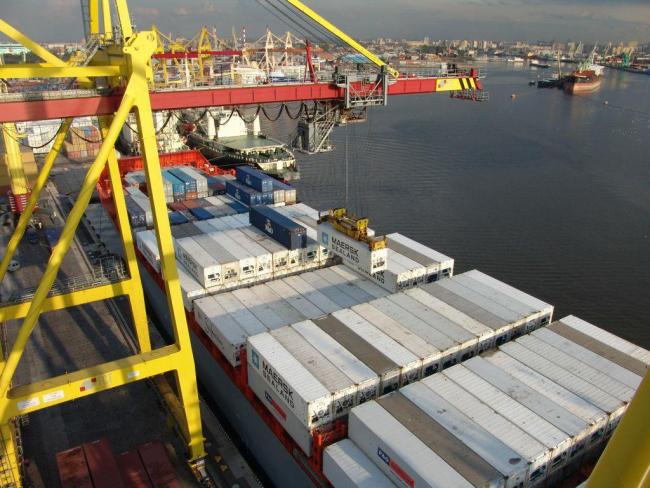

- Material Handling Equipment: Seamless performance in overhead cranes and festoon systems.
- Machine Tool Installations: Superior EMI protection ensures accurate operation.

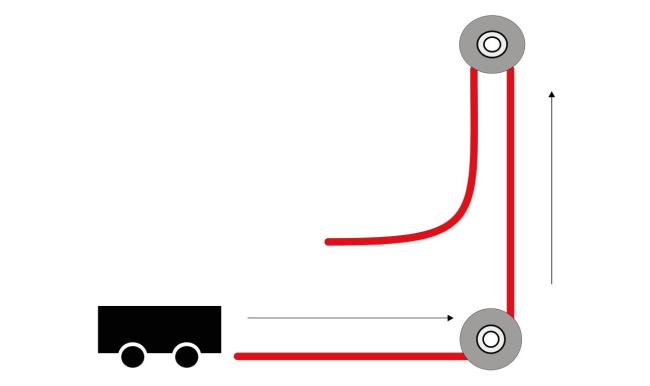

- Drag Line Operations: Handles frequent movement with ease.
7. Installation and Deployment Considerations
7.1 Best Practices
To maximize the cable’s lifespan:
- Cable Routing: Follow proper routing paths to avoid strain.
- Bending Radius: Maintain the recommended minimum bending radius of 6x cable diameter.
- Regular Inspections: Periodically check for wear and tear.
7.2 Potential Operational Challenges
| Challenge | Mitigation Strategy |
|---|---|
| Chain System Overload | Reduce travel speed |
| EMI Issues | Conduct compatibility tests |
| Mechanical Strain | Install protective guides |
8. Compliance and Standards
The cable meets stringent industry standards, including:
| Standard | Purpose |
|---|---|
| DIN EN 60228 | Conductor Flexibility |
| DIN VDE 0293-308 | Core Identification |
| IEC 60332-1 | Fire Performance |
It is also suitable for underwater applications up to 50 meters, making it versatile for various industrial setups.
9. Performance Optimization Guidelines
| Aspect | Optimization Tip |
|---|---|
| Cross-Section Selection | Match to current requirements |
| Ambient Temperature | Factor in for performance |
| Electromagnetic Environment | Use proper grounding techniques |
Conclusion
The FESTOONFLEX C-PUR-HF D12YC11Y cable delivers unparalleled performance, advanced EMI protection, and exceptional durability for critical industrial applications. Its innovative design ensures reliability in even the most demanding environments.
Technical Support
Feichun offers expert consultation to help you choose the right cable for your specific needs. Contact our specialists to ensure the best performance and longevity for your industrial systems.
