Feichun PLANOFLEX NGFLGOEU: Flexible Low Voltage Cables for Demanding Festoon Applications
Industrial operations often demand solutions that strike a balance between flexibility, durability, and performance.

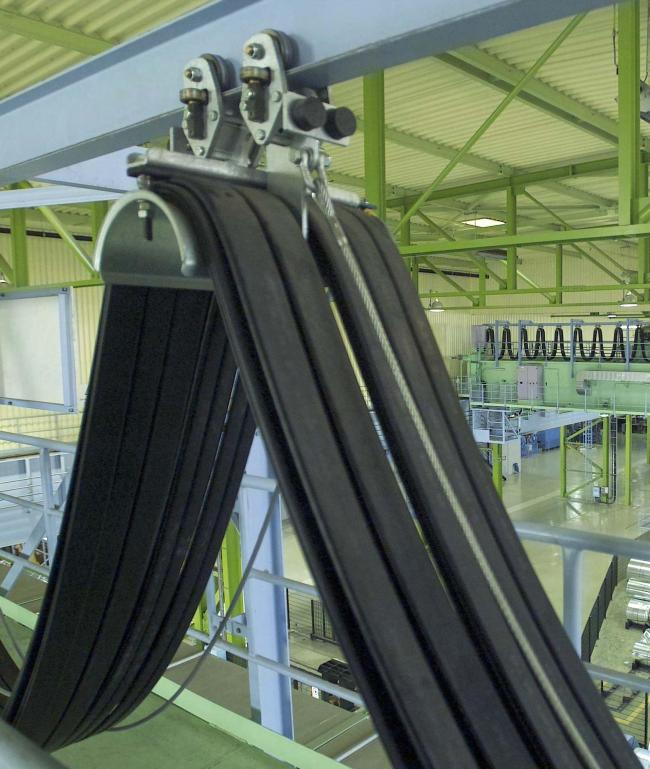

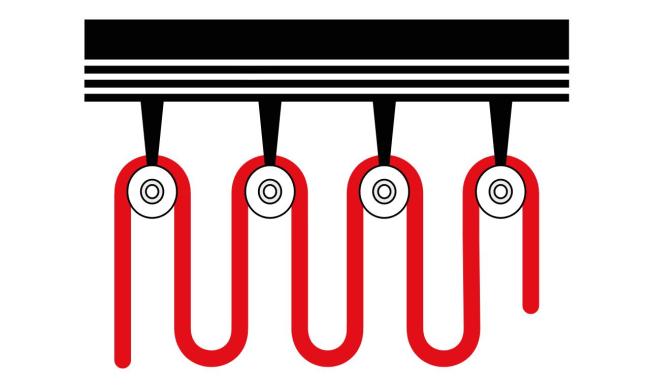

The Feichun PLANOFLEX NGFLGOEU cable series is designed specifically for festoon systems, offering a high-performance solution for low voltage applications where movement, flexibility, and environmental resistance are critical.
The PLANOFLEX NGFLGOEU cable is a specialized flat cable engineered for material handling equipment, machine tools, and movable parts interconnections. Its robust design and versatility make it an essential choice for operations requiring reliable electrical connections in challenging environments.
In this article, we’ll explore the key features, specifications, and applications of PLANOFLEX NGFLGOEU cables, providing practical insights and knowledge to help you make informed decisions.
Technical Specifications
Design and Construction
The PLANOFLEX NGFLGOEU cable is built to withstand the rigors of industrial applications. Its construction ensures mechanical flexibility while maintaining excellent electrical performance.
| Feature | Specification |
|---|---|
| Conductor Composition | High-purity electrolytic copper |
| Stranding Classes | Flexible Class 5 and 6 (as per DIN VDE 0295) |
| Insulation Material | PROTOLON EPR rubber compound |
| Sheathing Material | Heavy-duty rubber (halogen-free) |
| Shielding | Tinned copper wire braided screen |
The tinned copper wire braid provides superior EMC shielding, ensuring stable performance even in environments with high electromagnetic interference.
Electrical Performance
PLANOFLEX NGFLGOEU cables are designed to meet rigorous electrical performance standards.
| Parameter | Value |
|---|---|
| Rated Voltage | 300/500 V (600 V) |
| Voltage Withstand | Up to 2.5 kV |
| Current Carrying Capacity | Optimized for DIN VDE 0298-4 standards |
This robust electrical profile ensures reliable power delivery even in demanding operations.
Environmental and Mechanical Resilience
Industrial environments demand cables that can endure harsh conditions. The PLANOFLEX NGFLGOEU excels in chemical resistance, temperature tolerance, and mechanical strength.
Chemical Resistance
| Property | Standard/Feature |
|---|---|
| Oil Resistance | Compliant with DIN VDE 0473-404 |
| UV Protection | Superior durability under sunlight |
| Ozone Resistance | Enhanced protection against degradation |
| Moisture Resilience | Exceptional water-resistant properties |
Thermal and Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +90°C (flexible) |
| Short-Circuit Temperature | Up to 250°C |
| Tensile Load Capacity | Supports up to 15 N/mm² |
| Bending Radius | Minimum of 7x cable diameter |
With these specifications, the PLANOFLEX NGFLGOEU cable is ideal for dynamic and fixed installations, offering excellent thermal stability and mechanical performance.
Application Insights
The versatility of the PLANOFLEX NGFLGOEU cable makes it an excellent choice for various industrial applications.
Ideal Use Cases
Machine Tool Connections
PLANOFLEX cables deliver dependable performance in high-speed, repetitive movements.
Material Handling Equipment

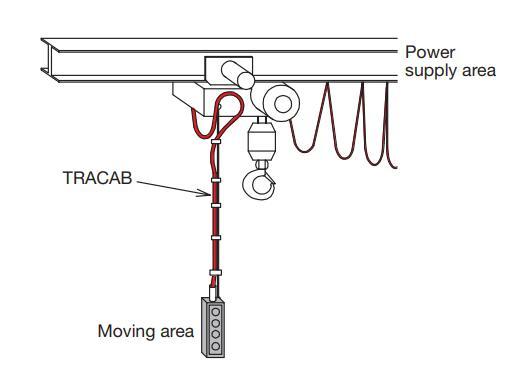

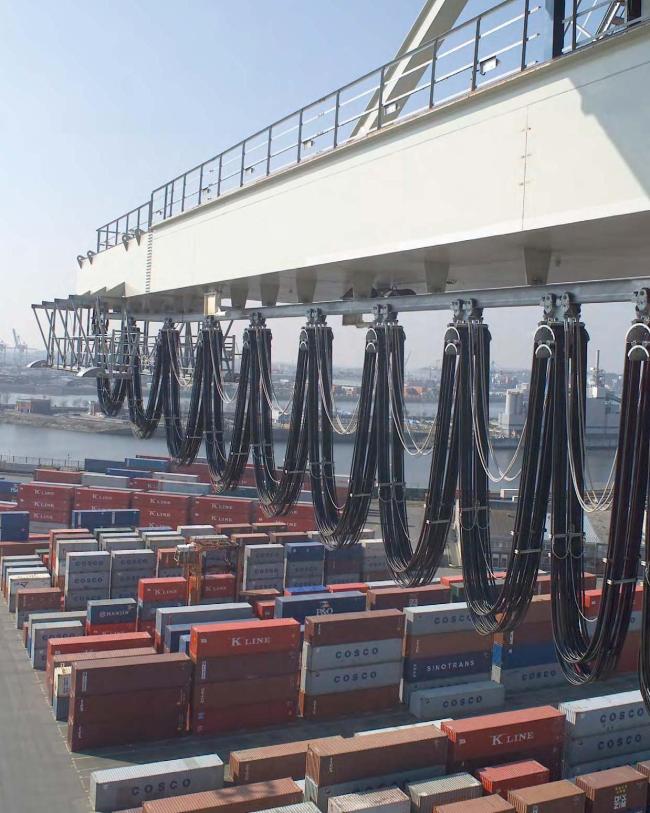

Perfect for cranes, hoists, and conveyors, ensuring stable power transmission in constantly moving systems.
Movable Part Interconnections
Suitable for automated systems requiring flexible and durable connections.
Installation Considerations
When deploying PLANOFLEX NGFLGOEU cables, follow these best practices to maximize performance:
Mounting Guidelines: Avoid sharp bends and ensure the recommended bending radius is maintained.
Environmental Adaptations: Use additional protection in extremely abrasive or chemically aggressive environments.
Performance Optimization: Conduct regular inspections to identify wear and tear early.
Certifications and Compliance
PLANOFLEX NGFLGOEU cables are rigorously tested and certified for global compliance.
| Certification | Details |
|---|---|
| VDE Marking | Meets DIN VDE 0250-809 standards |
| UL File E 113313 | Certified for North American markets |
| EAC Certificate | Approved for Eurasian Customs Union use |
| Fire Performance | IEC 60332-1 compliant |
These certifications ensure the cable’s safety and reliability across diverse international markets.
Product Range and Variants
The PLANOFLEX NGFLGOEU series offers a wide array of configurations to suit specific industrial needs.
| Variant | Details |
|---|---|
| Control Cables | Available in screened and unscreened versions. Core options: 4x1.5 to 25x2.5 mm² |
| Power Cables | Cross-section range: 1x4 to 4x16 mm² |
| Screened Cables | EMC-protected configurations available |
Technical Problem-Solving Guide
Common Installation Challenges
- Electromagnetic Interference: Excessive noise can disrupt system functionality.
- Environmental Wear: Prolonged exposure to oils or UV can degrade cable life.
- Mechanical Stress: Overstretching during movement may cause conductor fatigue.
Troubleshooting and Optimization
| Issue | Recommendation |
|---|---|
| Signal Noise | Use screened variants for better EMI protection. |
| Abrasion Damage | Add protective sleeves or conduits. |
| Premature Fatigue | Ensure correct installation practices. |
Conclusion
The Feichun PLANOFLEX NGFLGOEU cable is a versatile, reliable, and high-performance solution for demanding industrial applications. With features like robust EMI shielding, superior flexibility, and exceptional chemical resistance, this cable stands out as a trusted partner for engineers worldwide.
For those seeking a solution to the challenges posed by festoon systems and dynamic industrial environments, PLANOFLEX NGFLGOEU cables offer unparalleled value, durability, and compliance with international standards.
Need More Information?
Contact Feichun’s technical specialists for tailored advice and recommendations to ensure optimal cable selection and application.
Tables, actionable insights, and practical advice throughout this article ensure a clear understanding of how PLANOFLEX NGFLGOEU cables can meet your industrial needs. Invest in PLANOFLEX for a future-proof, dependable solution.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
