Feichun PROTOLON(SMK) (N)TSCGEWOEU: Advanced Medium Voltage Reeling Cable for Demanding Industrial Applications
The Feichun PROTOLON(SMK) (N)TSCGEWOEU is a state-of-the-art medium voltage reeling cable, designed to deliver exceptional performance in industrial environments. Its advanced construction and technical features make it the go-to solution for applications where mobility, durability, and high electrical performance are critical.
This cable is tailored for demanding environments, providing unmatched mechanical resilience, electrical efficiency, and long-term reliability.
Whether operating fast-moving container cranes, powering large industrial machines, or meeting the rigorous demands of mobile equipment, the Feichun PROTOLON(SMK) (N)TSCGEWOEU ensures maximum uptime and operational safety.
Product Overview
Brand and Type Identification
- Manufacturer: Feichun Cable
- Designation: (N)TSCGEWOEU
- Voltage Rating: 1.8/3 kV (configurable up to 12/20 kV)
Primary Application Domains
This medium voltage cable is designed for high-stress environments and excels in applications requiring frequent motion or extreme mechanical durability. It is ideal for:
- Fast-moving container cranes
- Mobile industrial equipment
- High-torque reeling systems
Technical Specifications
Conductor Design
- Material: Electrolytic tinned copper
- Stranding: Very finely stranded, Class FS
- Compliance: Meets DIN VDE 0295 standards
The finely stranded copper enhances flexibility and reduces resistance, ensuring optimal electrical performance under dynamic conditions.
Insulation and Electrical Properties
| Feature | Details |
|---|---|
| Insulation Material | PROTOLON HS, based on high-quality EPR |
| Inner Layer | EPR-based semiconductive layer for uniform field control |
| Outer Layer | Modified NBR with "Easy Strip" design for effortless removal |
These insulation layers ensure superior mechanical and electrical performance, making the cable suitable for medium voltage applications even under high strain.
Core Configuration
- Design: Three cores
- Earth Conductor: Split into three parts for better flexibility
- Identification: Natural-colored insulation with black semiconductive layers
The unique design enhances durability while maintaining mechanical flexibility.
Advanced Protection Features
Sheath Engineering
Inner Sheath
- Design: PROTOFIRM Sandwich for dual-layer protection
- Material: Waterproof compound for enhanced durability
- Color: Red
Torsion Protection
- Feature: Anti-torsion reinforced braid made of polyester threads
- Bonding: Vulcanized bond ensures stability under repeated stress
Outer Sheath
- Material: Tear-proof PROTOFIRM rubber compound
- Color: Bright red for high visibility
- Performance: Exceptional abrasion resistance
Performance Characteristics
Electrical Parameters
| Feature | Specifications |
|---|---|
| Rated Voltage | 1.8/3 kV to 12/20 kV |
| Max Operating Voltage | Configurable (AC/DC) |
| EMC Compatibility | High (reduced interference) |
Mechanical Capabilities
| Parameter | Value |
|---|---|
| Max Tensile Load | Up to 30 N/mm² |
| Min Bending Radius | 8x cable diameter |
| Travel Speed Compatibility | Gantry: 120 m/min; Festoon: 240 m/min |
| Temperature Range | -50°C to +80°C |
Compliance and Certifications
This cable meets global industrial standards, ensuring safety and reliability in all applications.
- Standards Compliance: DIN VDE 0250-813, HD 2216, and others
- Fire Certificate: Approved by the Russian Federation
- Environmental Resistance: Certified to resist oils, chemicals, and harsh environmental conditions
Practical Considerations for Engineers

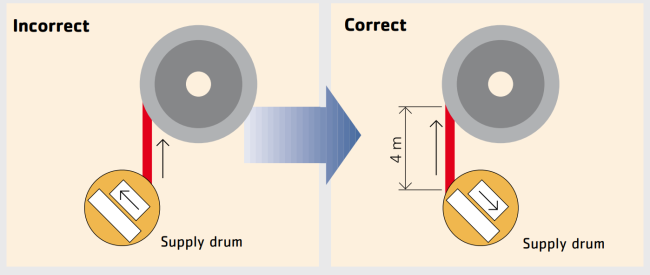

Installation Guidance
- Fixed Installations: Securely mount using compatible fixtures to avoid unnecessary stress.
- Mobile Use: Ensure bending radii are maintained to prevent damage.
- Maintenance: Regular inspections of sheaths and core connections ensure peak performance.
Performance Limitations
- Temperature Constraints: Avoid exposure to temperatures beyond specified limits.
- Mechanical Stress: Exceeding tensile loads may compromise performance.
Comparative Advantages
Why Choose Feichun PROTOLON(SMK) (N)TSCGEWOEU?
- High Durability: Withstand frequent reeling and torsion stresses.
- Superior Electrical Efficiency: Reduced attenuation and enhanced insulation properties.
- Cost-Effectiveness: Lower maintenance costs and extended lifespan compared to conventional cables.
Conclusion
The Feichun PROTOLON(SMK) (N)TSCGEWOEU is a game-changer for industrial applications requiring medium voltage reeling cables.
Its innovative design, coupled with robust mechanical and electrical performance, makes it indispensable for challenging environments. For industries that value reliability and efficiency, this cable is an investment in performance and safety.
For detailed technical support and custom configurations, contact Feichun Cable today!
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
