Feichun TENAX TTS (N)TSCGEWOEU: Innovative Medium Voltage Reeling Cable for Demanding Industrial Applications

The Feichun TENAX TTS (N)TSCGEWOEU is an advanced medium voltage reeling cable engineered for high-performance applications, particularly in industries that require mobile equipment capable of withstanding extreme mechanical stress.

This cable is specifically designed to offer superior flexibility, reliability, and durability in demanding environments where other cables may fail.

It excels in applications where there are dynamic load handling, rapid movement, and frequent directional changes, making it the perfect solution for mobile industrial equipment operating in challenging environments.

Whether it’s for container cranes, large mobile industrial machinery, or other heavy-duty operations, the TENAX TTS (N)TSCGEWOEU offers unparalleled performance that maximizes uptime and reduces maintenance costs, ensuring continuous operations in high-stress environments.

Technical Overview

Primary Application Domains

The Feichun TENAX TTS (N)TSCGEWOEU is designed for use in industrial sectors requiring high-performance reeling cables, particularly in the following areas:

• Container Crane Systems: Ideal for container ports where heavy-duty lifting and reeling are constant.

• Large Mobile Industrial Equipment: This includes cranes, excavators, and mobile machinery requiring reliable power and data transmission.

• Dynamic and High-Movement Environments: Perfect for applications with rapid, multi-directional movements and high mechanical stress.

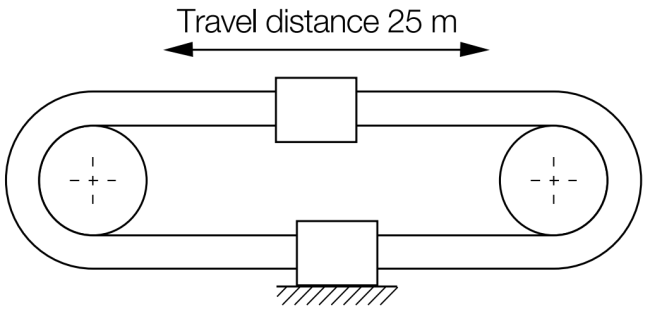

• Extensive Roller Running Conditions: Capable of operating under long travel distances with frequent bends and twists.

Distinctive Design Characteristics

Conductor Specifications

• Material: Pure copper for excellent conductivity and reduced power loss.

• Stranding: Fine-stranded Class 5 for flexibility and easier handling.

• Standards Compliance: Compliant with DIN EN 60228 and VDE 0295 for quality assurance and safety.

• Electrical Conductivity: Optimized for high efficiency and low electrical resistance.

Insulation Technology

• EPR-SHS EI6 Rubber Compound: Used to create highly durable insulation, which ensures superior electrical performance under extreme conditions.

• Semiconductive Rubber Layers: Help in minimizing electrical interference and improving the control of the electric field around the conductors.

• Optimal Electrical Field Control: Ensures a stable and secure operation of electrical equipment without interference.

Structural Engineering

• Aramid Rope Support: Centralized for added mechanical stability and protection against external forces.

• Split Earth Conductor: A unique design that enhances safety and system performance.

• Interstice-Integrated Conductor Arrangement: Provides better thermal dissipation and mechanical flexibility.

Electrical Parameters

The TENAX TTS (N)TSCGEWOEU cable supports various voltage configurations suitable for different industrial applications. It can handle high voltage conditions that are essential in mobile equipment for operational efficiency.

This flexibility in voltage configurations allows users to select the most appropriate option for their specific needs.

• Low Electrical Interference: Ensures high-quality performance in environments sensitive to electrical noise and disturbances.

Performance Characteristics

Thermal Performance

The TENAX TTS (N)TSCGEWOEU cable is designed for exceptional heat resistance, ensuring it performs optimally even in high-temperature conditions.

This wide range of temperature tolerances ensures the cable will perform efficiently in extreme environments, from hot industrial workshops to cold outdoor settings.

Mechanical Endurance

The Feichun TENAX TTS (N)TSCGEWOEU cable is engineered to withstand the toughest physical stress, including high tensile loads and rapid movements.

The tensile load capabilities and bending radius are optimized for ease of handling and installation, even in tight spaces or areas with limited movement.

Environmental Resistance

The cable is constructed from advanced materials that are specifically chosen to withstand harsh environmental conditions.

• Ozone-resistant: Protects against damage caused by exposure to ozone, a common environmental factor in industrial settings.

• UV-Protected: Prevents deterioration from prolonged exposure to sunlight, making it suitable for outdoor applications.

• Oil-Resistant: Ensures long-lasting durability in environments where exposure to oil and other chemicals is common.

• Abrasion and Tear-Proof Design: The robust construction prevents wear and tear even under the most challenging conditions.

Sheath and Protection Features

The Feichun TENAX TTS (N)TSCGEWOEU cable features multiple layers of protective sheathing designed for high-performance and durability.

Inner Sheath

• Material: High-performance rubber compounds that provide flexibility while maintaining resistance to mechanical stress and environmental factors.

• Compliance: Meets 5GM3 mechanical standards for industrial cables, ensuring longevity and reliability.

Torsion Protection

• Polyester Anti-Torsion Braid: Helps prevent damage caused by twisting and turning during reeling operations.

Outer Sheath

• High-Quality Rubber Compound: Provides further protection against abrasion, oil, and environmental damage.

• 5GM5 Quality Rating: Ensures the cable maintains its integrity under extreme conditions.

• Color Options: Available in red or black with a yellow stripe, making it easy to identify in large-scale industrial environments.

Certification and Compliance

The Feichun TENAX TTS (N)TSCGEWOEU cable adheres to several international standards, ensuring that it meets or exceeds the highest levels of performance, safety, and quality.

• DIN VDE 0250-813 compliance

• GOST-R/-K/-B certifications for use in Russia

• Fire Certificate of the Russian Federation

• Comprehensive international recognition, ensuring the cable’s adaptability across different regions.

Comparative Advantages

The Feichun TENAX TTS (N)TSCGEWOEU cable stands out in several key areas:

• Superior Mechanical Flexibility: Easy to handle and install even in difficult environments.

• Exceptional Thermal Stability: Able to operate in extreme heat and cold.

• Comprehensive Environmental Resistance: Built to last even in harsh outdoor environments.

• Versatile Voltage Configurations: Suitable for a wide range of industrial applications.

• Advanced Cable Engineering: Designed to meet the rigorous demands of modern industrial equipment.

Potential Applications

This cable is designed for use in a variety of heavy-duty industrial applications:

• Container Terminal Logistics: For cranes and other equipment requiring dynamic power and data transmission.

• Large Mobile Industrial Machinery: Cranes, excavators, and other high-load machinery that require flexible and durable cables.

• Heavy-Duty Material Handling Systems: Conveyor systems, hoists, and other machinery that need to handle heavy materials efficiently.

• Automated Industrial Equipment: Robotics and other automated systems where uninterrupted power supply is critical.

• Marine and Offshore Applications: Equipment operating in harsh weather and corrosive environments, such as ships, offshore rigs, and ports.

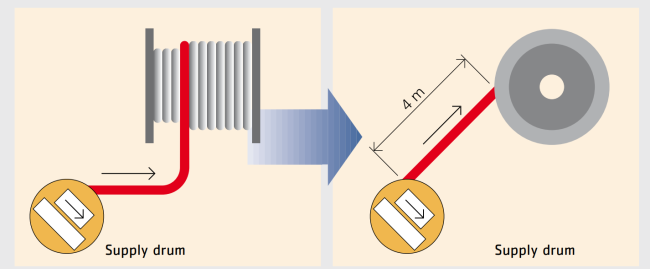

Installation Considerations

Proper installation of the Feichun TENAX TTS (N)TSCGEWOEU cable ensures optimal performance and longevity. Consider the following:

• Professional Installation: Always engage trained professionals for installation to ensure compliance with specifications.

• Tensile Load Limits: Ensure the cable is installed within the specified tensile load limits for maximum efficiency and longevity.

• Directional Change Requirements: Pay close attention to the bending radius and the need for directional changes in the installation area.

• Environmental Factors: Consider factors like temperature extremes and exposure to chemicals when planning the installation.

Technical Support and Consultation

For any specific application scenario or configuration requirements, it’s recommended to consult the manufacturer directly. Feichun offers:

• Custom configuration possibilities to suit specific operational needs.

• Comprehensive technical documentation and expert support for complex installation requirements.

• Ongoing customer service to ensure that the cable continues to perform optimally throughout its lifespan.

Conclusion

The Feichun TENAX TTS (N)TSCGEWOEU medium voltage reeling cable is the ideal solution for demanding industrial applications. With its exceptional mechanical strength, advanced insulation technology, and comprehensive environmental protection, it offers an unmatched balance of performance, reliability, and durability.

Whether for container terminals, heavy-duty industrial machinery, or automated systems, this cable is engineered to meet the toughest challenges, ensuring seamless operations and long-lasting performance in even the most challenging environments.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
