Feichun TENAX CTE: Precision Engineering for Extreme Underground Mining Cable Solutions
Feichun TENAX CTE: Precision Engineering for Extreme Underground Mining Cable Solutions
Underground mining is one of the most challenging industrial environments, demanding top-tier equipment to maintain safety, efficiency, and operational reliability.
The Feichun TENAX CTE 3kV Coal Cutter Cable is an engineering marvel, meticulously designed to handle the extreme stresses of mobile machinery in underground mining applications. This article offers a detailed overview of its features, capabilities, and the critical advantages it delivers.
I. Executive Summary
The Feichun TENAX CTE is a high-performance cable designed to meet the unique challenges of underground mining. Key highlights include:
- Robust design tailored for coal-cutting machines and other mobile mining equipment.
- Superior mechanical resilience to endure extreme bending and tensile stress.
- High-grade insulation and sheathing materials for reliable performance under harsh conditions.
- Full compliance with international mining safety standards.
With its combination of advanced engineering and durable materials, this cable ensures uninterrupted power transmission in the most demanding environments.
II. Application and Strategic Positioning
2.1 Core Application Domain
The Feichun TENAX CTE Cable excels in:

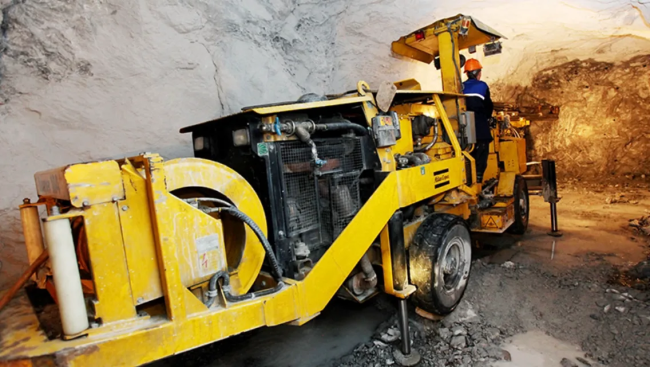

- Power connection for mobile mining machinery.
- Performing under high mechanical loads and extreme environmental stress.
- Handling repeated bending and movement during operations.
- Integration with protective cable chains, making it ideal for underground mining machinery like coal-cutting machines.
2.2 Unique Engineering Characteristics
| Feature | Benefit |
|---|---|
| Minimal tensile stress design | Reduces wear and tear during operation, extending cable lifespan. |
| Flexible conductor configuration | Facilitates smooth operation under constant bending and movement. |
| Protective outer sheath | Shields the cable from harsh mining conditions like abrasion and moisture. |
III. Technical Specifications
3.1 Electrical Characteristics
| Specification | Details |
|---|---|
| Rated Voltage | 0.6/1 kV (600/1000V) |
| Maximum AC Operating Voltage | 0.7/1.2 kV |
| Maximum DC Operating Voltage | 0.9/1.8 kV |
| AC Test Voltage | 3 kV |
The cable’s electrical properties ensure stable power delivery to essential mining equipment, minimizing downtime caused by electrical faults.
3.2 Conductor Engineering
| Characteristic | Details |
|---|---|
| Conductor Composition | Finely stranded tinned copper wires (0.3mm) for flexibility and conductivity. |
| PE-Conductor Integration | Conductive tape distributed across the core to enhance performance. |
| Conductor Insulation | EPR (Ethylene Propylene Rubber) for reliable electrical insulation. |
3.3 Structural Components
| Layer | Material | Key Features |
|---|---|---|
| Inner Sheath | Semi-conductive rubber | Ensures smooth electrical performance and protects conductors. |
| Armouring | Polyester anti-torsion braid | Resists mechanical stress and torsional forces. |
| Outer Sheath | Rubber compound (5GM5) | Abrasion-resistant and compliant with DIN VDE 0207 part 21. |
| Color | Yellow | Enhances visibility for safe operation in low-light settings. |
IV. Performance Capabilities
4.1 Thermal Performance Parameters
| Parameter | Value |
|---|---|
| Maximum Conductor Temperature | 90°C |
| Short Circuit Temperature | 250°C |
| Fixed Installation Temp. Range | -40°C to +80°C |
| Flexible Operation Temp. Range | -25°C to +60°C |
This exceptional thermal range allows the cable to perform reliably even in the harsh, fluctuating conditions of underground mining.
4.2 Mechanical Resilience
| Characteristic | Value |
|---|---|
| Minimum Bending Radius | 5 x Diameter at 15 N/mm² tensile load |
| Enhanced Flexibility | 2.3 x Diameter at 5 N/mm² tensile load |
The cable’s flexibility ensures easy handling during installation and smooth operation in dynamic environments.
V. Compliance and Certifications
5.1 Regulatory Standards
The Feichun TENAX CTE Cable is certified for use across various jurisdictions:
| Standard | Certification |
|---|---|
| Primary Standard | DIN VDE 0250 part 812 |
| Fire Resistance | EN 60322-1-2, IEC 60322-1-2 |
| Oil Resistance | EN 60811-404, IEC 60811-404 |
| Other Approvals | Fire Certificate (Russia), TR, GOST K, GOST B |
5.2 Environmental Resistance
| Feature | Benefit |
|---|---|
| Ozone and Moisture Resistance | Ensures durability in harsh underground conditions. |
| Abrasion Resistance | Extends cable life under mechanical stress. |
VI. Critical Considerations for Mining Professionals
6.1 Installation Best Practices
| Best Practice | Why It Matters |
|---|---|
| Adhere to bending radius limitations | Prevents damage and extends cable lifespan. |
| Use protective cable chains | Minimizes abrasion and stress during operation. |
| Conduct regular inspections | Identifies wear and ensures consistent performance. |
| Manage tensile loads carefully | Avoids stretching or compromising the conductor integrity. |
6.2 Potential Challenge Mitigation
| Challenge | Solution |
|---|---|
| Cable fatigue in dynamic conditions | Designed with advanced anti-torsion braiding for longevity. |
| Damage from environmental exposure | Durable outer sheath resists moisture, ozone, and chemicals. |
| High operational stress | Flexible conductors and robust materials minimize mechanical stress. |
VII. Comparative Technological Advantages
| Feature | Advantage |
|---|---|
| Mechanical flexibility | Reduces fatigue during constant movement and bending. |
| Advanced insulation | Maintains stable electrical performance in extreme conditions. |
| Global certifications | Approved for use in diverse underground mining environments. |
| Specialized for mobile machinery | Ensures consistent power supply for coal-cutting machines. |
VIII. Conclusion
The Feichun TENAX CTE 3kV Cable is a cutting-edge solution for underground mining professionals who demand reliability, safety, and performance. Engineered to excel in extreme conditions, this cable meets and exceeds the expectations of modern mining operations.
Professional Recommendation
For mining professionals seeking a durable and efficient power connection solution, the Feichun TENAX CTE Cable is a standout choice. Its robust materials, flexible design, and compliance with international standards make it an investment in safety and operational efficiency.
Contact Feichun’s support team today to learn how this cable can elevate your mining operations.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
