Underground mining operations demand equipment that stands up to tough conditions, and Feichun PROTOMONT (S) reeling cables deliver just that.
Designed specifically for trailing and reeling applications in underground environments, these cables excel in handling dynamic loads, frequent directional changes, and high mechanical stress.
Fully compliant with DIN VDE 0250-812 standards and certified by MA (China) and the Fire Certificate of the Russian Federation, the PROTOMONT (S) is a top choice for reliability and safety.
This article delves into the cable's exceptional features, practical applications, and the benefits it brings to underground mining operations.
Applications
The Feichun PROTOMONT (S) cable is tailor-made for:

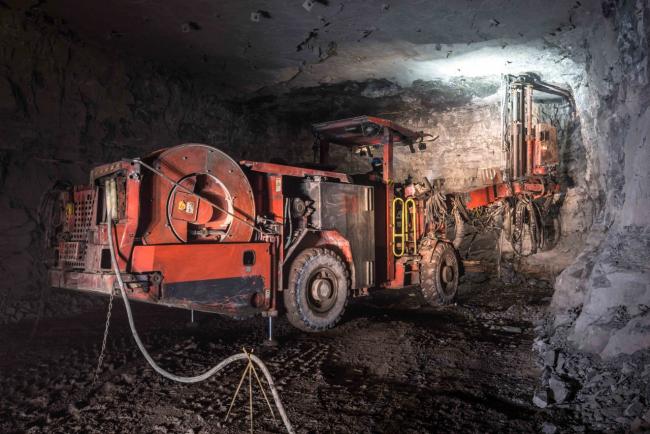

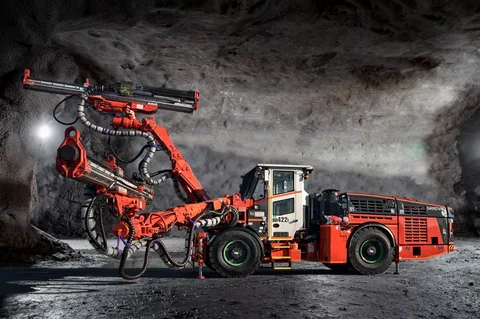

Underground Mining Operations: Ideal for powering scoops (LHDs), mono-spiral reels, and cylindrical reels.
Dynamic Environments: Designed to perform under conditions of frequent directional changes, extreme abrasion, and dynamic tensile stress.
Problem Solving: Addresses common issues such as sheath damage, excessive wear, and reduced cable life, ensuring longer operational durability.
Its robust design ensures operational reliability in some of the harshest mining conditions, providing peace of mind to operators and reduced downtime.
Key Design Features
The technical design of the PROTOMONT (S) cable reflects its commitment to excellence:
Conductor: Electrolytic tinned copper, class FS, for high flexibility and optimal conductivity.
Core Arrangement: Three main cores with three control/earth cores, providing a balanced and durable structure.
Insulation: Made of EPR compound type 3GI3, offering superior heat resistance and electrical safety.
Reinforcement: Reinforced with a polyester thread braid and vulcanized bonding, ensuring exceptional mechanical stability.
Inner Sheath: EPR compound type GM1B for added protection.
Outer Sheath: Synthetic elastomer compound 5GM5, colored yellow for visibility, abrasion resistance, oil resistance, and flame retardancy.
These features make the cable not just reliable but also highly adaptable to varying operational demands.
Technical Specifications
Electrical Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV (640/1140V) |
| Maximum Operating Voltage | 0.7/1.2 kV (AC) / 0.9/1.8 kV (DC) |
| AC Test Voltage | 2.5 kV |
Chemical Parameters
| Resistance | Standards |
| Fire Resistance | EN 60332-1-2, IEC 60332-1-2 |
| Oil Resistance | EN 60811-404, IEC 60811-404 |
| Weather Resistance | Resistant to ozone, UV, and moisture |
Thermal Parameters
| Parameter | Min Value | Max Value |
| Max Conductor Temperature | - | 90°C |
| Ambient Temp. (Fixed) | -40°C | 80°C |
| Ambient Temp. (Flex) | -25°C | 60°C |
Mechanical Parameters
| Parameter | Value |
| Max Tensile Load | 30 N/mm² |
| Torsional Stress | 50°/m |
| Bending Radii | Min. 4 × D |
| Travel Speed Max | 160 m/min |
Cable Sizes and Capacities
| Cross Section (mm²) | Outer Diameter (mm) | Net Weight (kg/km) | Tensile Force (N) | Current (A) | Short Circuit Current (kA) | |
| 3x16+3x(1.5) | 31.1–34.4 | 1748 | 1440 | 99 | 1.95 | |
| 3x25+3x(1.5) | 36.9–39.9 | 2409 | 2250 | 131 | 3.05 | |
| 3x35+3x(1.5) | 41.2–44.2 | 2676 | 3150 | 162 | 4.27 | |
| 3x50+3x(1.5) | 44.5–47.5 | 3800 | 4500 | 202 | 6.1 |
Advantages and Problem-Solving Capabilities
Abrasion Resistance
The yellow outer sheath, made of synthetic elastomer, is specifically designed to withstand heavy friction and protect the cable in reeling operations.
Mechanical Stability
The reinforced polyester thread braid and vulcanized bonding provide superior mechanical stability, reducing wear and extending the cable's lifespan.
Flexibility
Thanks to its EPR insulation and flexible conductor design, the cable handles dynamic loads efficiently, making it ideal for mining operations with frequent reeling and directional changes.
Thermal Performance
Capable of operating in extreme temperatures, the cable ensures consistent performance in both hot and cold environments.
Compliance and Certifications
The Feichun PROTOMONT (S) cable meets a wide range of global standards, including:
DIN VDE 0250-812: Compliance with German mining cable standards.
MA Certification: Approved for use in Chinese mines.
Fire Certificate of the Russian Federation: Ensures fire safety compliance in Russian mines.
Additional certifications like TR-Certificate, GOST K, and GOST B.
These certifications validate the cable’s quality and reliability for use in critical underground mining applications.
Conclusion
The Feichun PROTOMONT (S) Reeling Cable stands out as a robust and reliable choice for underground mining operations. With its durable design, high mechanical stability, and compliance with international standards, it ensures safe and efficient power delivery under the toughest conditions.
The cable’s ability to withstand dynamic loads, frequent reeling, and abrasive environments makes it an indispensable asset for mining professionals.
