Industrial applications demand rugged, reliable solutions, especially in high-stress settings like mining and tunnel construction.
The Feichun PROTOMONT NSSHOEU .../3E is engineered to withstand these challenges. With superior materials, innovative design, and a track record of performance, this cable delivers unmatched durability and efficiency in critical applications.
Product Overview
Key Identification
- Brand: PROTOMONT
- Type Designation: NSSHOEU .../3E
- Voltage Rating: 0.6/1 kV
- Standardization: Compliant with DIN VDE 0250-812
Primary Application Domains
This cable is built for environments where reliability is non-negotiable:

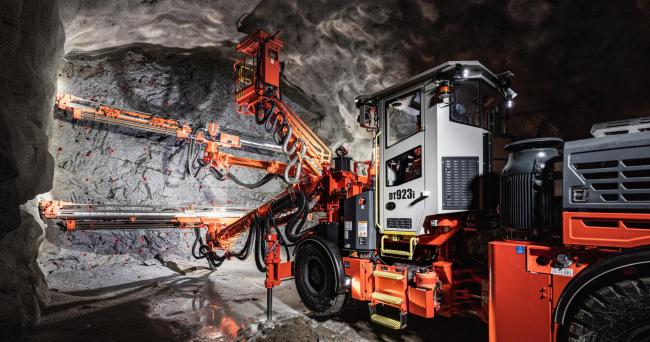

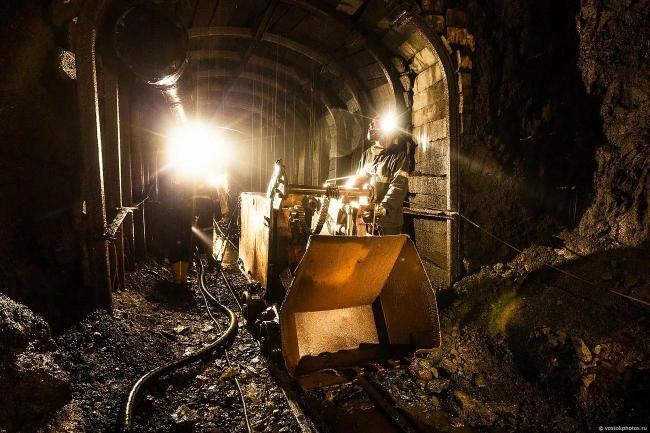

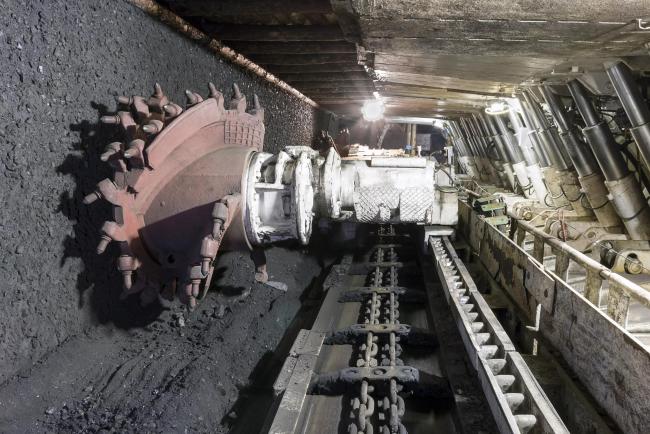

- Underground mining installations
- Tunnel construction projects

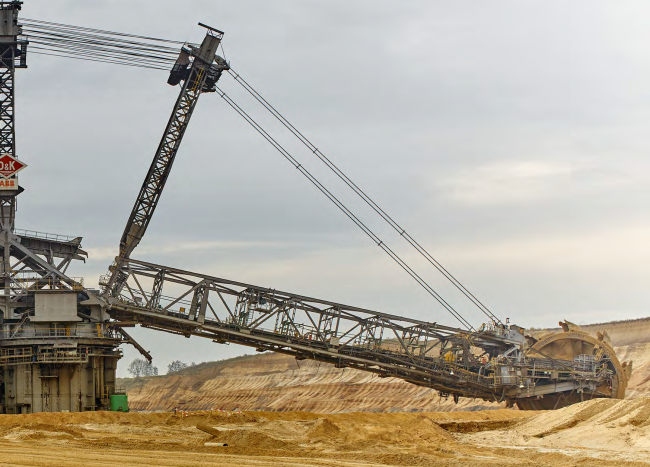

- Open-cast mining operations
- Quarry sites and similar industrial environments
Power supply for:
Motors
Distribution boards
Semi-fixed installation systems
Certifications and Approvals
The PROTOMONT NSSHOEU .../3E is tested and approved by leading global standards:
| Certification | Region |
|---|---|
| MA | China (Special Design) |
| MSHA P-189-3 | United States |
| BAS Fire Certificate | Bosnia-Herzegovina |
| TR-Certificate | Russian Federation |
| GOST K | Kazakhstan |
| GOST B | Belarus |
Technical Specifications
Electrical Characteristics
The electrical performance ensures operational safety and efficiency:
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV (Alternative: 640/1140V) |
| Max AC Operating Voltage | 0.7/1.2 kV |
| Max DC Operating Voltage | 0.9/1.8 kV |
| AC Test Voltage | 3 kV |
Conductor Engineering
- Conductor Material: Untinned copper, finely stranded (Class 5)
- PE-Conductor Configuration:
- Individual-concentric or overall concentric spinning
- Untinned copper wire arrangement
Core Characteristics
- Core Count: Available in three, four, or five cores
- Core Coloration: Black, Blue, Brown, Grey
Structural Composition
Insulation and Protective Features
| Feature | Material | Compound Type |
|---|---|---|
| Insulation | PROTOLON | EPR-based (3GI3) |
| Inner Sheath | Vulcanized Rubber | GM1B |
| Outer Sheath | PROTOFIRM | Chlorinated Rubber (5GM5) |
The outer sheath’s yellow color enhances visibility and safety.
Wire Spinning Technique
For enhanced mechanical durability, closed-lay spinning of steel/copper wires is used, along with vulcanized bonding between inner and outer sheaths.
Performance Capabilities
Thermal Resistance
The cable is designed to perform under extreme temperatures:
| Condition | Temperature Range |
|---|---|
| Maximum Conductor Temp. | 90°C |
| Short Circuit Temp. | 250°C |
| Fixed Installation | -40°C to +80°C |
| Flexible Operation | -25°C to +60°C |
Environmental Resilience
The PROTOMONT NSSHOEU .../3E offers:
- Fire Resistance:
- Compliant with EN 60332-1-2 and IEC 60332-1-2
- Oil Resistance:
- Tested to EN 60811-404 and IEC 60811-404
- Weather Resistance:
- Fully resistant to ozone, moisture, and extreme conditions
Mechanical Characteristics
Structural Durability
| Feature | Specification |
|---|---|
| Max Tensile Load | 15 N/mm² |
| Bending Radius | Meets DIN VDE 0298 Part 3 requirements |
Professional Considerations and Application Guidance
Critical Selection Criteria
Choosing the right cable is critical. When selecting the PROTOMONT NSSHOEU .../3E, ensure:
Compatibility with specific industrial equipment
Consideration of environmental challenges, such as moisture or heat
Adherence to proper installation procedures as per manufacturer guidelines
Regular inspections to ensure long-term safety and performance
Potential Application Challenges
The PROTOMONT NSSHOEU .../3E overcomes common challenges such as:
- Mechanical stress: The durable design resists wear and tear from movement.
- Electrical stability: Advanced insulation ensures consistent performance.
- Thermal variations: Designed to handle fluctuating underground temperatures.
- Premature degradation: Robust materials extend operational life.
Compliance and Quality Assurance
This cable undergoes rigorous testing, earning certifications that meet international standards. It is engineered for reliability, even in the most demanding environments. Feichun’s strict quality assurance guarantees:
- High performance
- Consistent safety
- Comprehensive documentation for traceability
Conclusion
The Feichun PROTOMONT NSSHOEU .../3E is more than just a cable—it’s a dependable partner in industrial operations.
Whether it’s mining, tunnel construction, or heavy-duty industrial use, this cable delivers superior performance, safety, and durability.
Recommended Next Steps
- Consult Feichun’s technical support for tailored advice.
- Request a detailed datasheet for full specifications.
- Conduct a compatibility assessment for your site-specific needs.
For the ultimate in industrial cable solutions, trust Feichun PROTOMONT NSSHOEU .../3E. It’s the reliable choice for challenging environments.
Important Note: Always involve a qualified electrical engineer during the selection and installation process to ensure compliance with your application’s requirements.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
