The Feichun SHD-GC Power Cable is a high-performance, three-conductor, shielded portable power cable designed to meet the rigorous demands of industrial applications. Engineered for severe service conditions, it ensures maximum operational safety while delivering exceptional durability and electrical stability.
Whether used in underground mining, open-pit quarries, or for mobile power distribution, this cable provides a reliable solution for industries requiring high-voltage, high-durability cables.
1. Product Identification
1.1 Detailed Product Specifications
| Specification | Details |
|---|---|
| Product Type | SHD-GC Shielded Round Portable Power Cable |
| Voltage Rating | 5000 Volts |
| Temperature Range | -50°C to 90°C |
| Conductor Configuration | Three-Conductor Design |
| Unique Identifier | P-7K-102-046 |
Designed to withstand extreme temperatures and heavy-duty operations, the Feichun SHD-GC Power Cable delivers unparalleled performance in demanding environments.
2. Comprehensive Conductor Construction
2.1 Conductor Specifications
| Component | Details |
|---|---|
| Material | Coated Annealed Copper |
| Configuration | Rope-lay-stranded (ASTM B172-compliant) |
| Size Range | 6 AWG through 500 kcmil |
| Special Features | Integrated Ground-Check Conductor and high-strength insulation |
The inclusion of a ground-check conductor ensures consistent safety monitoring and fault detection, making it ideal for environments where electrical safety is critical.

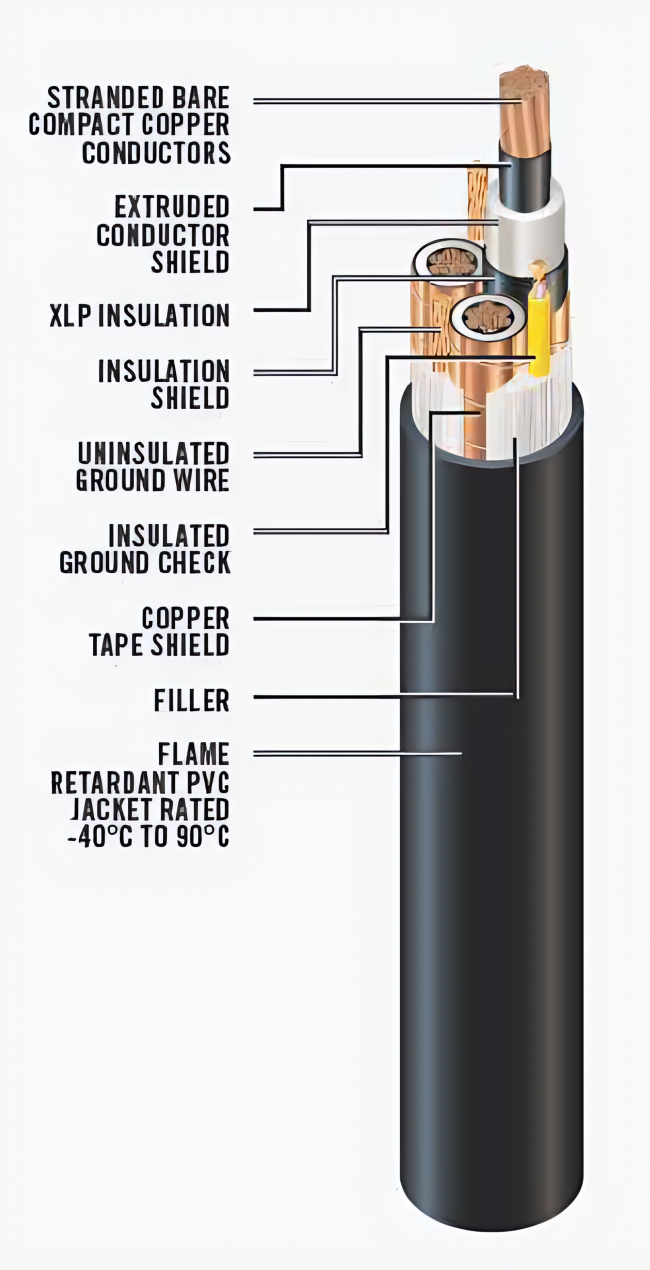

2.2 Conductor Layering System
| Layer | Description |
|---|---|
| Extruded Strand Shield (ESS) | Thermosetting semi-conducting control layer ensures uniform stress |
| Insulation Shield | Flexible coated copper/textile braid over non-conducting tape |
This multi-layer construction reduces uneven electrical stress and prolongs the cable's lifespan in high-voltage operations.
3. Advanced Material Engineering
3.1 Insulation Technology
| Component | Details |
|---|---|
| Primary Insulation | Ethylene Propylene Rubber (EPR) for electrical insulation |
| Jacket Material | Chlorinated Polyethylene (CPE) with reinforced two-layer design |
| Curing Process | Lead-cured technology for added strength |
The EPR insulation ensures excellent electrical properties, while the CPE jacket offers exceptional protection against environmental and mechanical stressors.
3.2 Jacket Performance Characteristics
| Resistance To | Benefit |
|---|---|
| Heat, Steam, and Moisture | Ensures reliability in humid or high-temperature environments |
| Chemical Exposure | Withstands contact with oils, acids, and other industrial chemicals |
| Radiation and Corona | Reduces degradation in electrically harsh conditions |
| Flame and Sunlight | Maintains integrity in outdoor and fire-prone areas |
This rugged jacket design is perfect for environments like slag reclaiming facilities and quarries, where cables are exposed to harsh conditions.
4. Performance Advantages
4.1 Electrical Characteristics
| Feature | Benefit |
|---|---|
| High Dielectric Strength | Prevents electrical breakdown during operation |
| Low Dielectric Loss | Enhances efficiency in power transmission |
| Uniform Stress Elimination | Reduces wear and ensures consistent performance |
| Electrical Stability | Operates reliably under stress and fluctuating conditions |
The Feichun SHD-GC Power Cable is designed for safe, consistent operation, even in high-stress electrical systems.
4.2 Mechanical Durability
| Resistance To | Advantage |
|---|---|
| Cutting and Abrasion | Withstands rough handling and frequent movement |
| Impact and Flame | Operates safely in high-risk areas |
| Environmental Degradation | Reliable performance under long-term exposure to UV and chemicals |
The cable’s mechanical resilience significantly reduces downtime and maintenance costs, offering long-term reliability.
5. Specialized Application Domains
5.1 Primary Use Cases
| Application | Description |
|---|---|
| Trailing Cable | Powers AC mining equipment, including drills and loaders |
| High-Voltage Distribution | Delivers reliable power in severe industrial environments |
| Mobile Power Systems | Facilitates frequent relocation in dynamic work conditions |
5.2 Unique Deployment Advantages
| Environment | Example Use Case |
|---|---|
| Open-Pit Mines | Supplies mobile equipment in extraction operations |
| Quarries | Operates in dusty, abrasive conditions |
| Gantry Cranes | Delivers power to high-torque lifting equipment |
This versatility makes the Feichun SHD-GC Power Cable an essential solution across multiple industries.
6. Comprehensive Compliance Certifications
| Certification | Regulatory Significance |
|---|---|
| ICEA S-75-381 | Meets portable power cable standards |
| MSHA Approved | Certified for safe use in mining applications |
| CSA C22.2 No. 96 | Canadian standard for portable power cables |
These certifications ensure the Feichun SHD-GC Power Cable meets global safety and performance standards.
7. Additional Configuration Options
| Feature | Details |
|---|---|
| Custom Lengths | Tailored to project-specific requirements |
| Jacket Colors | Available for easy identification |
| Special Jackets | Optional TPU materials for specialized applications |
8. Installation and Maintenance Guidelines
8.1 Best Practices
| Tip | Recommendation |
|---|---|
| Cable Management | Use reels and avoid excessive tension |
| Inspections | Regularly check for wear, cuts, or other damage |
| Routing | Ensure gradual bends to maintain conductor integrity |
8.2 Performance Monitoring
| Task | Frequency |
|---|---|
| Ground-Check Testing | Monthly to ensure electrical continuity |
| Temperature Monitoring | Continuous for extreme environments |
| Preventive Maintenance | Annually, or as required by usage conditions |
9. Technical Support and Consultation
Feichun Cable offers:
- Specialized application guidance
- Tailored cable selection assistance
- Technical support for installation and operation
Conclusion
The Feichun SHD-GC Power Cable offers unmatched performance and safety in demanding industrial environments. Engineered for maximum durability, it is the perfect solution for businesses seeking reliable, high-performance power cables.
For more information or to discuss your project needs, contact Feichun Cable Technical Support today.
Disclaimer: Always follow local electrical codes and project-specific requirements during installation and use.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
