Feichun Control And Signaling PROTOMONT(MSR) 2YSLGCGOEU 250V For Measured Value And Process Data Processing And Automation Units In Open-Cast Mining Applications
Feichun Control and Signaling PROTOMONT(MSR) 2YSLGCGOEU 250/250V
Data, Signal, and Control Cables for Mining Installations
Feichun's PROTOMONT(MSR) 2YSLGCGOEU 250/250V cables redefine control and signaling systems in modern mining environments.
Designed specifically for open-cast and underground mining applications, these cables ensure seamless data transmission, reliable signaling, and robust control in the harshest environments.
Key applications include:
- Automation units in mining operations.
- Measured value processing for conveyor belts and material handling equipment.
- Process data communication for heavy machinery in open-cast mines.
These cables combine advanced materials and cutting-edge manufacturing techniques to meet the high demands of the mining industry.
Standards Compliance
The PROTOMONT(MSR) series is compliant with international standards, ensuring safety, durability, and performance:
- DIN VDE 0250-1: General cable specifications.
- DIN EN 60228/IEC 60228/VDE 0295: Conductor design and classification.
- DIN EN 60332-1-2/IEC 60332-1-2: Fire resistance requirements.
- DIN EN 60811-404/IEC 60811-404: Resistance to environmental stress and chemical exposure.

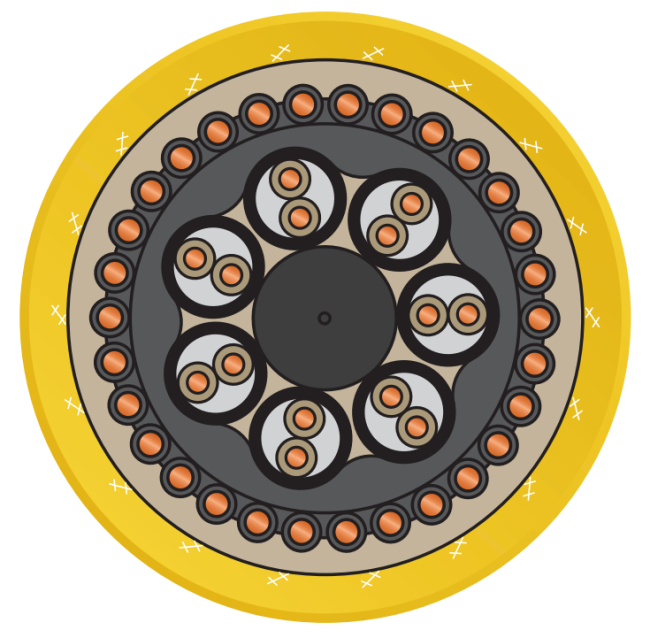

Technical Construction
Core Components
These cables are engineered for reliable performance and maximum efficiency. Key features include:
| Component | Description | Benefits |
|---|---|---|
| Conductor Material | Class 5 finely stranded bare copper | Enhanced flexibility and conductivity. |
| Core Insulation | Polyethylene (PE) | Superior electrical properties. |
| Core Layout | Paired with non-hygroscopic serving | Stable transmission and durability. |
| Identification | White cores with black digit imprints | Simplified installation and maintenance. |
Sheathing and Screening
The cable design focuses on maximum protection and operational efficiency:
| Component | Material | Advantages |
|---|---|---|
| Inner Sheath | Rubber polychloroprene (PCP) | Resistance to abrasion and oil. |
| Screening | Tinned copper braid | EMI and RFI shielding. |
| Outer Sheath | Chlorinated polyethylene (CM/CPE) | UV, ozone, and chemical resistance. |
Electrical Characteristics
Voltage Specifications
The PROTOMONT(MSR) cable delivers stable performance under varied voltage conditions:
| Specification | Value | Application Benefits |
|---|---|---|
| Nominal Voltage | 250/250V | Ideal for low-voltage systems. |
| Maximum DC Voltage | 350V | Enhanced safety margin. |
| Test Voltage | 1.5kV | Reliable insulation integrity. |
Data Transmission Properties
Designed for high-fidelity signal transfer, these cables excel in:
- EMI/RFI Protection: Ensures clean signal transmission.
- Frequency Stability: Maintains integrity across operational ranges.
- Low Cross-Talk: Optimizes communication reliability.
Environmental Performance
Temperature Ratings
| Condition | Range | Benefits |
|---|---|---|
| Fixed Installation | -40°C to 60°C | Operational in extreme environments. |
| Flexible Installation | -25°C to 60°C | Adaptable to movement and relocation. |
| Short Circuit Limit | 150°C | Protection during electrical faults. |
Environmental Resistance
| Property | Performance | Advantage |
|---|---|---|
| Oil Resistance | Yes | Longer service life. |
| UV and Ozone | Resistant | Suitable for outdoor use. |
| Chemical Tolerance | Withstands harsh chemical exposure | Ideal for mining environments. |
Mechanical Specifications
Installation Parameters
| Parameter | Specification | Benefit |
|---|---|---|
| Bending Radius | 4x diameter (fixed) | Protects internal components. |
| Torsional Stress | ±25°/m | Withstands dynamic movement. |
| Tensile Strength | 15 N/mm² | Prevents mechanical failure. |
Durability Features
Built for longevity, these cables excel in:
- Abrasion Resistance: Ideal for rugged terrains.
- Impact Resistance: Withstands heavy machinery contact.
- Flexibility: Adapts to dynamic installations.
Installation Guidelines
Preparation Procedures
Ensure successful installation by following these steps:
- Assess site conditions.
- Verify temperature suitability.
- Gather proper tools and safety gear.
Installation Methods
- Use proper pulling techniques to avoid stress on the cable.
- Secure cables with supports to maintain alignment.
- Test connections before operation.
Application-Specific Considerations
Open-Cast Mining
- Integration with conveyor systems enhances operational efficiency.
- Environmental exposure protection ensures longevity.
Underground Mining
- Moisture and chemical resistance combat challenging conditions.
- Easy access for maintenance improves reliability.
Common Challenges and Solutions
Installation Challenges
- Space Constraints: Use flexible routing techniques.
- Temperature Variations: Ensure proper cable insulation.
Operational Issues
- Signal Interference: Rely on robust EMI shielding.
- Mechanical Stress: Employ secure installation methods.
Maintenance and Troubleshooting
| Maintenance Task | Frequency | Importance |
|---|---|---|
| Visual Inspections | Monthly | Identifies wear and tear. |
| Testing Procedures | Quarterly | Verifies electrical performance. |
| Documentation | Ongoing | Tracks cable lifecycle. |
Selection and Design Considerations
System Design
- Evaluate load requirements.
- Assess environmental exposure.
- Plan installation methods to reduce wear.
Cost-Benefit Analysis
- Initial Investment: High-quality materials reduce future expenses.
- Maintenance Costs: Durable construction minimizes repairs.
![]()
Safety Considerations
Safety Considerations
| Safety Measure | Application | Benefit |
|---|---|---|
| Personal Equipment | During installation | Reduces injury risks. |
| Monitoring Systems | Operational phase | Detects potential faults early. |
Future Considerations
As technology advances, Feichun cables will adapt to:
- Enhanced automation requirements.
- Stringent environmental regulations.
- Evolving industry demands.
Feichun PROTOMONT(MSR) cables are the reliable choice for mining installations, offering unmatched performance and durability.
Their robust design ensures safe and efficient operations, even in the harshest environments.
Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
