Outdoor WIFI APP 9x18 Watt RGBWA+UV 6IN1 LED Wireless Battery Waterproof Par Light

【How to connect】

A. One-button power on / off function. After selecting the display function to "POWR" for confirmation, select the upper and lower keys to the "ON" state. Press the menu button to turn on the device and press the menu button to turn off the device.

B. Hide the current regulation. In the A001 menu mode, press and hold the OK key for 5 seconds to automatically enter the current regulation function. Use the up and down keys to change the value. Press the OK key once to change the adjustment color (save the machine). Press the OK key frequently to change the on-line adjustment current (save the machine). The host will blink once when the host is saving. Just go back.

C. When using mobile APP control software;

Step 1: Scan the QR code to download and install the software.

Step 2: Adjust the display function of the lamp to WIFI mode, press the button and wait, the display on the display will show “LXXX”.

Step 3: Open the main interface of the mobile phone, find the "Settings" icon and enter. Open the mobile WIFI and click to search for the WIFI name. After the search, find the relevant "LXXX" and connect.

Step 4: Find the control APP software on the main interface of the mobile phone again and open the connection successfully.

D. This version supports two communication protocols, DMX512 and RDM (remote address code can be set)

【Specification】

Power supply: AC110V-250V

Frequency: 50-60Hz

Light source: 9pcs 18W high brightness 6 in 1 leds

Lamp life: 6-10 ten thousand hrs

LED angle: 15/25/40 degree

Color: 16.7 million kinds of color change

Control channels: 6/10 CH

Waterproof: IP65

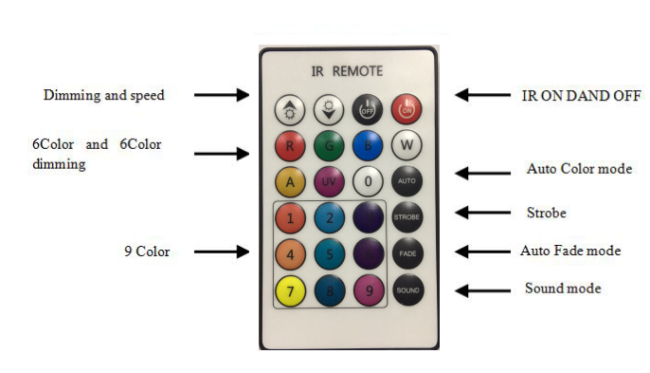

Control mode: DMX512, master/slave, auto, sound active, infrared control

Automatic model (by function button) : color change, color strobe, color dimmer, color gradual change/color jump change

Operation menu: 4 digit digital LED display

size: 270*270*330mm

N.W: 5.5kg

【Cautions】

• Pls keep it full charged if doesn't been used for a long time!
• Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
• Unplug mains lead before opening the housing!
• To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
• This fixture must be earthed!
• Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!

【Packing list(6in1)】

• Battery city color x6
• Charging Flight case(10in1) x1
• Remote control x6
• Charging cable x6
• User Manual x1

【Product Description】

1.Packing method (the default package is flightcase,please contact us if need the carton)
2.Shipping Method: By Air, sea, or Express(DHL, UPS, FedEx, etc) as request.
3.Payment Methods: T/T, Paypal, Western Union, MoneyGram,Credit Card
