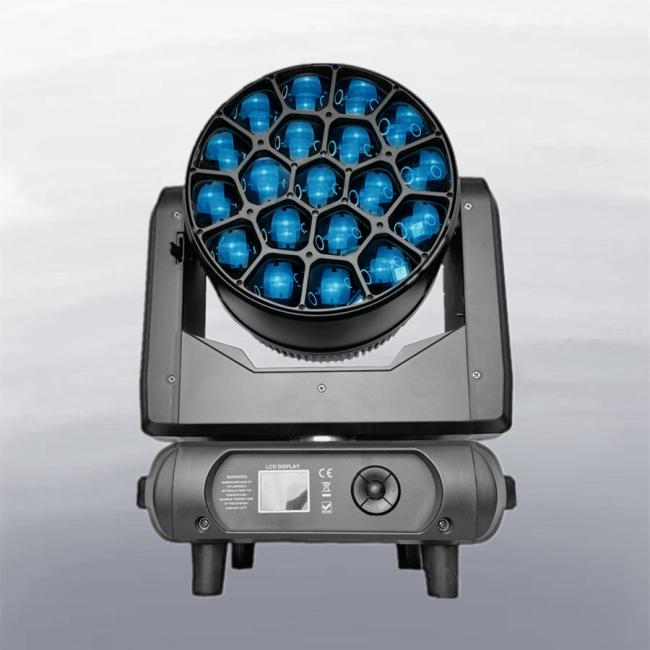

Dj Disco Event Stage Wash Lighting Big Bee Eye 19x20w
Clay Paky K10 Channel Library Big Bee Eye 19x20w Led Wash Zoom Moving Head Stage Dj Disco Event Bar Lights
【Specification】
Power supply
AC110-240V 50/60 Hz
Power consumption: 800W
Light source
LED19*20W Brightness RGBW Tyshine LEDs
Individual LED control
Average life: 50,000 hrs
Color temperature:2500K-8000K
Effect
Zoom angle: 4-60°
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity
With“vortex”and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
2 color mode(RGBW / CMY)
Strobe: 1-25 hz, random and pulse flash
Control
Pan/Tilt: 540/270°
Control mode: DMX512
DMX channels: 21/35/78/92/97

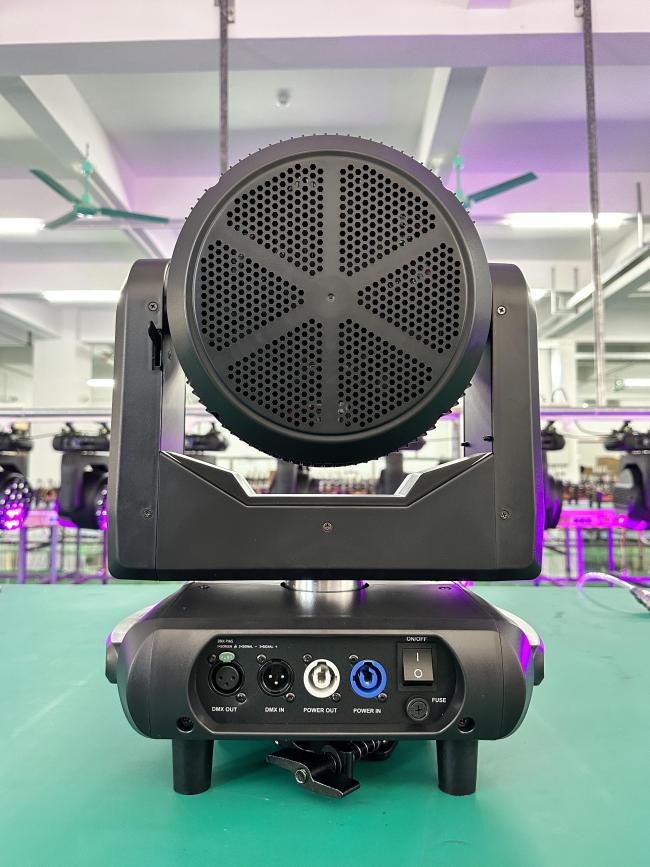

Powercon in and out,XLR in & out: 3-pin
Net weight: 13.4kg
| Wide Voltage | AC100-240V,50/60Hz |
| Source | LED19*20W Brightness RGBW Tyshine LEDs |
| LED | Individual LED control |
| Effect |
Rotation Lens, With ”vortex” and “kaleidoscope” effects |
| Color temperature | 2500K-8000K |
| Dimmer | 4 Liner dimming curves |
| Cooling System | Auto speed fan of temperature,Silent Fans |
| Channel | 21/35/78/92/97 |
| Wash Zoom Angle | 4-60 degrees |
| Color Mixing System | linear RGBW+CMY mixing system |
【Packing list】
- 1 × LED Wash moving head
- 2 × Omega bracket or Folding clamp
- (the default is Omega bracket,please contact us if need the folding clamp)
- 1 × Power cable
- 1 × DMX cable
- 1 × Safety rope
- 1 × User manual
Folding clamp,more convenient for you to use
1.After confirming the product with the customer, prepare the materials2,Solder circuit board
3.Color wheel,gobo wheel,prism wheel and frost wheel

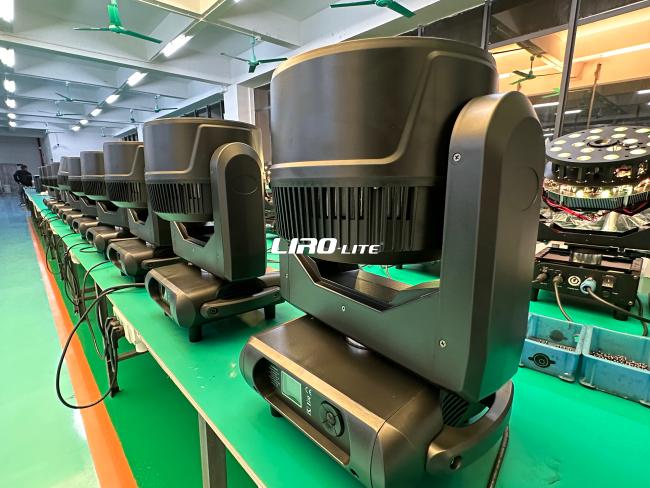

4.Assemble parts
5.Aging test before shipping
6.Waterproof test
7.Packaging and labeling( Flightcase can be customized your own LOGO)
8.Loading and delivery
【Packing & Shipping & Payment】
1.Packing method (the default package is carton,please contact us if need the flightcase)
2.Shipping Method: By Air, sea, or Express(DHL, UPS, FedEx, etc) as request.
3.Payment Methods: T/T, Paypal, Western Union, MoneyGram,Credit Card,Cash
