High-Precision and High-Reliability Servo Welding Head Series

• Technical Specifications

Product Drawing
Model	ND-30
Drive method	Motorized Servo
Force range	80N-500N
Electrode Type	customized
Standard Unit	Pressure,Displacement
electrode strok	40mm
Size L*W*H mm	435 * 179 * 272
Weight	≈18kg

• Real-Time Display : Real-time display of pressure-displacement curve, data storage and upload to MES system.

• Speed-Programmable : Customizable multi-stage speed control programs integrated with adaptive contact protection mechanisms enable soft landing through dynamic trajectory optimization of electrode movement, effectively refining contact dynamics to ensure zero workpiece damage during precision welding processes.

• Efficiency-Driven Motion : Optimized motion trajectory synchronization with dynamic response control minimizes non-productive travel, enhances welding efficiency, reduces idle energy consumption, and maintains high yield rates.

• Pressure-Initiated : Closed-loop pressure control enables high-precision pressure regulation, effectively eliminates air pressure fluctuations and mechanical shocks, and significantly enhances welding stability, consistency, and process adaptability.

• Pressure Recipe On-Demand Invocation : Pre-configured with 32 programmable welding pressure parameters, each independently assignable to dedicated welding parameter sets, achieving intelligent matching for different weld points on the same workpiece, ensuring multi-point process consistency and enhancing welding precision.

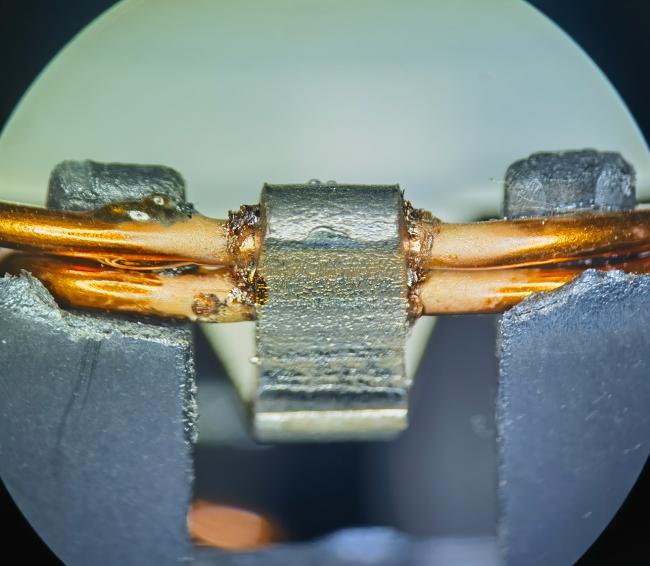

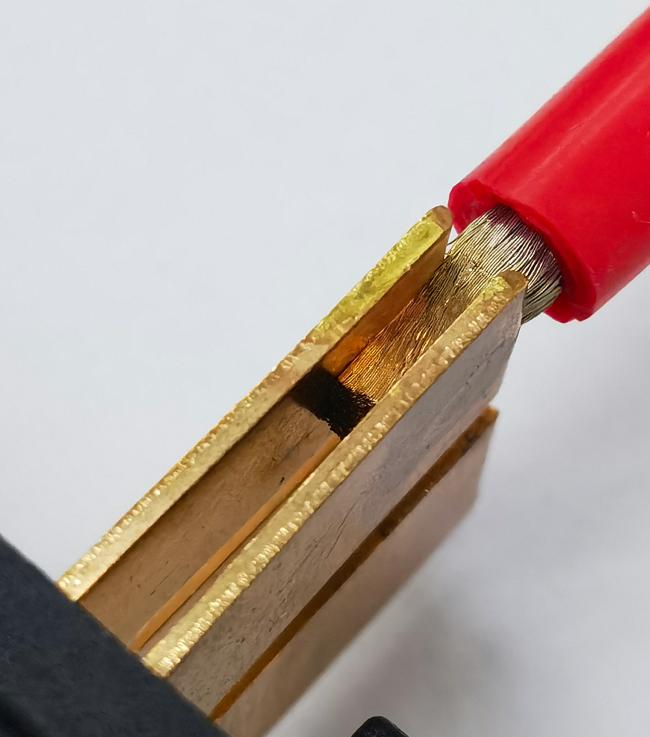

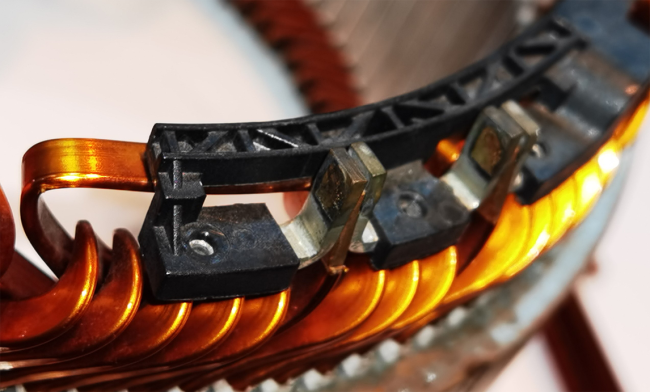

• Application
