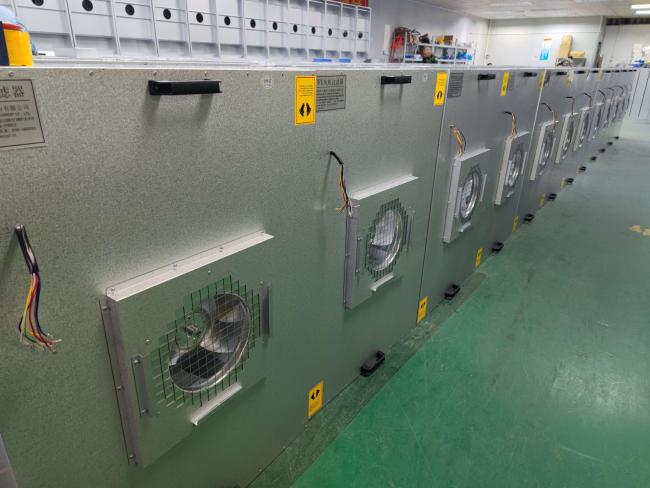

AC 200W FFU Fan Filter Unit For Laminar Air Flow Cleanroom 575*575*320 Mm
ZJNF easy install AC 200W FFU Fan Filter Unit for laminar air flow cleanroom aluminum frame silver type
Features
FFU stands for Fan Filter Unit, which is a type of air filtration system used in cleanroom environments to filter and circulate air. The purpose of an FFU is to provide a continuous supply of clean air to a cleanroom or other controlled environment.
The unit typically consists of a fan, a filter, and a housing.
FFUs are available in a range of sizes and configurations, and can be customized to suit specific applications.
They are typically used in conjunction with other cleanroom equipment, such as air showers, to maintain a clean and controlled environment.
Application
- Cleanroom Entrances
- Pharmaceutical and Biotechnology Industries
- Semiconductor Manufacturing
- Medical and Healthcare Facilities
- Food and Beverage Processing
Technical Data
| FFU Model | 2X2 | 3X2 | 4X2 | 4X4 |
| FFU dimension | 575*575*320mm | 875*575*320mm | 1175*575*320mm | 1175*1175*370mm |
| Filter dimension | 570*570*69mm | 870*570*69mm | 1170*570*69mm | 1170*1170*69mm |
|
Air Flow |
400-600 m³/h | 800-900 m³/h | 1000-1100 m³/h | 1600-1700 m³/h |
| Speed Control | 3 Gears | |||
| Voltage | 110V/120V 50HZ/60HZ | |||
| Filtration Efficiency | 99.99% @ 0.3um | |||
| Material |
SUS304/201 Stainless Steel/Aluminum Zinc Coated Sheet |
|||
| Weight | 16KG | 20KG | 21KG | 45KG |
Product Details
