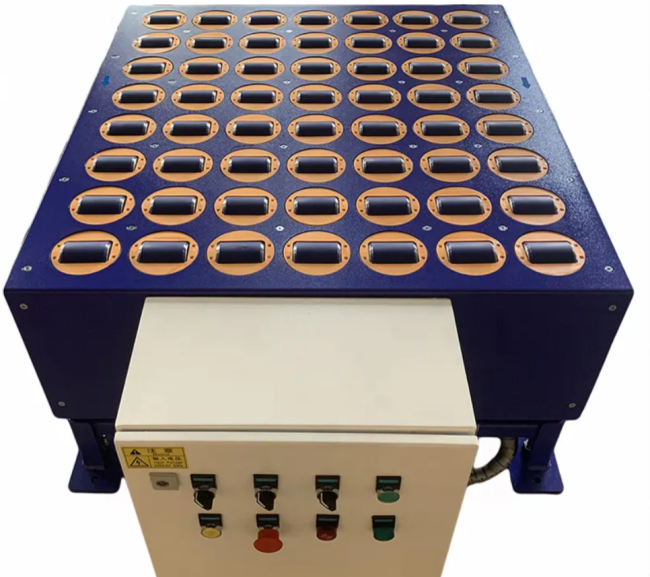

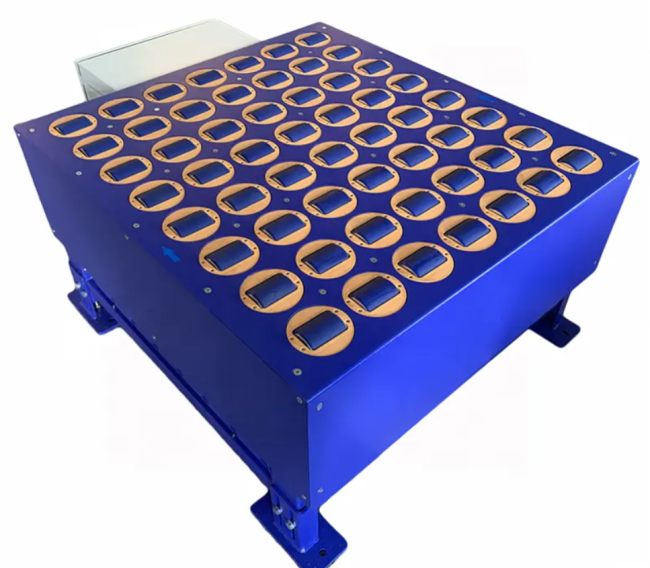

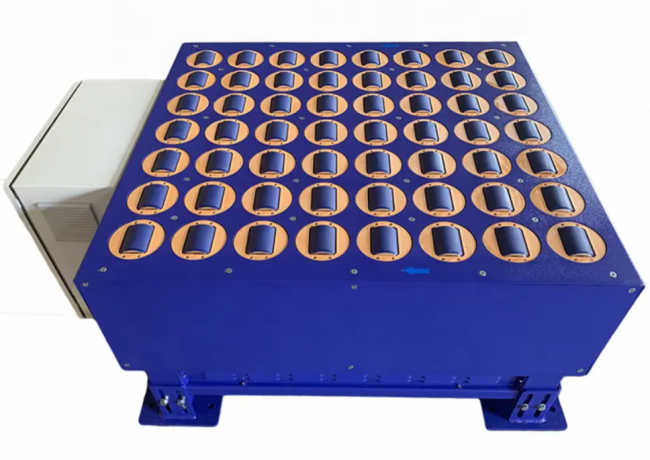

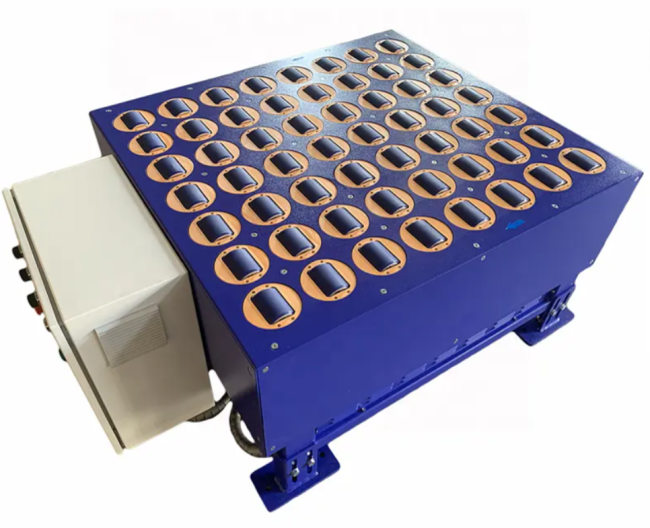

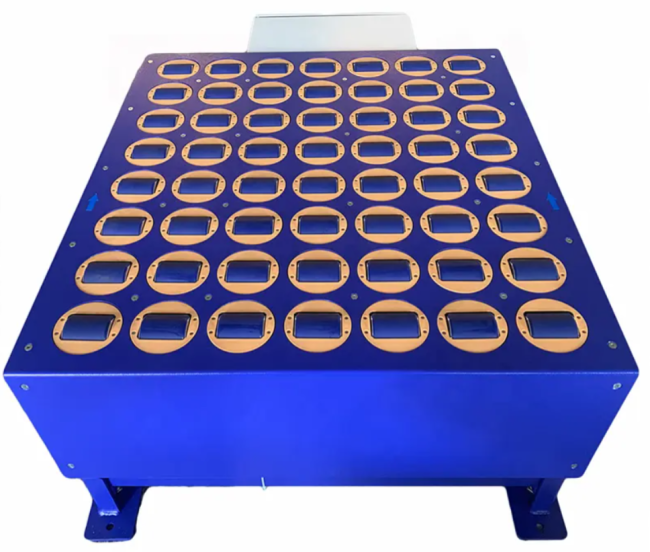

Carbon Steel Coated Logistics Machines Electrical Wheel Sorter
Mail Hub DHL/FEDEX/TNT/UPS Carton Box Parcel Wheel Diverter Logistic Equipment Sorting Machine
Product Description
It is designed for sorting parcels and packages in different industries. The characteristics of this design is to track conveyed goods accurately and stably as well as set sorting positions at any position along both sides of conveyor lines conveniently to satisfy customers with different sorting requirements. Each sorters could satisfy 3-5 sorting directions. This type of wheel sorter is mainly suitable for large throughput and very easy to maintenance.
| Basic Information | |
| Model | Electrical Wheel Sorter |
| Frame Material | Carbon Steel Coated |
| Color | Orange/Blue/Black/Gray/White/Customized |
|
Dimensions(L*W*H)
| 536*450*800mm 656*570*800mm 776*690*800mm 896*810*800mm 1016*930*800mm 1136*1050*800mm Could be customized |
| Performance | |
| Conveying Speed | 60~140m/min(Adjustable) |
| Sorting Capacity | 7200pcs/hour(Max) |
| Diverting Angle | 30~90 Degree |
| Discharge Direction | Right, Left and Forward |
| Operating Temperature | -10~40℃ |
| Electrical | 40W, 48V per wheel |
| Interface Options | RS485/232, Ethernet, IO |
| Max Loading Weight | 70KG/SQ |
| Noise | less than 75dB (distance within 1.5m) |
