0512 Skid Steer Loader Tree Cutter Shears Attachment Skid Steer Attachments

Price Negotiable
Price: Negotiate
MOQ: 20UNITS
Delivery Time: 20-22DAYS
Brand: ABC
Product Description

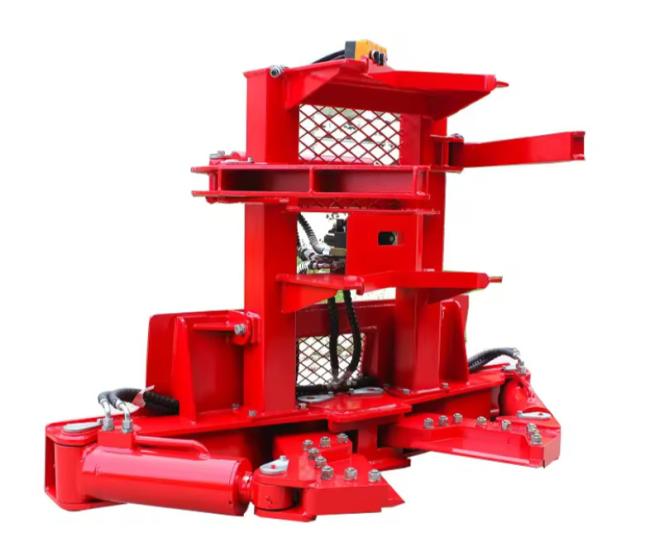

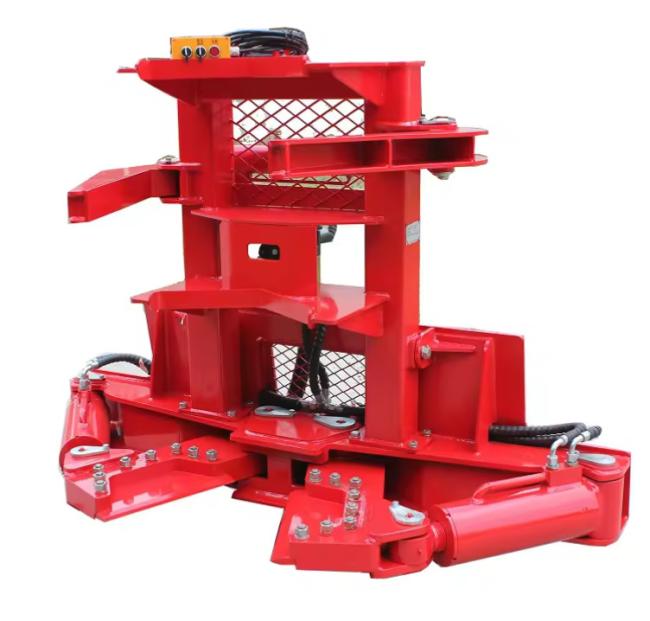

0512 Skid Steer Loader Tree Cutter Shears Attachment Skid Steer Attachments



Main Features
1. Designed for general land clearing where materials are no more than 14 inches in diameter, Tree Shears feature solid cast
shearing arms that deliver 60% stronger performance compared to competing products.
2. Tree Shears are available with two different styles of shear arms. These are the standard arm and extended arm design.
3. Equipped with guarded hard line to improve hose protection from abusive elements.
4. Options include pushbar, brushguard, single arm grapple.
5. Optional 5 gallon sprayer kit system available to prevent regrowth.
6. Tree shears are provided with standard flow flat face couplings.

Production Description:
The shear shape equipped blades driven by a pair of hydraulic cylinder to finish shearing action, and cut off the tree trunk. The proper tree dia. is 0-400mm. This tree shear attachment is suitable is skid steer loader, wheel loader, excavator etc.
Tree Shear for skid steer loaders is the ideal tool for general land clearing.Tree Shears are available with two different styles of shear arms.




SPECIFICATIONS
Specifications For Shear shape
Model
051212H
051216H
Overall Width (mm)
1900
2300
Overall Height (mm)
1255
1455
Overall Length (mm)
860
895
Tree Shear Dia.(mm)
300
400
Overall Weight(kg)
740
840
Suitable Pressure(MPa)
16~21
16~21
Suitable Flow(L/min)
50~120
80~140
