High Quality 360 Degree 10 Inch Mecanum Wheels

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 25 DAYS AFTER GETTING PAYMENT
Product Description

Product Description

High-quality 360-degree 10-inch mecanum wheels are designed to provide exceptional omnidirectional movement and maneuverability. Here are some features you might find in such wheels:

  1. Size: These mecanum wheels typically have a diameter of 10 inches, providing a larger contact area for improved stability and load-bearing capacity. The larger size allows for smooth movement across various surfaces and is suitable for applications requiring higher load capacities.

  2. Mecanum Wheel Design: These wheels feature a specialized design with multiple angled rollers mounted around the circumference. The arrangement of these rollers enables omnidirectional movement, allowing the wheel to move in any direction without the need for traditional steering mechanisms. The 360-degree movement capability makes them highly versatile for complex maneuvers.

  3. Durable Rollers: High-quality mecanum wheels are constructed with durable rollers made from materials such as rubber or polyurethane. These materials offer optimal traction, minimize wear and tear, and ensure smooth operation even in demanding environments. The durability of the rollers ensures long-lasting performance and reliability.

  4. Load Capacity: These wheels are designed to handle higher load capacities compared to smaller mecanum wheels. The exact load capacity can vary depending on the specific model and manufacturer. It's important to consider the weight of your platform or vehicle and choose mecanum wheels that can support the intended load.



High Quality 360 Degree 10 Inch Mecanum Wheels
10INCH MAXIMUM LOAD MCNANUM WHEELS

SPECIFICATION

Diameter(mm) 254
Width(mm) 128
Roller qty (pcs) 8
Variety of Bearings 2
Qty of Bearings 32
Material of side plates Auminum Alloy 6061/7075
Materil of Roller Casting Polyurethane
Mount Mode Keyway or Flange
Max Static Payload (pcs/kg) 1500
Max Dynamic Load(pcs/kg) 1200


TECHNICAL DATA SHEET
High Quality 360 Degree 10 Inch Mecanum Wheels
Product advantages and characteristics

  1. Omni-directional movement; even sideways and spin rotation
  2. Compact structure & easy for assembly
  3. Strong & stable
  4. Flexible & maneuverable

Product Application

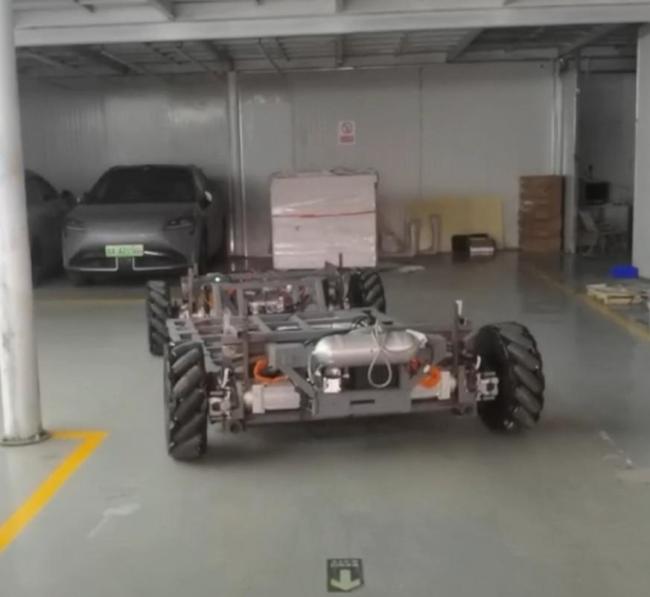

The precise control of mecanum motorized wheel makes it easy to operate even in a narrow and defined space, especially in the large-scale industry. It is widely used in mecanum wheel robot, mecanum drive robot, mobile robots, warehousing and logistics robots, AGV, AMR, intelligent parking equipment, intralogistics robots and other fields to meet the needs of different industries such as industrial, scientific research, commercial, medical, etc.





High Quality 360 Degree 10 Inch Mecanum WheelsHigh Quality 360 Degree 10 Inch Mecanum WheelsHigh Quality 360 Degree 10 Inch Mecanum WheelsHigh Quality 360 Degree 10 Inch Mecanum WheelsHigh Quality 360 Degree 10 Inch Mecanum WheelsHigh Quality 360 Degree 10 Inch Mecanum Wheels

FAQs
1. What is included for one set  mecanum wheels?
--One set mecanum wheels includes 4 pcs aluminum mecanum wheels.

2. Factory or trader?
--We have our own factory over 4000 square meter. Producing motorized mecanum wheels, hub motor, robot joint, mecanum robot, and exoskeleton  robot.

3. What is the delivery time?
--About 15 days for samples. For mass production, please contact us for detailed information. Usually by air express FedEx, DHL, UPS...
