Thin Film ETFE Bendable Solar Panel Semi Flexible 12v 75 Watt water resistant Monocrystalline sol panel supplier

Price Negotiable

Price: $74.50/pieces 4-49 pieces

MOQ: 4 pieces

Delivery Time: Negotiable

Brand: OEM or AHONY

Product Description

High Quality ETFE 75w Semi Flexible Solar Panel A Grade Mono Cell Back Contact 40cell Per Solar Module For Boat Car Cold

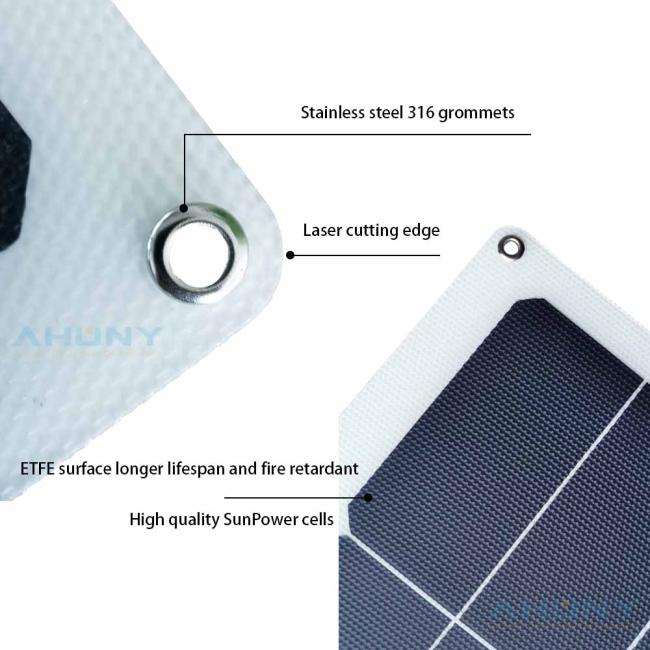

ETFE MATERIAL:Different from PET solar panel,the transmitance of ETFE material as high as 95%,better at high temperature resistance,easier to clean
HIGH EFFICIENCY: Sunpower solar cell,the conversion up to 24.4%,with excellent weak light sensitivity,the internal blocking diode which prevents reverse current drain at night
GOOD BENDABILITY: The solar panel can be curved to a maximum 30 degree arc,allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface
SUPERIOR DURABILITY: This solar panel is made of advanced water resistant material,the junction box is sealed and waterproof,the copper wire is protected by 3-layers plastic film
EASY INSTALLATION:Only 0.1 in thick and weighs only4.0 lbs,this solar panel is easy to transport,hang,and remove,4 stainless eyelets at the edges for easy installation;can be easily affixed by adhesives,silicon glues,double sticky tape,zip ties or velcro
the flexible solar panel 70w are use for solar boat yacht attic fan deck rv roof freezing car roof

Model No.	eGo S75w
Description	Thin Film ETFE Bendable Solar Panel Semi Flexible 12v 75 Watt water resistant Monocrystalline sol panel supplier
Product Name	Semi-Flexible Solar Panel
Maximum Power[Wp]	75
Solar Cell	Back Contact Cell
Cell Array[Pcs]	4*10
Cell Efficiency	24.40%

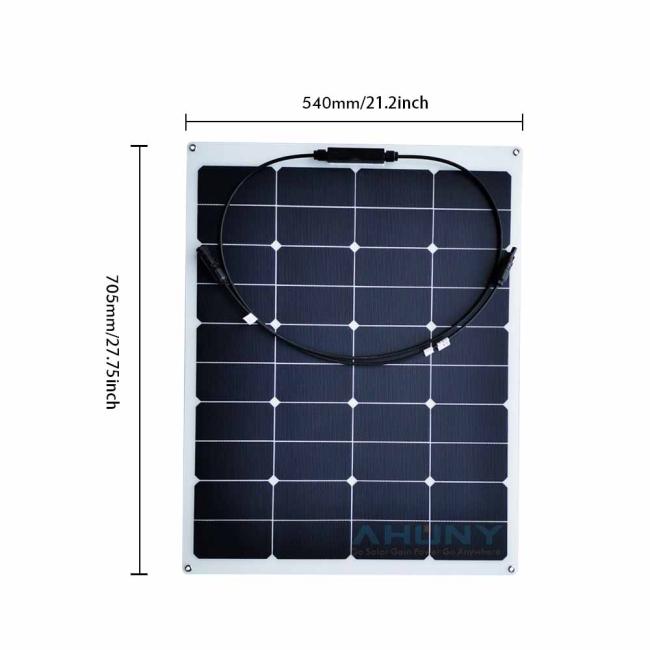

Size[mm]	540x690x3
Max Power Voltage Vmp[V]	24.48
Max Power Current Imp[A]	3.06
Open Circuit Voltage Voc[V]	28.89
Short Circuit Current Isc[A]	3.25
Net.Weight[kg]	3.2
Power tolerance[%]	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	100 V
Maximum Reverse Current[V]	10A
Certification	CE ROHS
Surface/Backsheet	Japan ETFE/white plastic
Maximum bend radius(θ)	30°

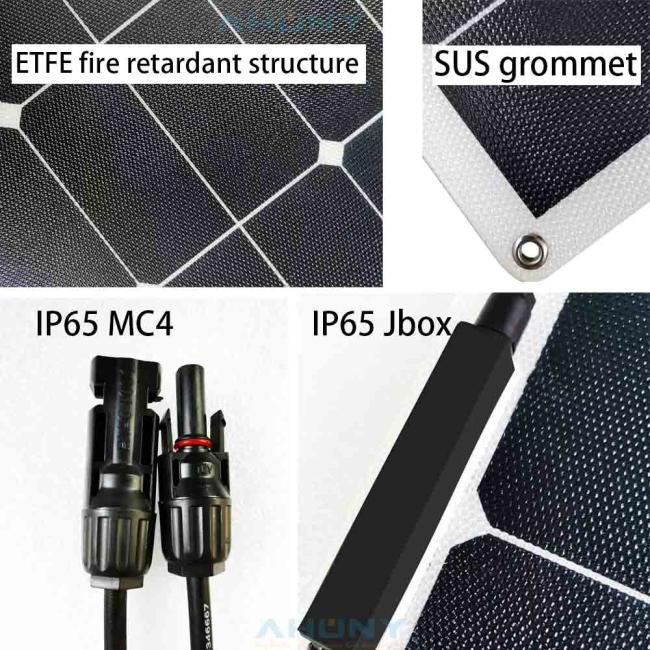

Cables and Connectors	PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
