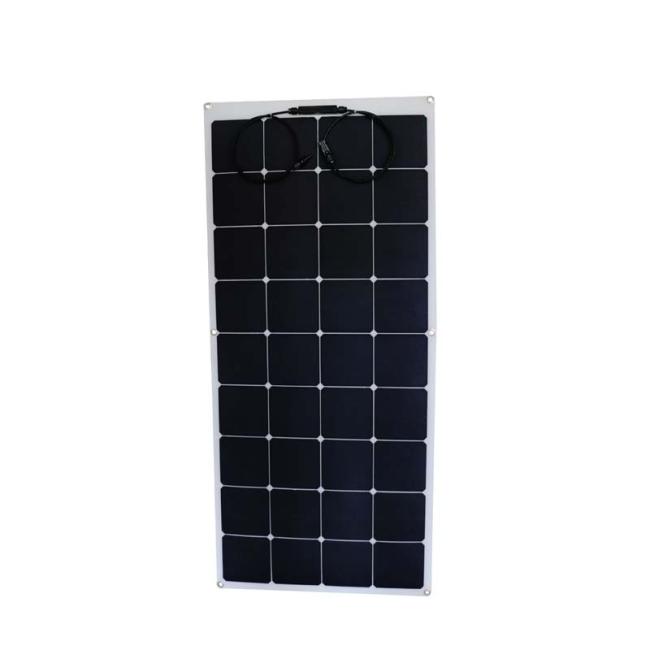

Sunpower ETFE PV Flexible Solar Panels 100w 120w 130w 200w 300w 400w
Price:
$137.50/pieces 10-99 pieces
MOQ:
10 pieces
Delivery Time:
Negotiable
Brand:
AHONY
Product Description
High Efficiency Sunpower Solar Cells PV Panele ETFE 100w 120w 130w 200w 300w 400w Flexible Solar Panels
Product Description
| Model No. | eGo S130w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 130 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 24.40% |
| Size[mm] | 540x1200x3 |
| Max Power Voltage Vmp[V] | 22.03 |
| Max Power Current Imp[A] | 5.90 |
| Open Circuit Voltage Voc[V] | 26.00 |
| Short Circuit Current Isc[A] | 6.26 |
| Net.Weight[kg] | 3 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white PET |
| Maximum bend radius(θ) | 30° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
Company Information
Application
FAQ
QHow to clean the solar panel surface?
AWhen dust and dirt covering at the surface of solar modules can be cleaned with a soft brush,then use a damp cloth to wipe the surface of solar modules,to remove the remaining dust and dirt.Recommend any guano,adhesive should be removed as soon as possible from the surface of solar modules, so as not to affect performance.
QWhat kind of battery can be charged by folding solar kit eMobi F series
A1.sealed lead-acid battery 2.colloidal lead-acid batteries 3.the opening lead-acid batteries 4. (Interface on the controller output via USB) Such as: mobile phones, tablets, navigation systems and so on.
