100w Semi Flexible Solar Panels
Good Quality Waterproof 100w Flex Solar Panel HJT Solar Cell Semi Flexible Solar Panel Off Grid For RVs Boats Campers Te

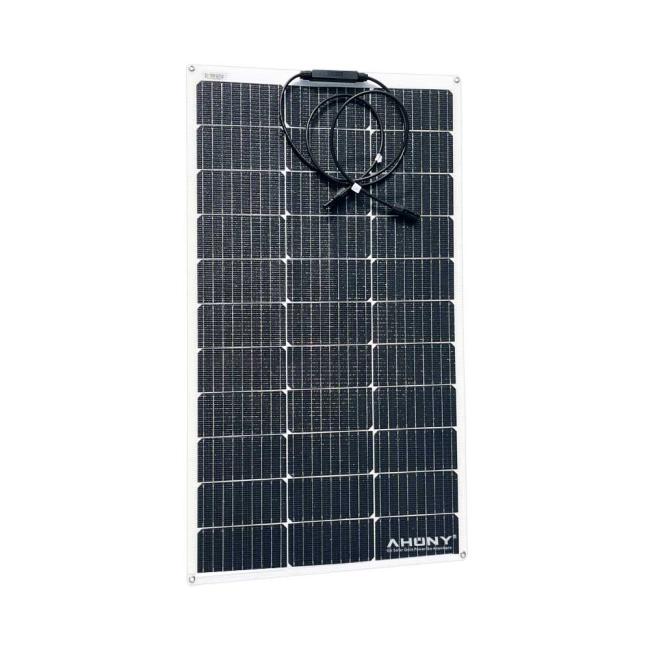

100w flex solar panel semi flexible solar panel for RVs boats campers
AHONY 100w mono flexible solar panel max bend 65degree hight efficiency solar cell solar pv module rv system semi flexible pv
Support ODM
AHONY semi flexible solar panel,or flexible solar panel are mostly made by ETFE surface,the raw material is from Japan.Solar cell is either from SunPower Maxeon cells or conventional monocrystalline solar cells,all with cell efficiency 23.5% to 25.4%.

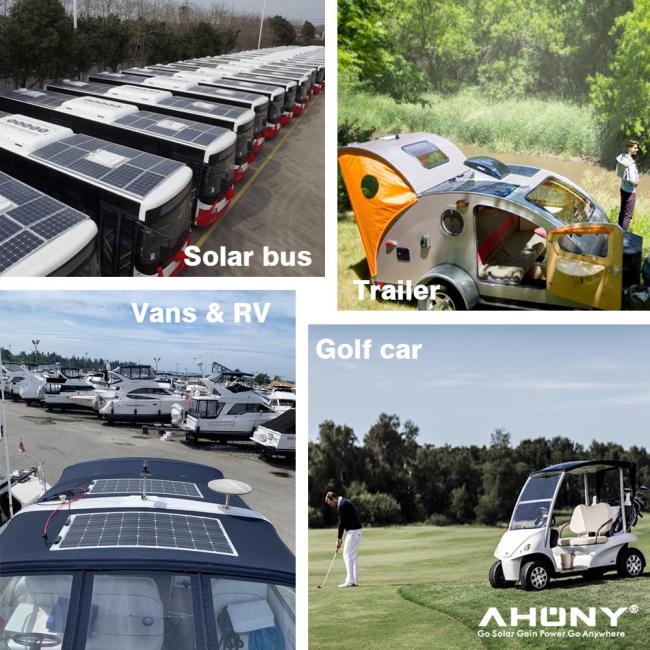

eGo SM series flexible is most resilient and thinner,it uses HJT HCF cell or PERC cell and AHONY self developed AP2 material,the thickness is 1.5-2mm only.The max bend angle is 60degree horizontal bend angle or 240degree circle arc.Power range from 1w to 420w.It's widely used for bimini roof,balcony solar panel,anwing,shelter,rv trailer roof,electrical bus etc.
eGo S series flexible is more resilient and thinner as the cell is from SunPower and backsheet is high quality weather resistant material,it leads the highest efficiency range of solar panels.Now power ranges from 7w-420w.
eGo P use PCB backsheet,it can customize a lot of panels,like small ones 5w-300w,the conventional cells can cut into any possible small size,like bike-sharing small panels 5w.AHONY gains a lot of experience producing eGo P series for last years,as we produces a lot of bike-sharing for leading brand in China,like Mobike,OFO etc.
For both ranges,we share similar producing lines,using laser cutting to make colourful design,shape,size,power,voltage.small eGo S or P panels for backpack,mailing box,RV rooftop,marine,camping,outdoor,motohomes etc all outdoor solar use or mobile solar use.
| Model No. | eGo S100M |
| Product Name | semi flexible solar panel 100w Semi Flex Solar Panels flexibles solarmodul kit camper electric bike pv marine boat sun panel |
| Maximum Power[Wp] | 100 |
| Solar Cell | Monocrystalline solar cell |
| Cell Array[Pcs] | 3*12 |
| Cell Efficiency | 24.2% |
| Size[mm] | 510*1015*2 |
| Max Power Voltage Vmp[V] | 20.26 |
| Max Power Current Imp[A] | 4.94 |
| Open Circuit Voltage Voc[V] | 24.01 |
| Short Circuit Current Isc[A] | 5.33 |
| Net.Weight[kg] | 1.7 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.43 |
| Temperature Coefficient Voc[[%/℃] | -0.34 |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |

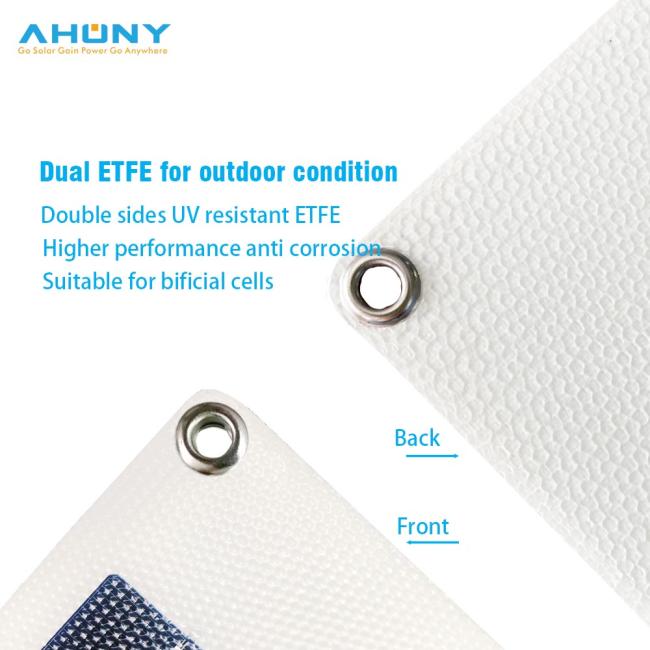

| Surface/Backsheet | ETFE/white plastic |
| Maximum bend radius(θ) | 60° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package |
1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
