Semi Flexible Hjt Bifacial Photovoltaic Panels

Price Negotiable

Price: $130.00/sets 4-99 sets

MOQ: 4 sets

Delivery Time: Negotiable

Brand: AHONY or OEM

Product Description

200w Semi Flexible Solar Panel HJT Solar Cell Etfe Rv Awning Transparent Bificial Module Solar Off Grid Solar System Pv

Product Description

1, latest generation 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.

2. MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.

3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.

Model No.	eGo S200M	eGo S210M
Product Name	semi flexible solar panel	semi flexible solar panel
Maximum Power[Wp]	200	210
Solar Cell	HJT	HJT
Cell Array[Pcs]	4*9	4*9
Cell Efficiency	22.7%	24%
Size[mm]	67014903	67014903
Max Power Voltage Vmp[V]	20.88	22.32
Max Power Current Imp[A]	9.58	8.97
Open Circuit Voltage Voc[V]	24.43	26.33
Short Circuit Current Isc[A]	10.34	9.49
Net.Weight[kg]	3.20	3.2
Power tolerance[%]	±5%	±5%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.41
Temperature Coefficient Voc[[%/℃]	-0.32
Temperature Coefficient Isc[[%/℃]	0.04
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2

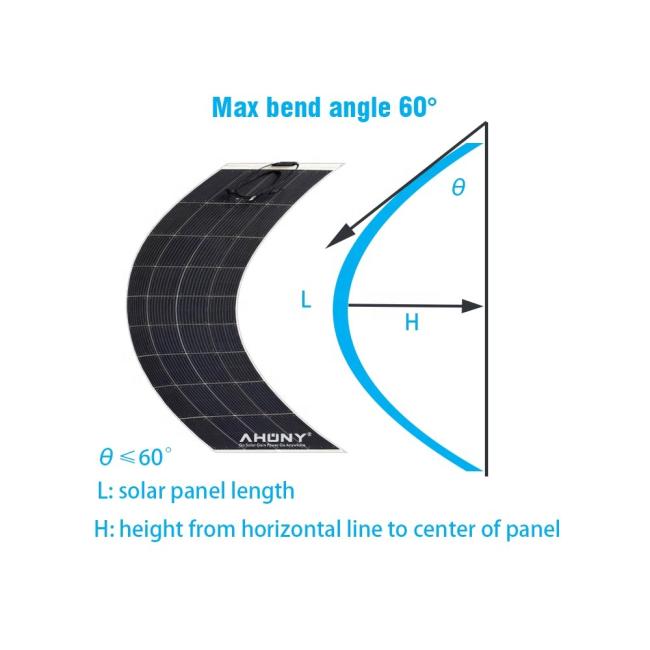

Maximum bend radius(θ)	60°
Cables and Connectors	Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
