AHONY semi flexible solar panel use Japan brand ETFE surface,much better performance of flame retardancy UL94 VTM-0.Solar cell is IBC from USA leading brand SunPower,High efficiency up to 23.7%.
120w 12V Photovoltaic boat balcony plastic thin transparent Flexible bendable Solar Panels pv vendor manufacturer supplier
Price:
$107.80/pieces 4-99 pieces
MOQ:
4 pieces
Delivery Time:
10-12working days
Brand:
AHONY or Customer brand
Product Description
120w 12V Photovoltaic boat balcony plastic thin transparent Flexible bendable Solar Panels pv vendor manufacturer supplier.
eGo s uses back contact cell,efficiency is high at 24.4%,better weak light performance and little power loss when walk on it,thespeclal inner copper foundatlon makes cell solid and duarable thanother panels.max bend angle 60degree,suitable for marine,yacht surface,bimini,fish boat,rv roof,golf car,electric bus etc.
Product Description
|
Model No.
|
eGo S120w
|
|
Product Name
|
120w 12V Photovoltaic plastic thin transparent Flexible bendable Solar Panels pv vendor manufacturer supplier
|
|
Maximum Power[Wp]
|
120
|
|
Solar Cell
|
Back Contact Cell
|
|
Cell Array[Pcs]
|
4*8
|
|
Cell Efficiency
|
24.40%
|
|

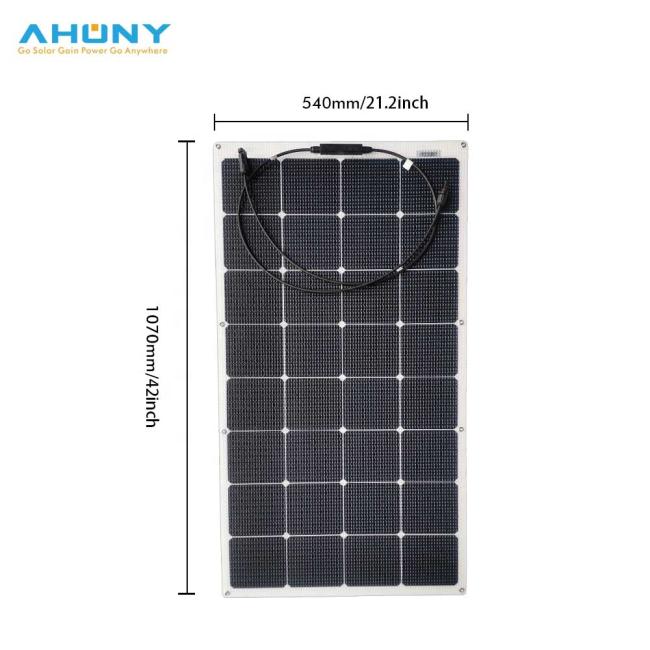

Size[mm]
|
540x1060x3
|
|
Max Power Voltage Vmp[V]
|
19.60
|
|
Max Power Current Imp[A]
|
6.13
|
|
Open Circuit Voltage Voc[V]
|
22.93
|
|
Short Circuit Current Isc[A]
|
6.49
|
|
Net.Weight[kg]
|
3.2
|
|
Power tolerance[%]
|
±3%
|
|
NOCT[℃]
|
45±2
|
|
Operating Temperature[℃]
|
-40/+85
|
|
Temperature Coefficient Pmax[%/K]
|
-0.3
|
|
Temperature Coefficient Voc[[%/K]
|
-1.74mV
|
|
Temperature Coefficient Isc[[%/K]
|
0.05
|
|
Maximum System Voltage[V]
|
100 V
|
|
Maximum Reverse Current[V]
|
10A
|
|
Certification
|
CE ROHS IEC SGS
|
-
Product performance description
Details Images
The semi flexible solar panel eGo S series has anti skid and self cleaning surface,it's aesthetics,aerodynamic,max bend angle 30degree.All the panel are cutted under laser cutting machine,use SUS 316 grommets.

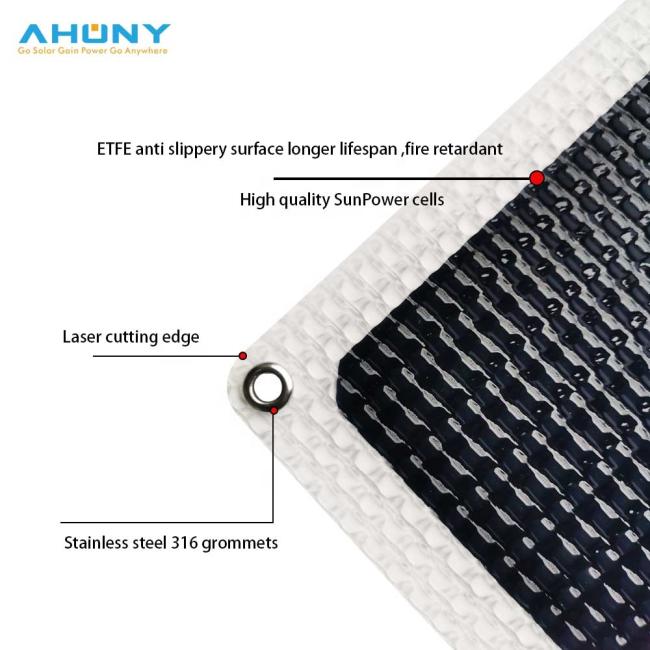

Longer lifespan ETFE surface,laser cutting edge,can customize different arc or angle,eyelets are stainless steel 316,high anti-corrosion.
The anti-skid surface allows walk on very flat roof or boat surface.If customer install panels on tilted,the surface will clean automatically after rainning.The uneven surface also gets more sunshine makes higher power.

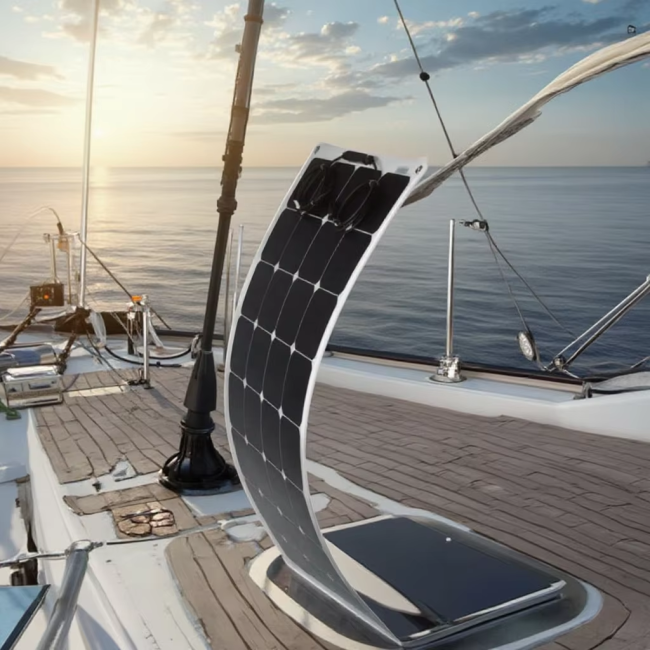

ETFE surface flexible is widely used for marine boat yacht,rv motorhome roof,it's ultralight,thin,easy to install helps reduce a lot weight.
Product Usage
Product usage introduction

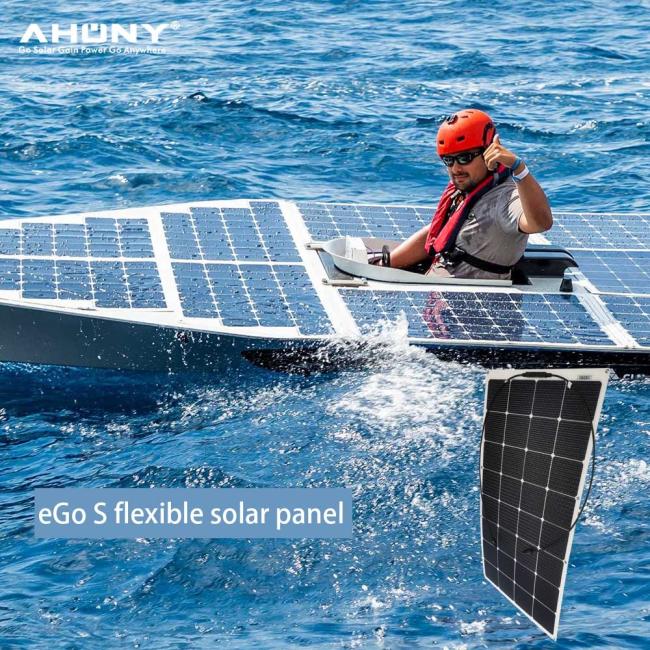

eGo S 110w Semi flexible solar panel is widely used for boat,yacht,marine industry now.Install on surface of boat,or buoys,catamaran.
Another big usage are for camping,outdoor,rv roof.
You can either put panel on roof surface and use adhesive to seal it,or put silicon gel,or install it by scews.
Description of product use effect
Our high efficiency and premium performance semi flexible solar panel helps produce more power.It's corrosion resistant.More extra power helps boat go far and last longer.
Packing&Shipping
The semi flexible solar panel is packed 1pcs in individual box,with 2 pieces foam in it to protect,5 pieces per master carton.then in plywood pallet.
For small order or samples,5pics per carton box with foam in it.
Company Introduction
AHONY POWER was founded in Shenzhen,southest China nearby Hongkong,Dongguan,Huizhou.Our team have more than 8 years solar experience,including producing,marketing,R&D.Ahony owns 4 official issued solar patents,1 of which is invention patent.
We passed ISO9001,products are certified by CE,ROHS,SGS,IEC.For every product offered by Ahony,we have strict producing process,quality inspection process and testing process.Ahony is dedicated to clean energy-solar technology innovation,ultralight solar panel technology,environmental friendly solar products,solar application,power products etc.
Our Services & Strength
Automatically soldering for solar module,laser cutting for flexible solar panel.
A grade quality solar cell high efficiency;
Strict quality control ,engineer helps to design different solar panels and customize details.
FAQ
How many years warranty for your solar panel?
semi flexible solar panel warranty 2 years,semi rigid solar panel 3 years.Glass solar panel 5years.
AHONY is solar panel manufacturer with following products:
Using 25.8% Longi HPBC cell,24.4% SunPower cell.
-semi flexible solar panel 5w-430w;
-glass solar module 1w to 470w;
-foldable solar kit 3w-500w.
CE ROHS,OEM customize with small MOQ.
Engineer fast design,max power voltage,size to optimize your solution.
