PV Glass Solar Panel 100w Module Off Grid For Battery Charging Boat Caravan RV Home
Price:
$53.00/pieces 10-49 pieces
MOQ:
10 pieces
Delivery Time:
Negotiable
Brand:
AHONY
Product Description
Solar glass pv solar module 100w Module Off Grid for Battery Charging Boat Caravan RV home solar system
Product Description
- High module conversion efficiency. Ideal output: 500Wh per day (depending on the availability of sunlight). Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
- Off-grid fully self powered systems as RV solar panels, Boat solar panels, and Marines solar panels
- Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the panels last for a long time
- 12 Volts battery use
- 25-year transferable power output warranty; 5-year material and workmanship warranty
| Model No. | eRigid M100w |
| Product Name | pv solar module 100w High Efficiency Module Off Grid PV Power for Battery Charging Boat Caravan RV home solar system |
| Maximum Power[Wp] | 100 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 22.5% |
| Size[mm] | 680*765*30mm |
| Size[inch] | 158*80 |
| Max Power Voltage Vmp[V] | 20.52 |
| Max Power Current Imp[A] | 4.87 |
| Open Circuit Voltage Voc[V] | 24.15 |
| Short Circuit Current Isc[A] | 5.14 |
| Net.Weight[kg] | 6.2 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | Glass/silver frame/white backsheet |
| Cables and Connectors | Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |

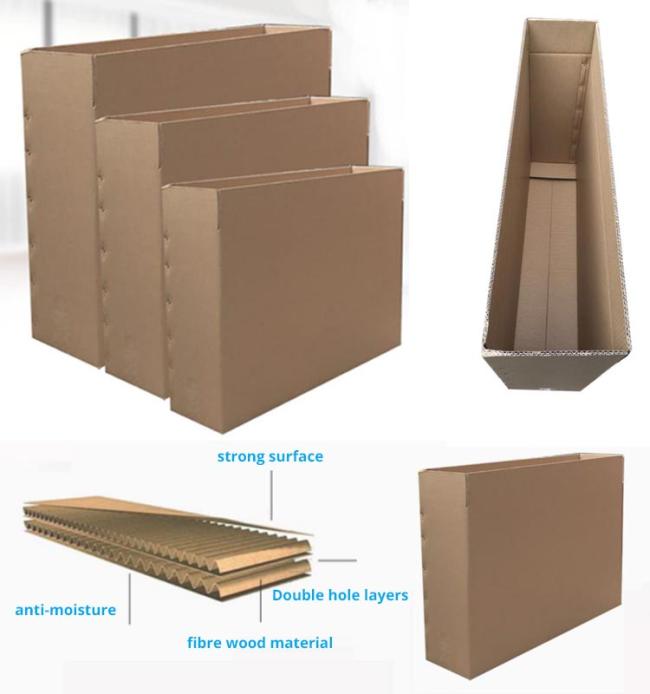

Packaging & Shipping
Packaging Details: carton box for this pv solar module 100w High Efficiency Module Off Grid PV Power for Battery Charging Boat Caravan RV and Any Other Off Grid
