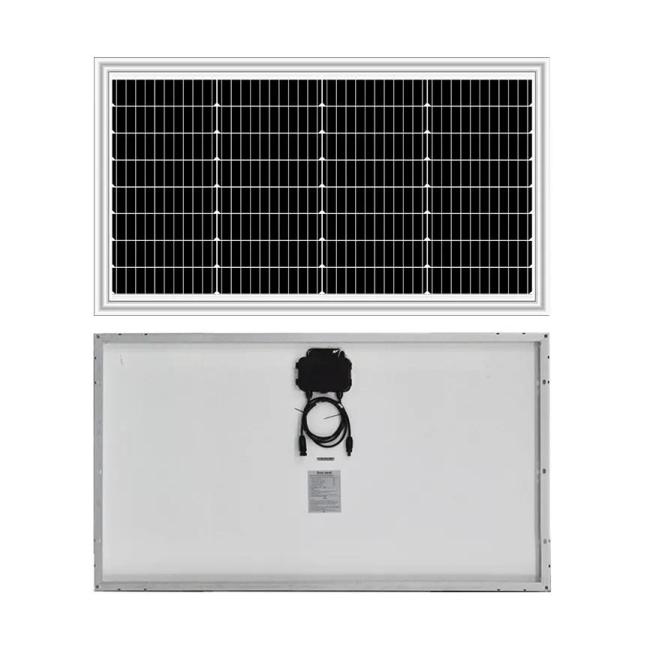

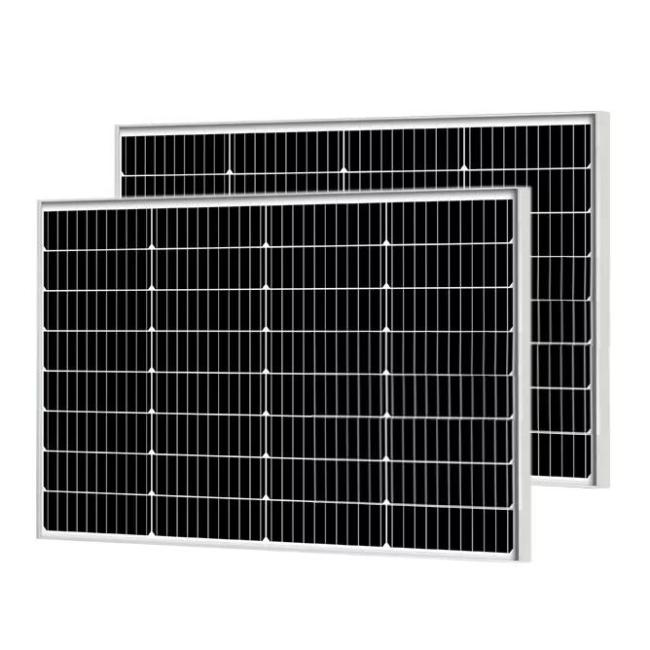

65w Cell Solar Panel 12v 10BB PV Module For Home Camp Rv Balcony Boat Yacht
Price:
$35.75/pieces 2-99 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
AHONY
Product Description
10BB 182 65w High Efficiency M10 Solar Cell 12v Solar Panel For Home Pv Camp Rv Balcony Boat Yacht Solar Panel Pv Module
Product Description
| Model No. | eRigid M65W |
| Maximum Power[Wp] | 65 |
| Solar Cell | 182 PERC Solar Cell |
| Cell size[mm] | 182*45.5 |
| Cell Array[Pcs] | 3*12 |
| Cell Efficiency | 22.70% |
| Size[mm] | 590*610*25 |
| Max Power Voltage Vmp[V] | 20.88 |
| Max Power Current Imp[A] | 3.12 |
| Open Circuit Voltage Voc[V] | 24.22 |
| Short Circuit Current Isc[A] | 3.11 |
| Net.Weight[kg] | 4.9 |
| Power tolerance[%] | ±3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.41 |
| Temperature Coefficient Voc[[%/℃] | -0.32 |
| Temperature Coefficient Isc[[%/℃] | 0.04 |
| Maximum System Voltage[V] | 1000 V |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE/white plastic |
| Cables and Connectors | IP67 Jbox,0.9m cable+MC4 |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 2pcs/carton,plywood pallet |
