Saltwater Proof Walkable Solar Panel

Price Negotiable
Price: $91.80/pieces 10-99 pieces
MOQ: 10 pieces
Delivery Time: Negotiable
Brand: AHONY
Product Description

60w Semi Rigid Walk On Solar Module Saltwater Proof Sunpower Cell For Boat Marine Yacht Rv Ce IEC Charging Battery

Product Description

 The eMarvel marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.

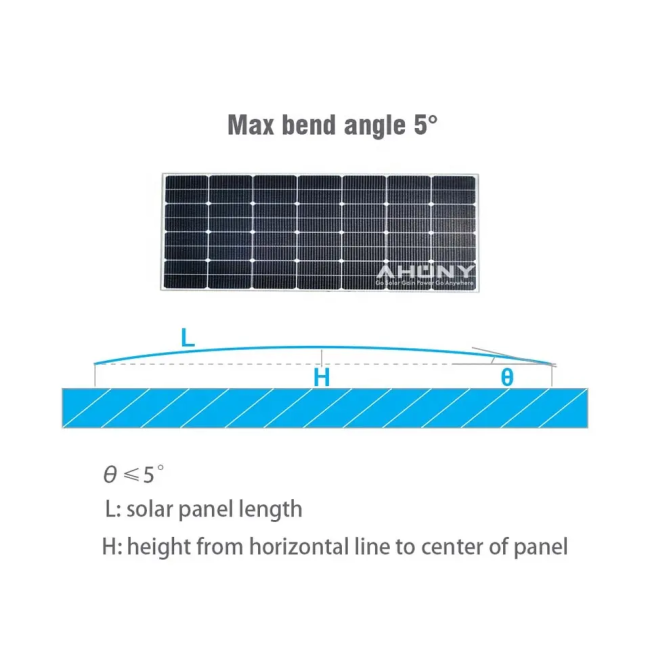

Now this marine solar panel can bend a slightly angle max 5degree,they are approved by CE,ROHS,SGS,certified under IEC standard.
AHONY uses high efficiency cell over 21.3% monocrystalline or back contact cells Gen III over 22.6%.We offer a wide ranges of
customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.

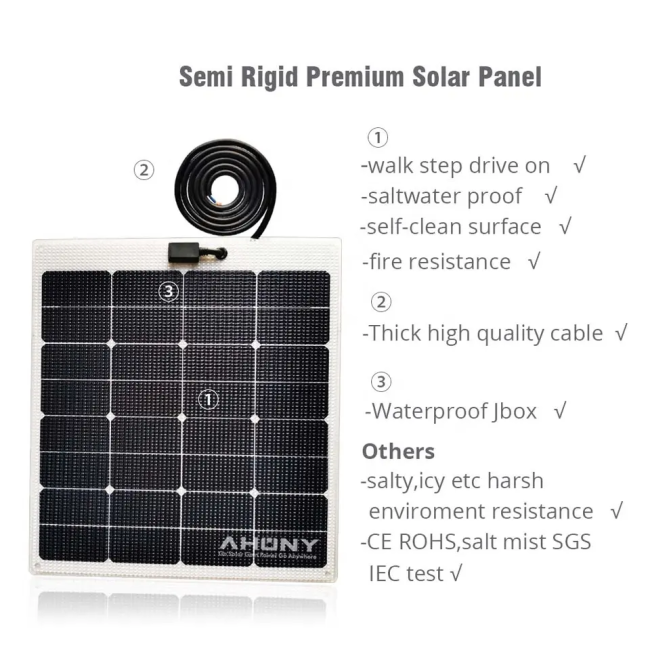

*Walkable and Anti-slippery
*Longer lifespan 15years guaranteed
*High temp resistance and little power loss
*Rigid,thin,light design for widely use
Solar cells can be:Back contact cell;Monocrystalline solar cell;Polycrystalline solar cell.



Model No.
eMarvel 55w
Product Name
semi rigid solar panel
Maximum Power[Wp]
60
Solar Cell
SunPower Back Contact Cell
Cell Array[Pcs]
4*8
Cell Efficiency
24.4%
Size[mm]
550*595*5
Max Power Voltage Vmp[V]
19.60
Max Power Current Imp[A]
2.81
Open Circuit Voltage Voc[V]
23.13
Short Circuit Current Isc[A]
2.97
Net.Weight[kg]
2.5
Power tolerance[%]
±3%
NOCT[℃]
45±2
Operating Temperature[℃]
-40/+85
Temperature Coefficient Pmax[%/K]
-0.3
Temperature Coefficient Voc[[%/K]
-1.74mV
Temperature Coefficient Isc[[%/K]
0.05
Maximum System Voltage[V]
200 V
Maximum Reverse Current[V]
0A<IR<2A







Detailed Image
