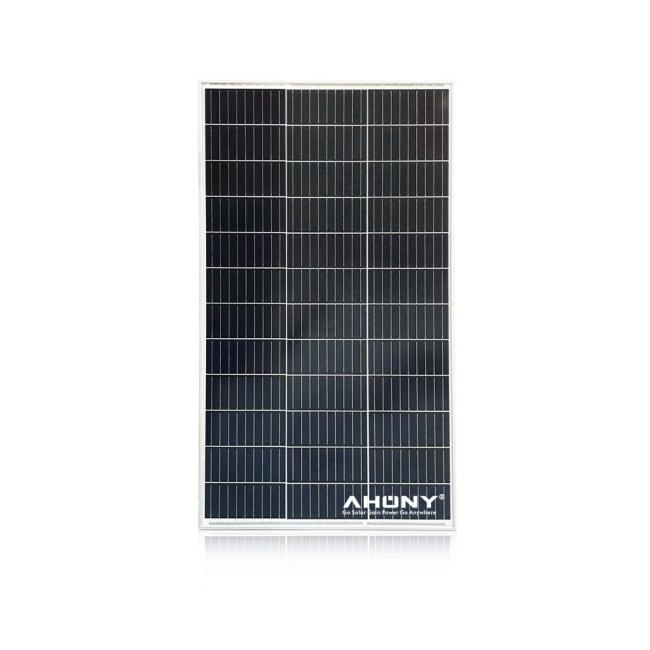

510*1015*30 Dimensions 100W Solar Panel Module for Solar Roof Tile on Boat Caravan RV
Price:
$0.35/watts 1000-4999 watts
MOQ:
1000 watts
Delivery Time:
Negotiable
Brand:
AHONY
Product Description
factory
Product Description
| Model No. | eRigid M100W |
| Product Name | Rigid Glass Monocrystalline solar Panel |
| Maximum Power[WP] | 100 |
| Solar Cell | Mono A grade solar cell |
| Cell Array[pcs] | 158.75*79.4 |
| Cell Efficiency | 3*12 |
| Size[mm] | 24.20% |
| Size[inch] | 510*1015*30 |
| Max Power Voltage Vmp[V] | 21.60 |
| Max Power Current Imp[A] | 4.63 |
| Open Circuit Voltage Voc[V] | 25.42 |
| Short Circuit Current Isc[A] | 4.88 |
| Net.Weight[kg] | 6.20 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.41 |
| Temperature Coefficient Voc[[%/K] | -0.32 |
| Temperature Coefficient Isc[[%/K] | 0.04 |
| Maximum System Voltage[V] | 1000 V |
| Certification | CE ROHS |
| Cables and Connectors | 0.9m cable+MC 4 connector IP67Jbox |
Our Services
Packaging & Shipping
Packaging Details: carton box for this pv solar module 100w High Efficiency Module Off Grid PV Power for Battery Charging Boat Caravan RV and Any Other Off Grid
Port: shenzhen
Picture Example:
- High module conversion efficiency. Ideal output: 500Wh per day (depending on the availability of sunlight). Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
- Off-grid fully self powered systems as RV solar panels, Boat solar panels, and Marines solar panels
- Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the panels last for a long time
- 12 Volts battery use
- 25-year transferable power output warranty; 5-year material and workmanship warranty
