Professional Helicopter UAV Camera RC Car Drone Accessories Vibration Shock Control GR1-3.3D-A Compact Wire Rope Isolator
Prefabricated vibration isolator (GR butterfly type) is an efficient vibration isolation device specially designed to reduce vibration transmission caused by various mechanical equipment. This type of isolator is named after its unique butterfly shape, designed to provide optimized vibration absorption performance.
MOUNTING OPTIONS:
DIMENSION DRAWING:
SIZE PARAMETER:
| product model | Height | Weight | Unit weight | Mounting options | Thru hole | Thread | C'sink |
| GR1-3.3D-A | 17 | 19 | 0.05 | A,B,C,D,E,S | ∅3.3 | M3×0.5 | 90 |
| GR1-2.4D-A | 19 | 20 | 0.05 | ||||
| GR1-1.8D-A | 23 | 23 | 0.05 | ||||
| GR1-1.3D-A | 26 | 26 | 0.05 |

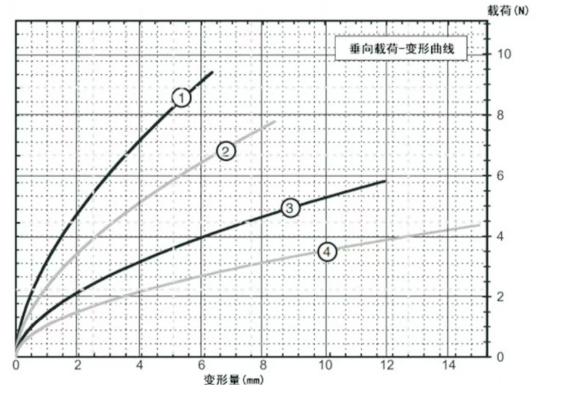

Vertical load
45 ° directional load:
Lateral load:
| curve number |
model |
max static load(N) | max deformation(mm) |
vibration stiffness(KN/m) |
impact stiffness(KN/m) |
| 1 | GR1-3.3D-A | 1.6 | 8.6 | 2.1 | 0.8 |
| 2 | GR1-2.4D-A | 1.1 | 10.9 | 1.5 | 0.4 |
| 3 | GR1-1.8D-A | 0.8 | 14.7 | 0.9 | 0.3 |
| 4 | GR1-1.3D-A | 0.5 | 18.3 | 0.5 | 0.1 |
characteristic:
1. Innovative design: The butterfly shaped design enhances the structural strength of the isolator while maintaining sufficient flexibility to adapt to different vibration frequencies and amplitudes.
2. Efficient vibration isolation: It can effectively isolate and absorb vibrations from mechanical equipment, reducing impact and noise on building structures or surrounding equipment.
3. Durability and reliability: The use of high-quality materials and advanced manufacturing technology ensures its durability and long-term stability in various environments.
4. Easy to install and maintain: The modular design makes the installation process quick and easy, while the maintenance work is relatively easy, which helps to reduce operating costs.
Application:
1. Photography and videography
2. Aerial surveying and mapping
3. Airborne communication
