Stainless Steel Material JGX-0160D-2A Durable Wire Rope Vibration Isolator For Photographic Equipment
JGX-0160-2A
Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.
With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable,
high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.
The JGX-0160D-2A wire rope shock isolators is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-2A provides amazing vibration isolation any time in use.

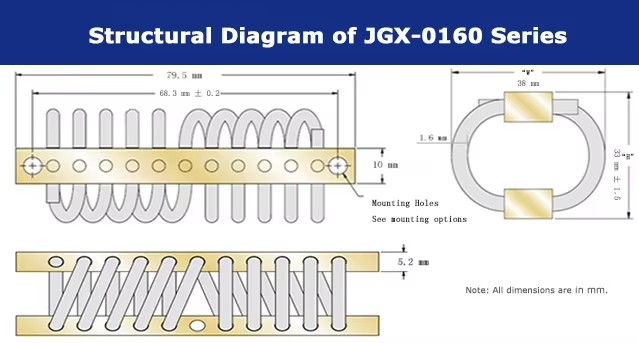

JGX-0160D-2A is the new designed 10 loops 1.6mm diameter wire rope shock isolators with max static load of 2kg, especially used in the precise instruments for the noise attenuation for both and industry. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
Nowadays, the JGX-0160 series isolators are used widely in the field of highway transportation, marine, shipborne, navy,
photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

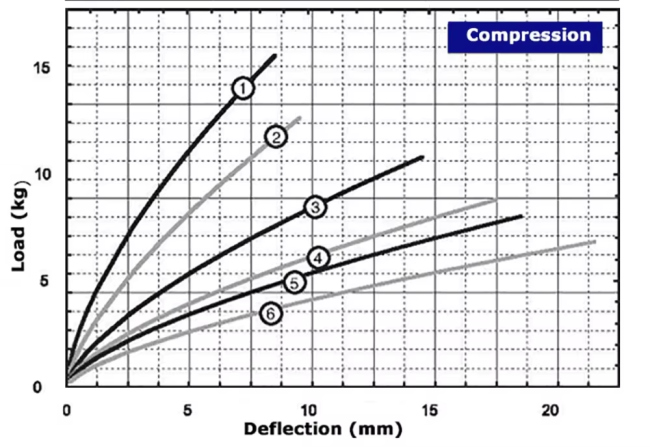

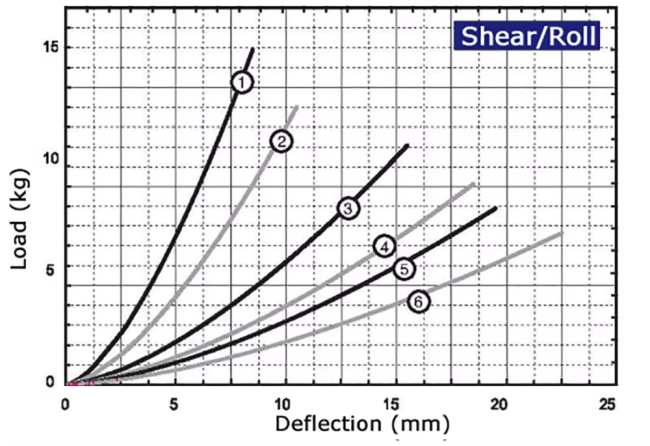

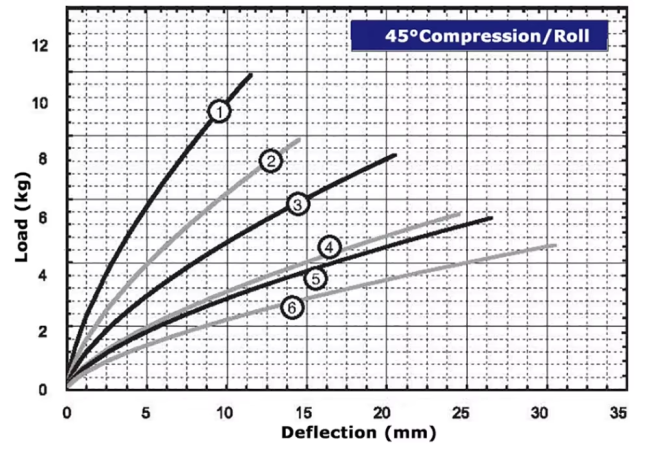

| Curve No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv (vibration) (KNm) |
Ks(shock) (KNM) |
| 1 | JGX-0160D-4.8A | 4.8 | 8.6 | 36 | 22 |
| 2 | JGX-0160D-3.6A | 3.6 | 9.7 | 25 | 16 |
| 3 | JGX-0160D-3.2A | 3.2 | 14.7 | 17 | 8.8 |
| 4 | JGX-0160D-2.7A | 2.7 | 17.8 | 12 | 6.1 |
| 5 | JGX-0160D-2.2A | 2.2 | 18.8 | 11 | 5.3 |
| 6 | JGX-0160D-2A | 2.0 | 21.8 | 7.9 | 3.9 |
Product Applications
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Ship board |
Electronics, Computers, |
Explosive blast, Storms |
Long life, Maintenance-free,Temperature extremes,Corrosion resistance,All axes protection |
| Rough Terrain Vehicls | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free,Temperature extremes, Ozone,Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment | Tank artillery, Computer controls, Electronics | Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays.
