50N/mm Axial Stiffness Stainless Steel Wire Rope Vibration Isolator for Precision Instruments JGX-0240D-4.5A
JGX-0240 Series
The vibration isolator is a vibration isolation product designed for precision instruments, and its core structure is constructed of stainless steel stranded cables, which are precisely calculated and processed to form a spring system with high elasticity and durability. Through this design, the isolator can withstand heavy loads while providing excellent vibration isolation, effectively suppressing and reducing interference and damage caused by external environmental factors such as vibration, shock, etc.
JGX-0240D-4.5A is the new designed 10 loops 2.4mm diameter helical isolators with max static load of 4.5kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
Nowadays, the JGX-0240 series isolators are used widely in the field of vehicles, armored cars, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

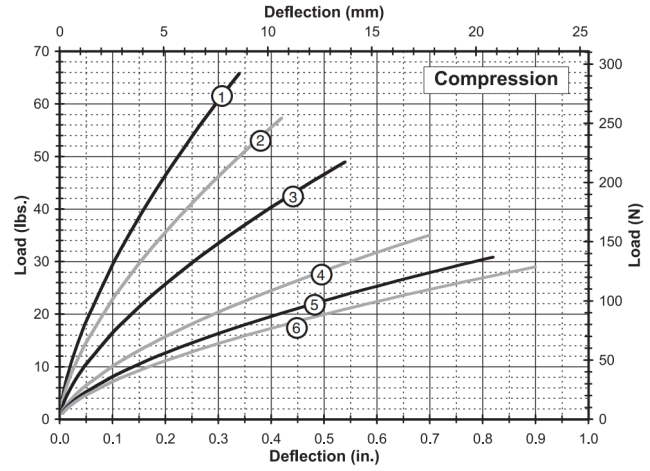

| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 8.6 | 8.6 | 65 | 40 |
| 2 | JGX-0240D-7.7A | 7.7 | 10.7 | 51 | 30 |
| 3 | JGX-0240D-6.3A | 6.3 | 13.7 | 37 | 19 |
| 4 | JGX-0240D-4.5A | 4.5 | 17.8 | 23 | 11 |
| 5 | JGX-0240D-4A | 4.0 | 20.8 | 18 | 7.9 |
| 6 | JGX-0240D-3.6 | 3.6 | 22.9 | 16 | 7.0 |

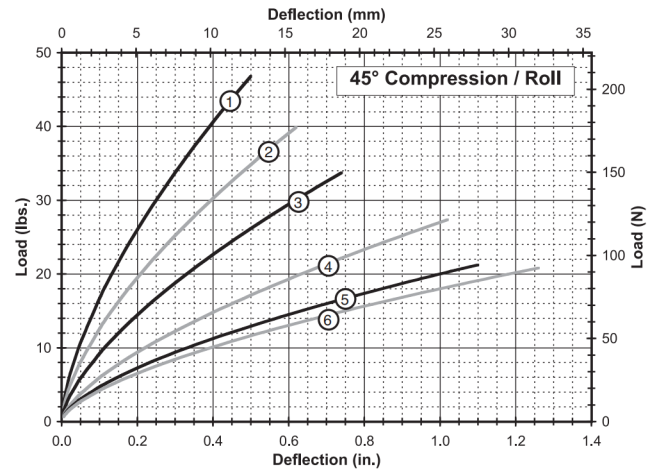

| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 6.3 | 12.7 | 38 | 20 |
| 2 | JGX-0240D-7.7A | 5.4 | 15.7 | 28 | 14 |
| 3 | JGX-0240D-6.3A | 4.5 | 18.8 | 21 | 9.6 |
| 4 | JGX-0240D-4.5A | 3.7 | 25.9 | 13 | 5.6 |
| 5 | JGX-0240D-4A | 3.2 | 27.9 | 11 | 4.4 |
| 6 | JGX-0240D-3.6 | 2.8 | 32.0 | 9.6 | 3.5 |

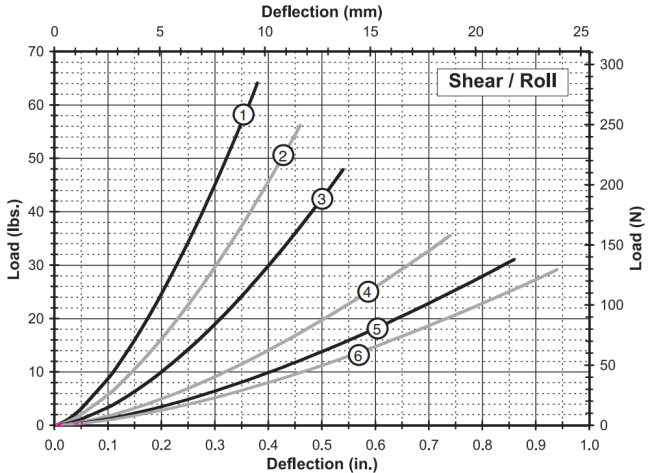

| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 4.5 | 9.7 | 24 | 24 |
| 2 | JGX-0240D-7.7A | 4.1 | 11.7 | 18 | 18 |
| 3 | JGX-0240D-6.3A | 3.2 | 13.7 | 12 | 12 |
| 4 | JGX-0240D-4.5A | 2.8 | 18.8 | 7.0 | 7.0 |
| 5 | JGX-0240D-4A | 2.2 | 21.8 | 5.3 | 5.3 |
| 6 | JGX-0240D-3.6 | 1.8 | 23.9 | 4.4 | 4.4 |
