JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.
During development, JZP Series prototypes undergo professional vibration testing:
- Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
- Random vibration tests simulate real road conditions to verify isolation efficiency

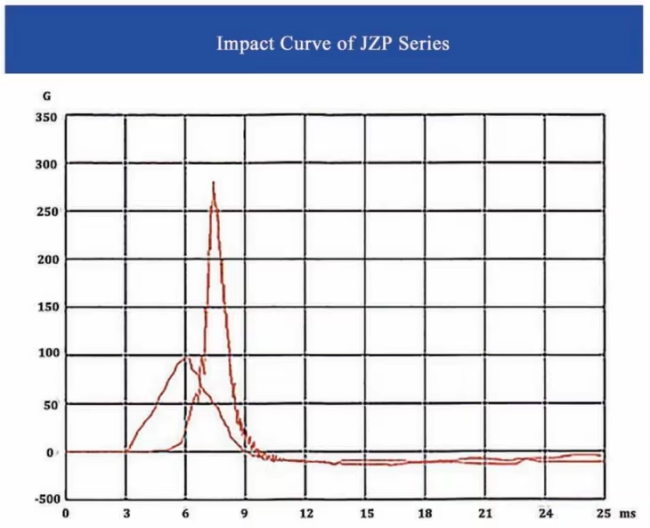

- Shock tests evaluate ultimate load-bearing capacity and buffering performance
The JZP Series undergoes extreme condition testing to ensure performance reliability:
- High-low temperature alternating tests
- Damp-heat resistance tests
- Salt spray corrosion tests
Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.
| Model | D (mm) | H±1 (mm) | h (mm) | A±0.2 (mm) | B (mm) | d | d2 | R | B (mm) |
|---|---|---|---|---|---|---|---|---|---|
| JZP-B-SC | 46 | 30 | 21 | 40 | 50 | M4 | ∅5.5 | 5 | 22 |
| Model | Nominal Load (kg) | Static Displacement (mm) | Working Temperature (℃) | Resonance Frequency (Hz) | Impact Test | Valid Period (year) |
|---|---|---|---|---|---|---|
| JZP-1.0B-SC | 1.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-1.5B-SC | 1.5 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-2.0B-SC | 2.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-2.5B-SC | 2.5 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-3.0B-SC | 3.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-3.5B-SC | 3.5 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-4.0B-SC | 4.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-5.0B-SC | 5.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-5.5B-SC | 5.5 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
| JZP-6.0B-SC | 6.0 | ≤0.3 | -45～+65 | 41.5±5 | 100G12times | 8 |
