The JGX-1598D-515B wire rope isolator is a high-performance vibration isolation solution designed for machinery, industrial energy parts, compressors, and aerospace applications. This advanced isolator provides exceptional vibration and noise control capabilities.

The JGX-1598D-515B wire rope isolator from the JGX-1598 series features stainless steel cables and retaining bars that deliver outstanding vibration isolation performance. The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop, while the damping function results from the relative friction between the cable's individual wire and strands.

JGX-1598D-515B is the newly designed 8-loop, 15.9mm diameter wire rope isolator with a maximum static load of 515kg, specifically engineered for mechanical noise attenuation in various instruments and systems.

Constructed with stainless steel or aluminum materials, this wire rope isolator offers excellent waterproof performance, corrosion resistance, and long-term durability.

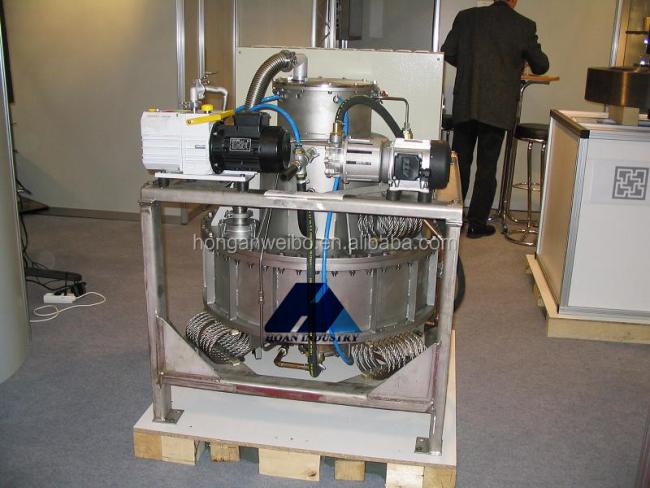

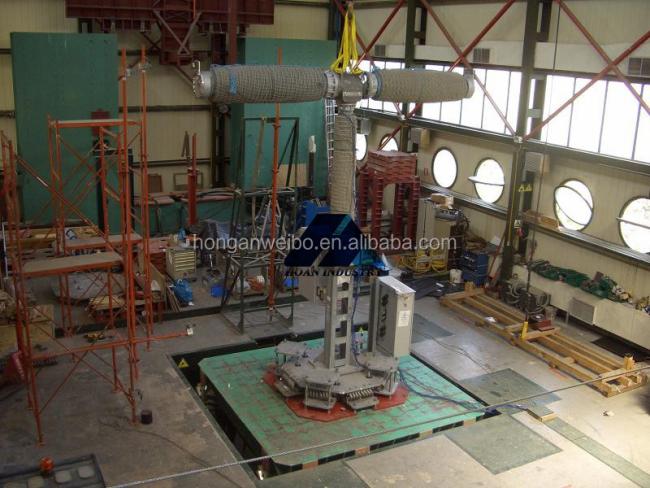

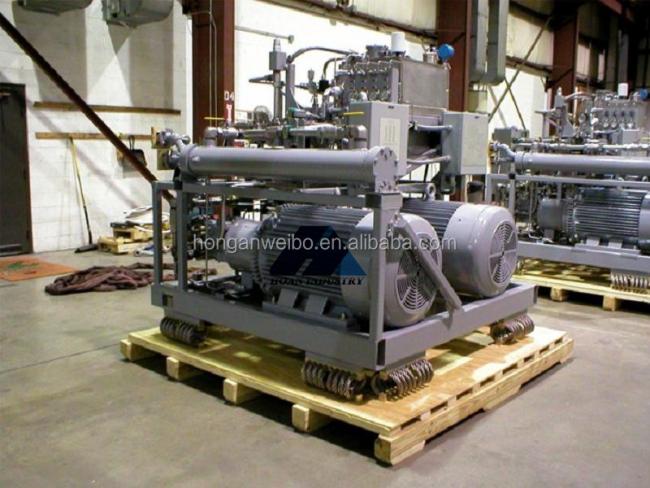

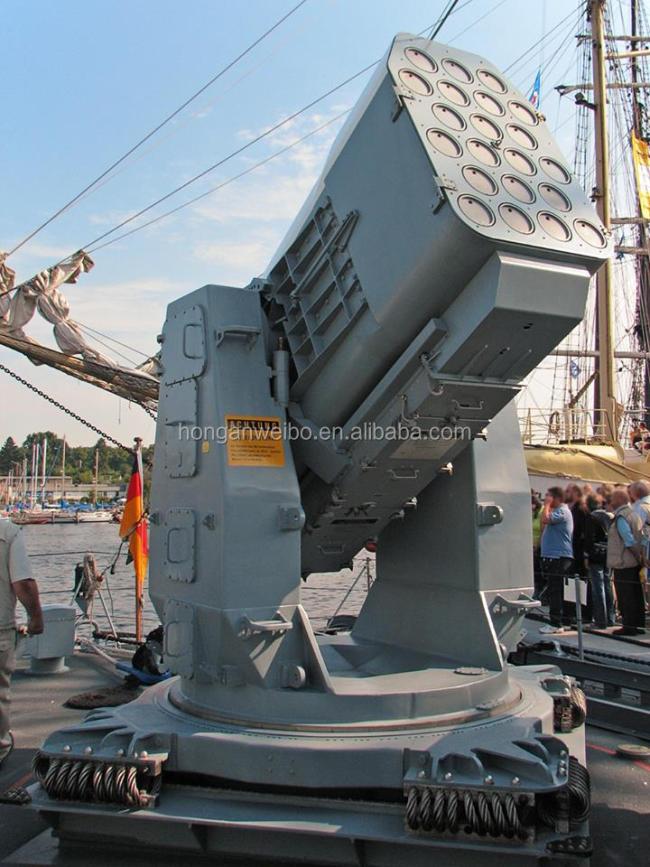

Applications include armored cars, missiles, launchers, highway transportation, marine vessels, shipbuilding, navy equipment, energy systems, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, and various other demanding working conditions.

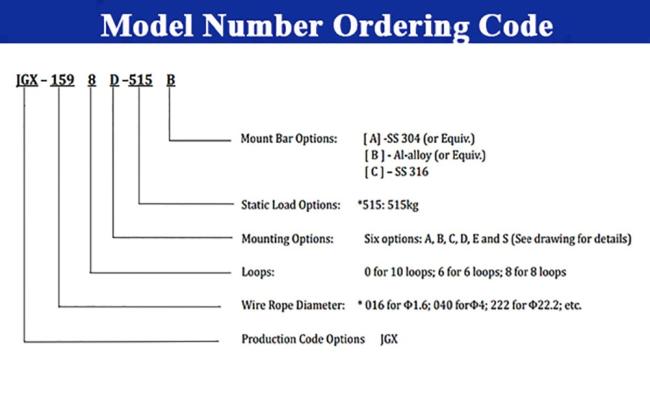

• Model Number Code Ordering:

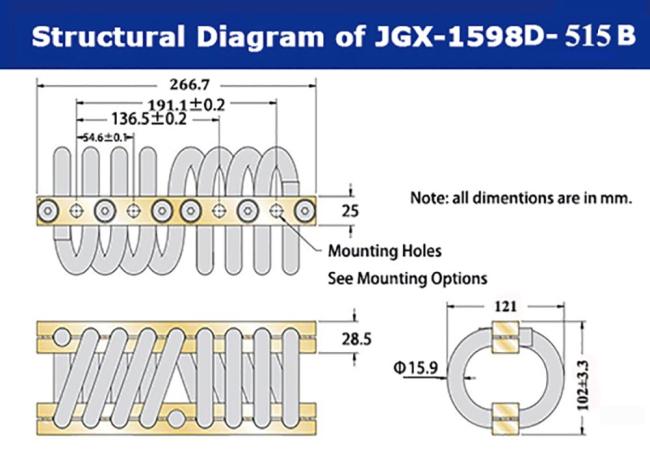

• Structural Diagram:

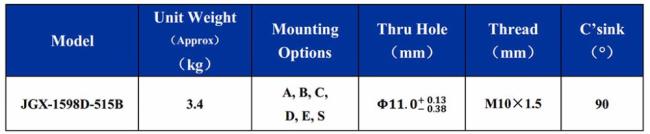

• Dimension:

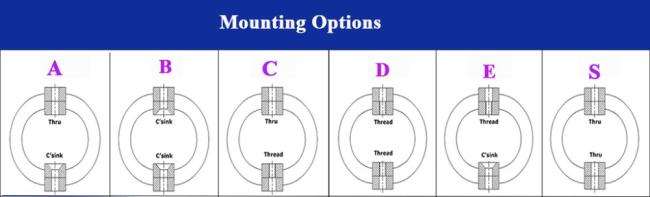

• Mounting Options:

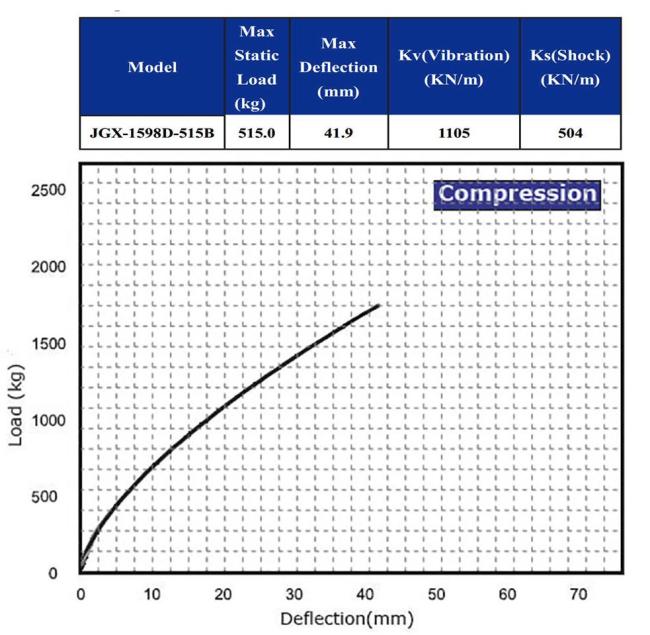

• Compression:

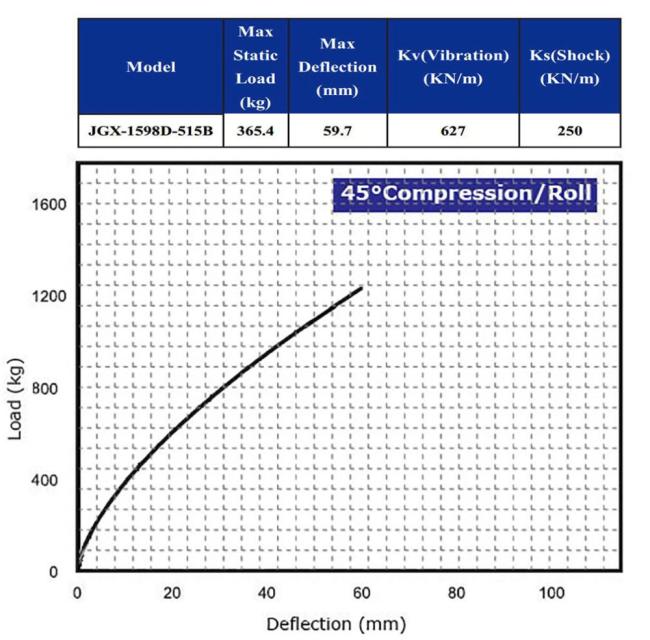

• 45° Compression:

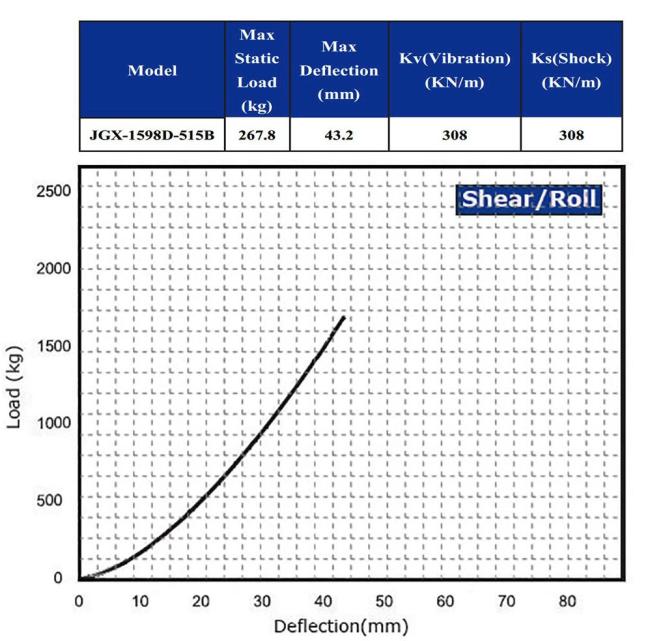

• Shear/Roll:

Stainless Steel or Aluminum can be selected

• White Anodizing: Surface treatment that makes the aluminum surface harder than itself. The color remains the same as the aluminum. This is the standard surface treatment for aluminum mounting bars.
• Hard Anodizing: Surface treatment that makes aluminum mounting bars significantly harder than white anodizing. The color is darker than white anodizing. Special use for complex or demanding working conditions.

• No creep or ageing
• High internal damping
• Very wide temperature range
• Wide variety of possible fittings
• Rapid and economical prototyping
• Extremely rugged construction and long lifespan
• Excellent combined shock and vibration isolation
• Not affected by chemical agents, seawater, ozone, UV rays
