SUS304 6cr19ni10 2mm Thick Stainless Steel Sheet Mirror Finish
SUS304 6cr19ni10 Mirror Stainless Steel Sheets with 2mm Thickness Cold Rolled Plate
Basic Info.
Product Description
SUS304 06Cr19Ni10 Mirror Stainless Steel Sheets With 2mm Thickness Cold Rolled Plate
304 Heat treatment specification and metallographic structure: Heat treatment specification: solid solution 1010 ~ 1150 ºC rapid cooling Metallographic structure: The structure is characterized by austenitic type. Delivery status: Generally, it is delivered in a heat-treated state, and the type of heat treatment is indicated in the contract; if it is not indicated, it will be delivered in a non-heat-treated state.
|
Material
|
200 300 400 Series stainless steel
|
|
Grade
|
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
|
|
Standard
|
AISI ASTM JIS DIN EN BS
|
|
Tech
|
cold rolled / hot rolled
|
|
Thickness
|
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer's request: 16-150mm Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 As per customer's request: 4.0/5.0/6.0 |
|
Width&Length
|
1000mm-6000mm, or as per customer's request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft) 1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft) 1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft) Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft) 1500*3000mm (5*10ft) 1800 available 2000 available |
|
Place of Origin
|
Jiangsu China
|
|
Processing Service
|
Bending, Welding, Recoiling, Punching, Cutting
|
|
Tolerance
|
±1%
|
|
Surface Treatment
|
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
|
|
Payment
|
T/T terms, 30% pre-payment, 70% balance see B/L copy
|
|
Delivery Time
|
5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request
|
|

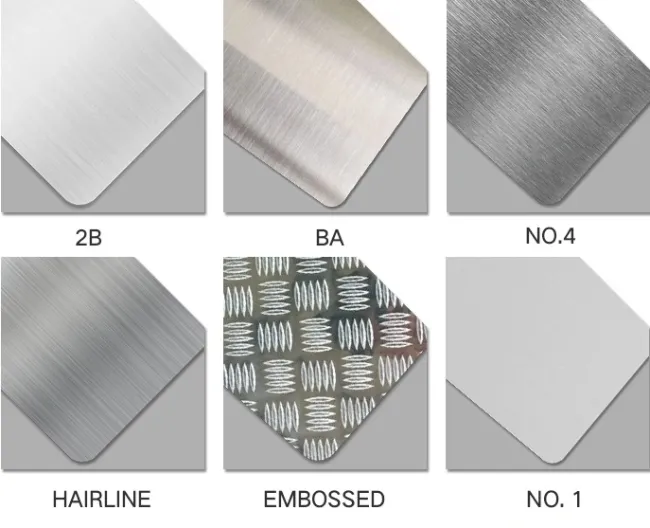

Surface Finish
|
Definition
|
Application
|
|
|
2B
|
Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface.
|
With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk
containers ,tableware and so on. |
|
|
BA
|
Bright heat treatment after cold rolling.
|
Structual members .etc.kitchen utensil ,cutlery ,eleltric applicances ,medical instruments ,building decorations ,etc.
|
|
|
NO.3/NO.4
|
Polished with No.150-240 abrasives.
|
Milky food processing equipment , medicalinstruments ,building decorations.
|
|
|
HL
|
Finshed by polishing with abrasives of suitable grain size to obtain continuous streaks.
|
Building decorations ,such as elevators ,escalators ,door etc.
|
|
|
6K/8K
|
A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all gritlines are removed.
|
Buliding entrances,bulkding column casting ,elevator's wall doors ,counters,sculptures etc.
|
|
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-13.0 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 314 | ≤0.25 | ≤1.5-3.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 19.0-22.0 | 23.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 347 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.03 | 9.0-13.0 | 17.0-19.0 | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 420 | ≤0.16-0.25 | ≤1.0 | ≤1.0 | ≤0.040 | ≤ 0.03 | - | 12.0-14.0 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 23.0-28.0 | 19.0-23.0 | - |
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,27MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS
Q: What are the details of your after sales service?
A:1) We provide the necessary technical support to all of our customers, such as material performance and heat treatment data advice.
2) We provide the appropriate steel material technical parameters for customers in Germany, The USA, Japan, Britain, and other countries.
Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
