API Oilfield Fishing Tool External Hook For Drilling Tubing And Casing
Product Description:
Hook salvage tools are mainly used to salvage cables that have fallen off in the well, wire ropes that have fallen into the well, and other rope and cable objects. Hook salvage tools mainly include internal hooks, external hooks, internal and external combined hooks, single-tooth hooks, multi-tooth hooks, and movable-tooth hooks.
The basic structure of the External Hooks sold by our company consists of a joint, a hook body, and a hook tip. The hook body is inserted into the rope or cable to scrape the rope or cable, and the drill string is rotated to form a entanglement to achieve salvage.
At Huichi petro, we specialize in the manufacturing of high-quality external and internal hooks for the oil and gas industry. We offer a wide range of standard specifications and also provide customized solutions to meet specific customer requirements. Huichi petro's external and internal hooks are competitively priced, offering excellent value for money without compromising on quality.
How to use the external hooks produced and sold by our company Huichi Petro:
1. The hook should be firm, and the pins for the movable tooth hooks should meet the requirements;
2. When the tool is put into the well and 1-2m above the fish, record the hanging weight of the pipe string;
3. Slowly lower the pipe string to insert the hook into the fish, and rotate the drill string at the same time. Note that the hanging weight should not drop more than 20kN;
4. When the hanging weight rises, it means that the fish has been hooked, otherwise repeat the insertion and rotation until it is caught;
5. Be careful not to lift it too fast or too hard;
6. A safety joint must be connected above the hook.
Product Features:
1.Designed and manufactured according to API 7-1;
2.It generally used inside casings and oil tubing;
3.It can salvage the ropes, lifting bails, hollow short cylinders, and short rope slings;
4.The structure is simpler than the internal hook.

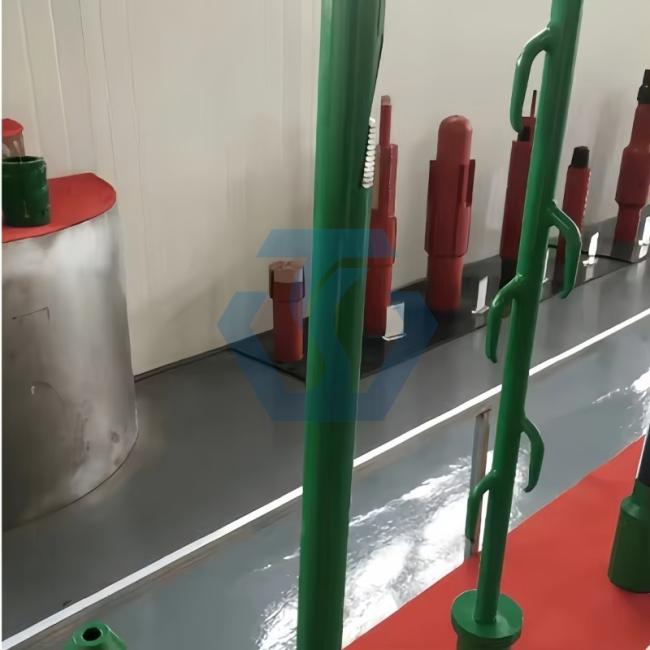

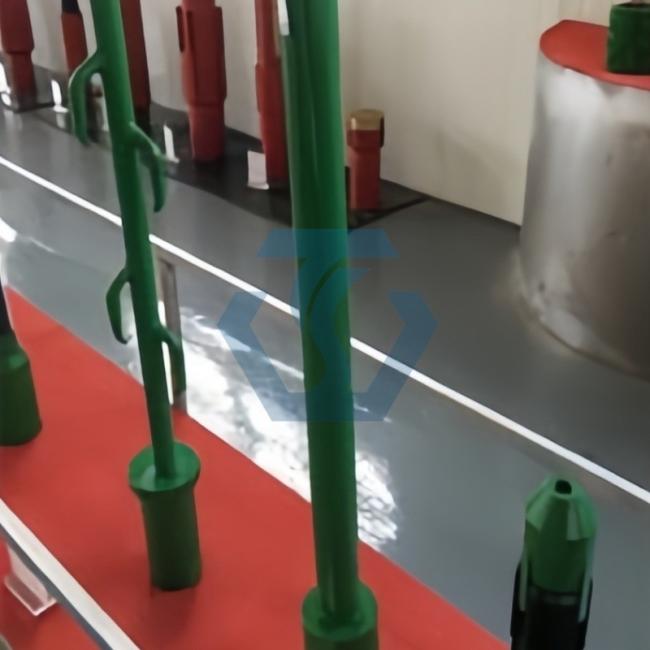

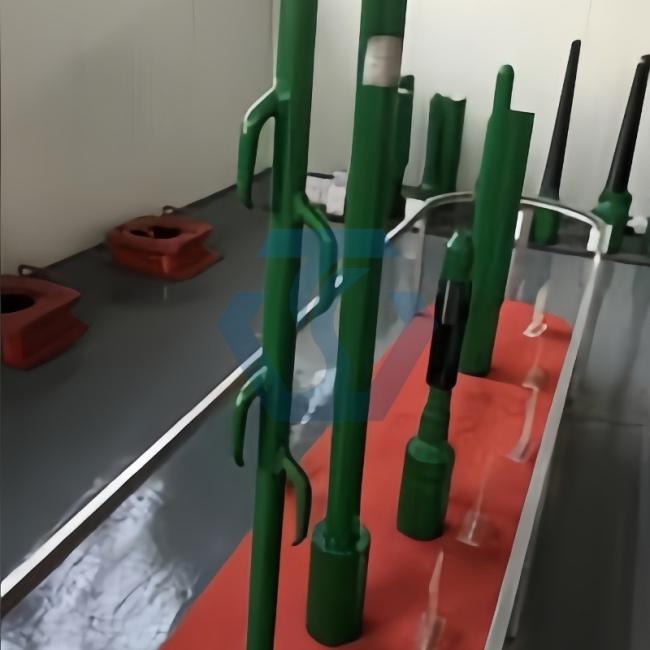

Product Display:
Product Application:
Oilfield Well Drilling , Energy , Mining.
Product Model Parameters:
| Model | Product Code | O.D.(in) | Connection | For Casing/Tubing Size(in) |
| WG73 | L23-7300 | 2-7/8 | 2-3/8 Tubing coupling | 3-1/2 Tubing |
| WG95 | L23-9500 | 3-3/4 | NC26 | 4-1/2 Tubing |
| WG114 | L23-11400 | 4-1/2 | NC31 | 5-1/2 Casing |
| WG136 | L23-13600 | 5-3/8 | NC31 | 6-5/8 Casing |
| WG150 | L23-15000 | 5-8/9 | NC38 | 7 Casing |
| WG176 | L23-17600 | 6-8/9 | NC38 | 8-5/8 Casing |
| WG190 | L23-19000 | 7-1/2 | NC38 | 9-5/8 Casing |
Product Package:
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
Product Detection:
100% tested before delivery.
Product Delivery Method:
Express, truck , train , air , sea , or customized according to customer requirements.
